VJ-1324 OPERATION MANUAL Before using
3.4 Loading media 57

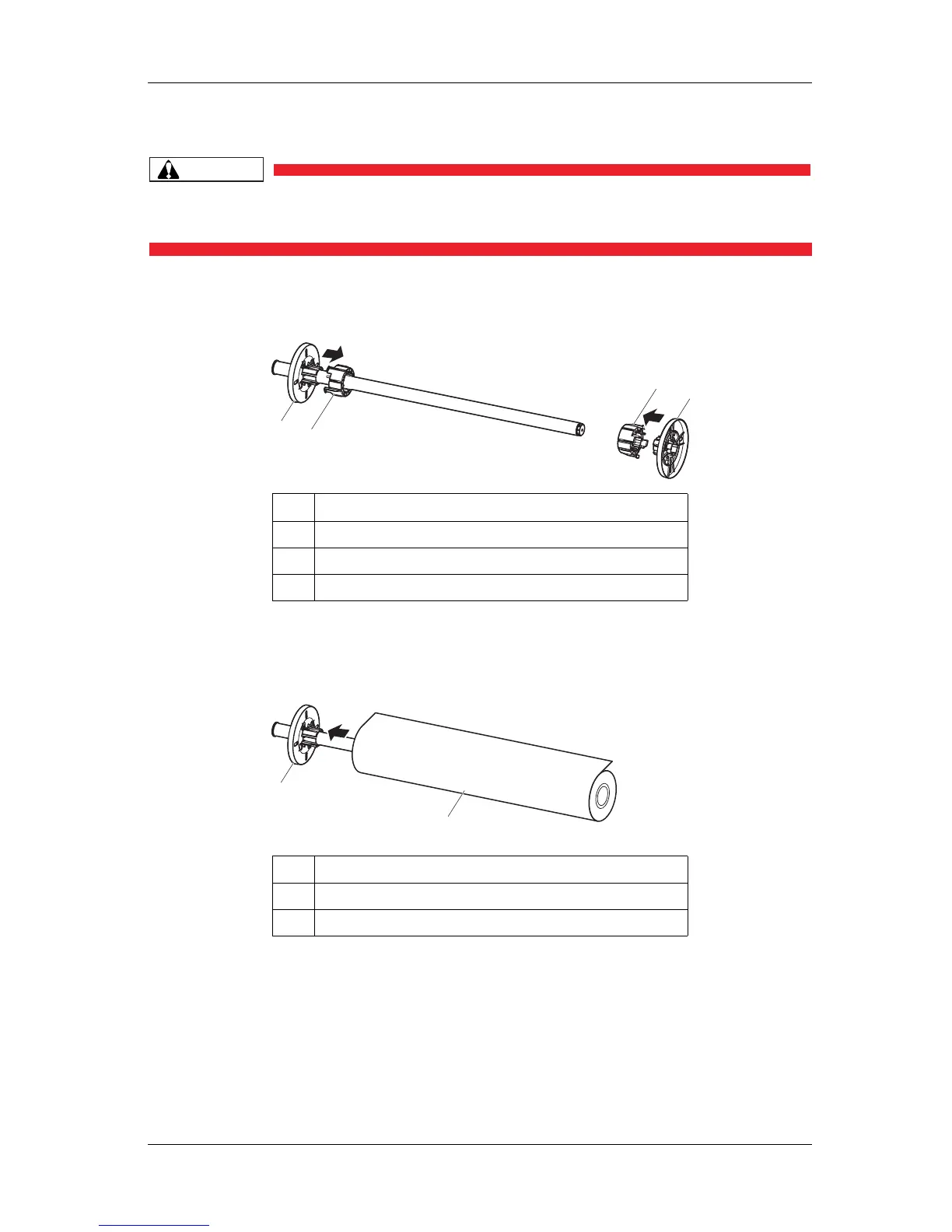

Follow the procedure below to load the roll media.
CAUTION
• When loading the roll media, place it on a flat surface such as a desk.
If the roll media is loaded with the scroller up, the scroller may be damaged.
1. When using the roll media with the media tube width of two inches, remove the attachments for
three-inch media from the movable media stopper and fixed media stopper.
2. To set the roll media on the scroller, make sure that the paper is rolled counter-clockwise when seen
from the fixed media stopper.
3. Insert the roll media all the way till its core touches the right edge of the fixed media stopper.
No. Name
1 Movable media stopper
2 Fixed media stopper
3 Attachments for three-inch media
No. Name
1 Fixed media stopper
2 Roll media
2
3
3
1
1
2
