NOTE
If one time of head cleaning was not enough to re-
move blurred or missing parts in the check pat-
tern, perform powerful cleaning.
If those problems above were not improved after
a few times of head cleaning, refer to the follow-
ing, and perform required procedures.
Operation Manual "7 Troubleshooting"
TIP
Quick Reference and Operation Manual are con-
tained in the same CD-ROM.
Quick Reference is in PDF format. Adobe Acro-
bat Reader 5.0 or above is required to view it.
Adobe Reader is available for free download at
Adobe's website.
The Operation Manual of this product is created
with the HTML format and can be viewed using
browsers such as Internet Explorer.

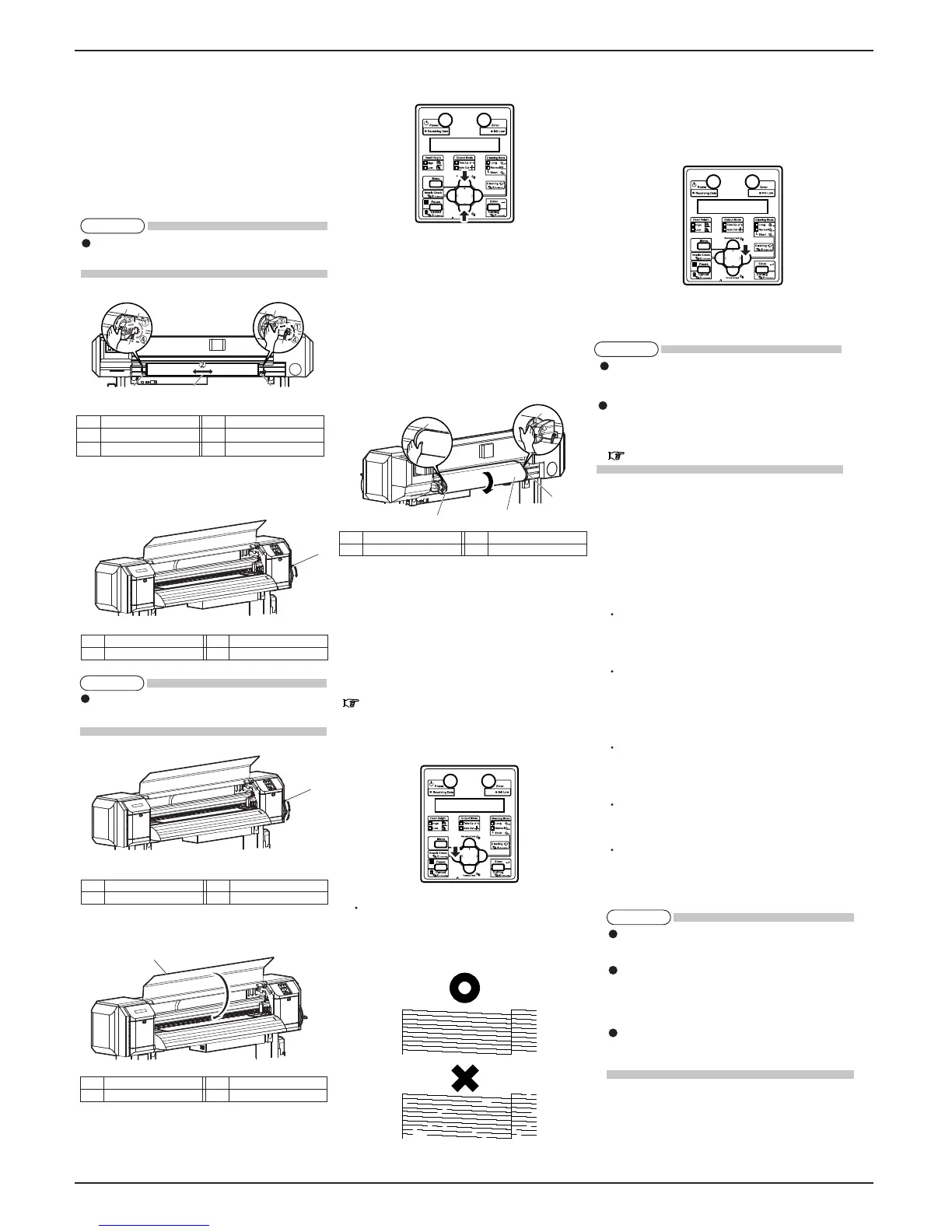

VJ-1624 INSTALLATION MANUAL
VJ1624E-I-00 10
1
1
1
12.If the distance between the edge of the roll media and
the pressurizing roller is less than 5 mm, follow
the procedure below to adjust the position of the
roll media.
a.Loosen the fixing levers of the right and left roll
media holders, and move the roll media to the
right or left.
b. After moving the roll media, tighten the fixing
levers.
13.Lower the media loading lever.
14.Close the front cover.
・"User: TypeXX" (XX is a number between 1 and
30) is displayed on the operation panel.
15.Press the [+] key or [-] key to select the user type
setting.
16Press the [Enter] key on the operation panel.
・The user type setting is set.
・"Media initial" is displayed on the operation panel
and media initialization starts.
・After media initial operation is complete, "Ready to
Print" is displayed on the operation panel and the dis-
play shifts to Normal.
17. Wind back the roll media with the scroller to remove
a media bend.
・Media set is complete.
11
Checking printing conditions
Check the condition of the print head after the ink re-
plenishment.
1.Turn ON the printer and load the roll media.
10Loading the roll media
2.Confirm that the printer functions normally.
3.Press the [<] key on the operation panel for two
seconds or more.
Nozzle check printing starts.
4.Check the sample print for blurred or missing
parts in the check pattern.
5.If the nozzle check result indicates that there is a
problem such as mentioned above in the check pat
tern, clean the head.
・Press and hold the [>] key on the operation
panel for two seconds or more.
・"Cleaning **%" is displayed on the operation panel.
6.Head cleaning starts.
7. Perform nozzle check again and check the condi-
tion of the print head.
12Manual composition
This product includes the following three manuals.
Installation Manual (this manual)
This manual explains the procedures of unpack
ing, installing, and the basic set up.
Using a Manual CD-ROM
This manual explains the procedures of viewing
Quick Reference and Operation Manual which are
contained in the CD-ROM.
Product Activation Guide
This manual explains the procedures when the
printer starts up first time.
Quick Reference(CD-ROM)
Quick Reference is excerpts of functions used daily.
Operation Manual (CD-ROM)
The Operation Manual explains the basic installat
ion, daily use and applicable functions.
No. Name
1 Media loading lever
NOTE
When applying pressure on the media, lower the
media loading lever further.
No. Name
1 Media loading lever
No. Name
1 Front cover
No. Name
1 Roll media
No. Name
2 Scroller
3
1
2
4
2
3
11
3
3
4
2
1
2
2
2
NOTE
Be sure to press the roll media holders against the
printer while locking them.
No. Name
1 Roll media holder (Left)
2 Roll media holder (Right)
No. Name
3 Roll media
4 Fixing levers
To Next Page
