Installation Manual

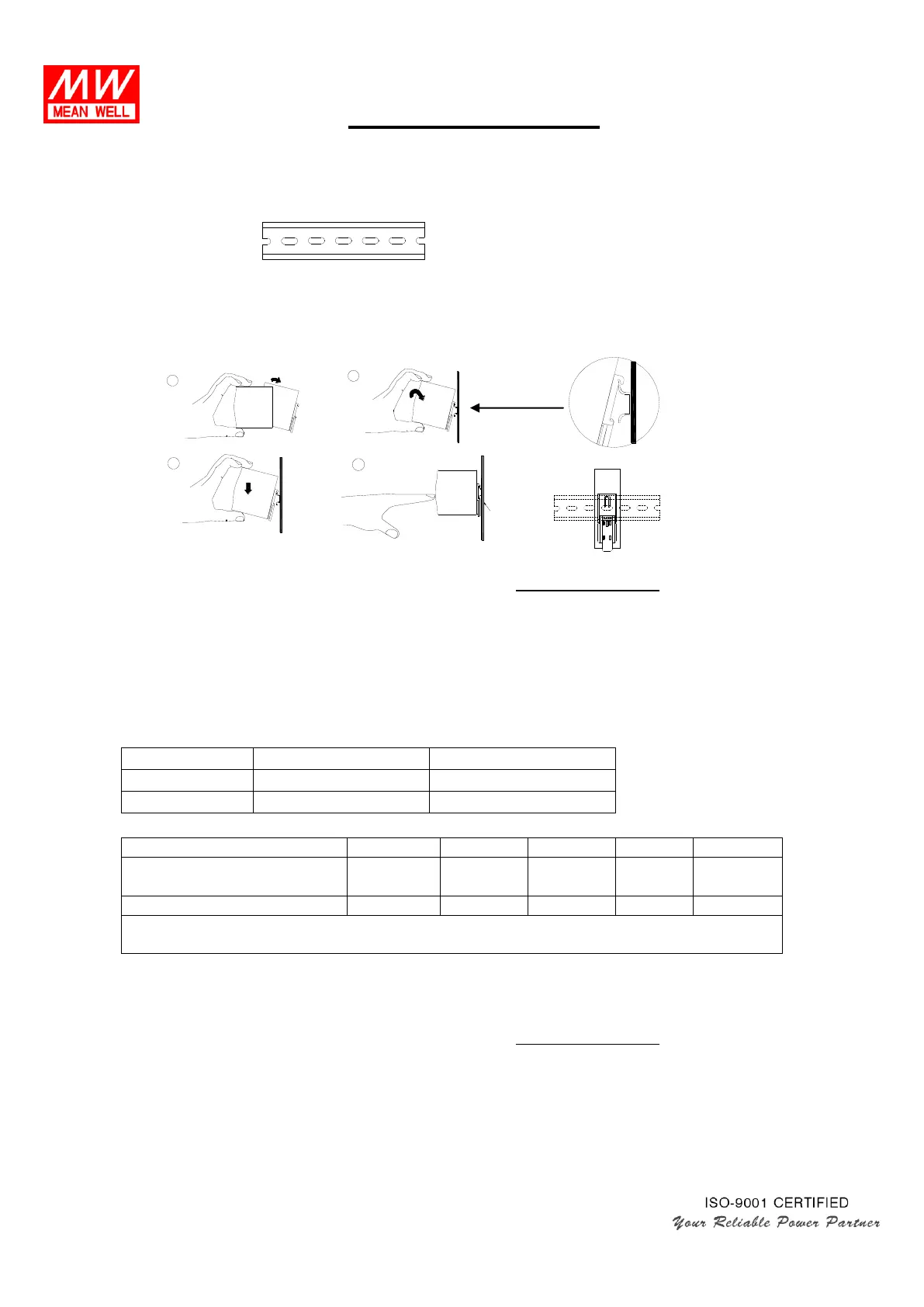

（8）Mounting Instruction：
Mount as shown in figure only, with input terminals down, or else sufficient cooling will not be possible.
Admissible DIN rail：TS35/7.5 or TS35/15
For rail fastening：
（a）Tilt the unit slightly rearwards.
（b）Fit the unit over top hat rail.
（c）Slide it downward until it hits the stop.
（d）Press against the bottom for locking.
（e）Shake the unit slightly to check the locking action.
（9）For other information about the products, please refer to www.meanwell.com for details.
ICL-L：
（1）Before any installation or maintenance work, please disconnect your system from the utility.
Ensure that it can’t be re-connected inadvertently!
（2）Ventilation holes must be kept free from any obstructions. Also a 10-15 cm clearance must be kept when the
adjacent device is a heat source.
（3）The recommended torque setting for terminals is shown as below.
（4）Use copper wire only, and recommended wires are shown as below.
Rated Current of Equipment
(Amp)
Cross-section of Lead(mm
2
)
Note：Current each wire carries should be de-rated to 80% of the current suggested above
when using 4-6 wires connected to the unit.
Make sure that all strands of each stranded wire enter the terminal connection and the screw terminals are
securely fixed to prevent poor contact. If the power supply possesses multi-output terminals, please make sure
each contact is connected to wires to prevent too much current stress on a single contact.
（5）For other information about the products, please refer to www.meanwell.com for details.
