my-PV AC-THOR User Manual

AC•THOR
®
/ AC•THOR
®
9s Operating instructions, version a0020806 20
Data my-PV
temperature sensor
Current power output

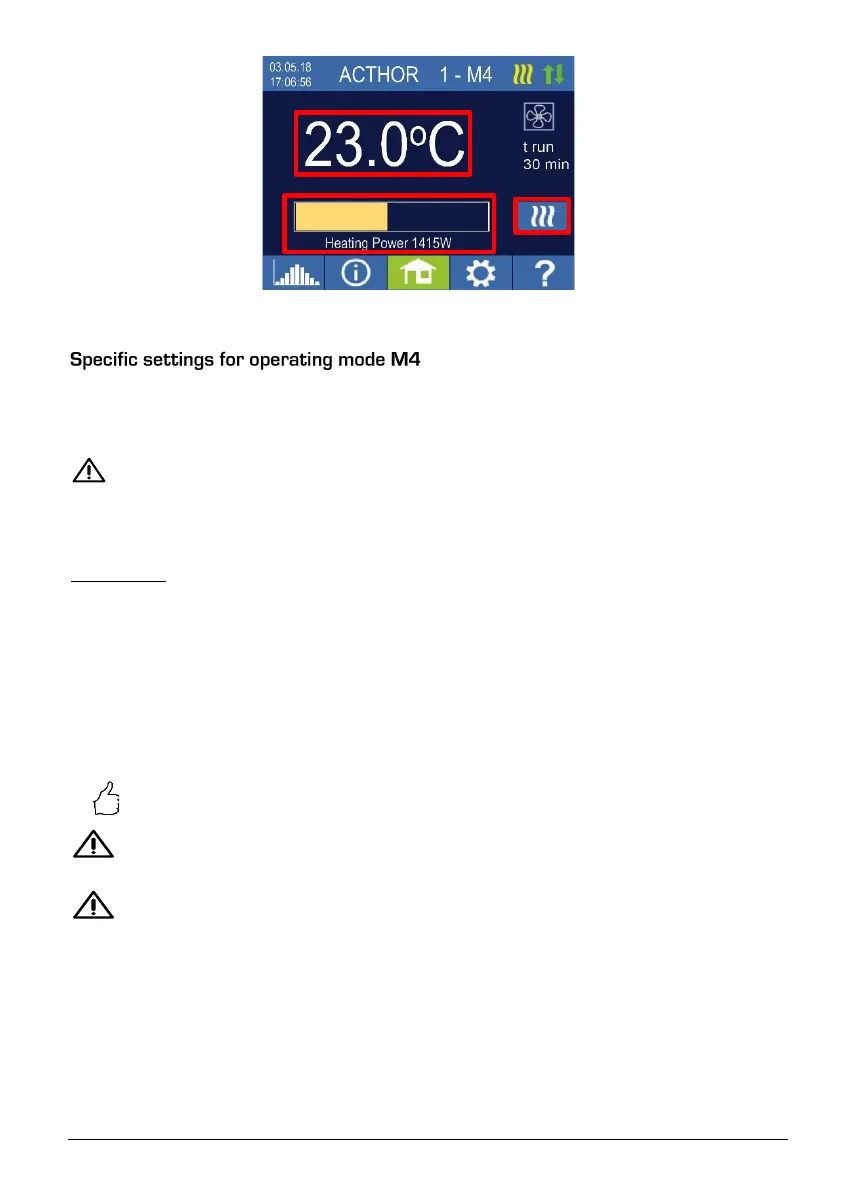

Homescreen
Time period and time
counter value of the HP
control
Single-Boost
Starts a once-only boost
backup mode
(Button appears only when
the relay output is activated)
Hot water 1 temperatures
Adjustable is the maximum permitted temperature to be reached at the my-PV temperature sensor
(factory setting = 60 °C). This has nothing to do with a bimetal thermostat which may be installed!
If the cut out temperature of an immersion heating element with a bimetal thermostat is set
too low, the AC•THOR may possibly be unable to reach the desired temperature!
If the optional automatic temperature boost backup with relay output has been selected, a minimum
temperature can then be set (factory setting 50 °C).
Relay output:
The AC•THOR can also maintain the minimum temperature at the my-PV temperature sensor by
enabling the heat-pump.
Hot water 1 min switching times
This setting can be selected when the relay output is selected under "Hot water 1 temperatures".
There are two time windows available to maintain the minimum temperature on the my-PV
temperature sensor. Start and finish can each be defined at full hours. Factory settings suggest
switching times of 5 to 11 pm and 5 to 7 am.
TIP: Restrict the times when the minimum temperature has to be maintained to
mornings and evenings, to increase your own PV consumption through the day!
Start hour and stop hour refer to the same calendar day. If a time window is defined over
midnight, hot water backup will not start!
If the adjusted start-hour is after the stop-hour, hot water backup will not start!
Hot water 1 min weekdays
This setting can be selected when the relay output is selected under "Hot water 1 temperatures".
You can select the weekdays on which the minimum temperature has to be maintained. In the
factory settings, all weekdays are activated.
Legionella program
For ensuring drinking water hygiene, a period can be specified by the end of which a set minimum
temperature must again be reached after the last time it was reached. The number of days in this
period can be set between 1 and 14. A time at which the legionella program is to start can also be

my-PV AC-THOR Specifications

General

Power Range	0-3 kW
Input Voltage	230 V
Frequency	50/60 Hz
Category	Controller
Operating Temperature	-25°C to +60°C
Communication	Ethernet, Modbus
Phases	1-phase
Output Power	0-3 kW
Type	AC-THOR
