my-PV AC-THOR User Manual

AC•THOR
®
/ AC•THOR
®
9s Operating instructions, version a0020806 30

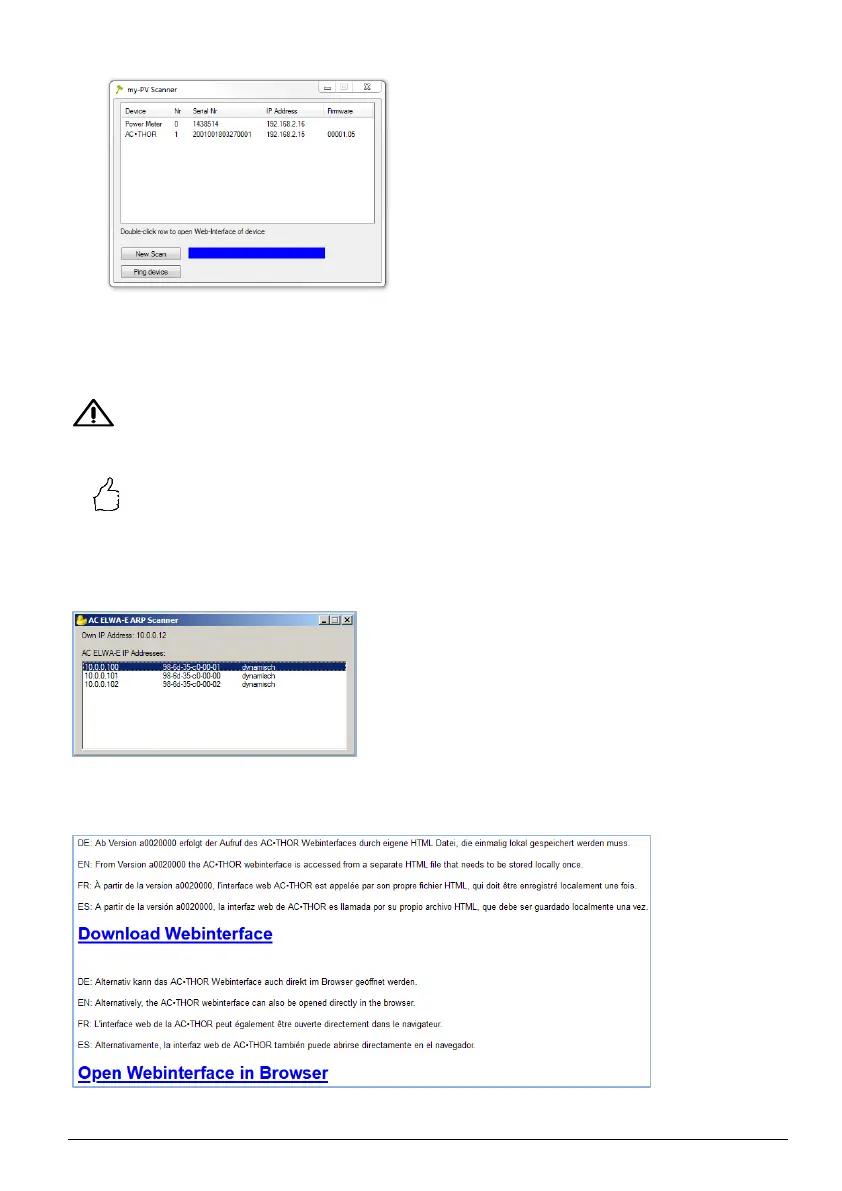

scanner program into a local directory.
2. If there are several my-PV devices in the network, the unit to be configured can be identified
by the serial number (for AC•THOR see type plate on the back of the unit).
3. The web interface opens by double clicking on the respective search result.
From firmware version a0020000 onwards, the required HTML file is downloaded from the
Internet and stored in the same directory as the scanner program.
Scanning is performed via UDP port 16124. Firewalls (or specific router settings) may prevent
the AC•THOR from being found.
TIP: You will also find the IP address of the AC•THOR on the display or in the DHCP
list in the router!
Alternatively, the second scan program "Scan AC ELWA-E ARP.exe" can be used, which sends an
ARP query to the router and displays the connected my-PV devices. Since the router takes some
time to update the ARP table it may be that the ARP scan takes some time to show AC ELWA-E
results.
From firmware version a0020000 onwards, the Web-Interface of AC•THOR is outsourced to an
external HTML file. If the device is accessed directly via the IP address in the web browser, this view
appears.

my-PV AC-THOR Specifications

General

Power Range	0-3 kW
Input Voltage	230 V
Frequency	50/60 Hz
Category	Controller
Operating Temperature	-25°C to +60°C
Communication	Ethernet, Modbus
Phases	1-phase
Output Power	0-3 kW
Type	AC-THOR
