Myron L RPR - Page 2

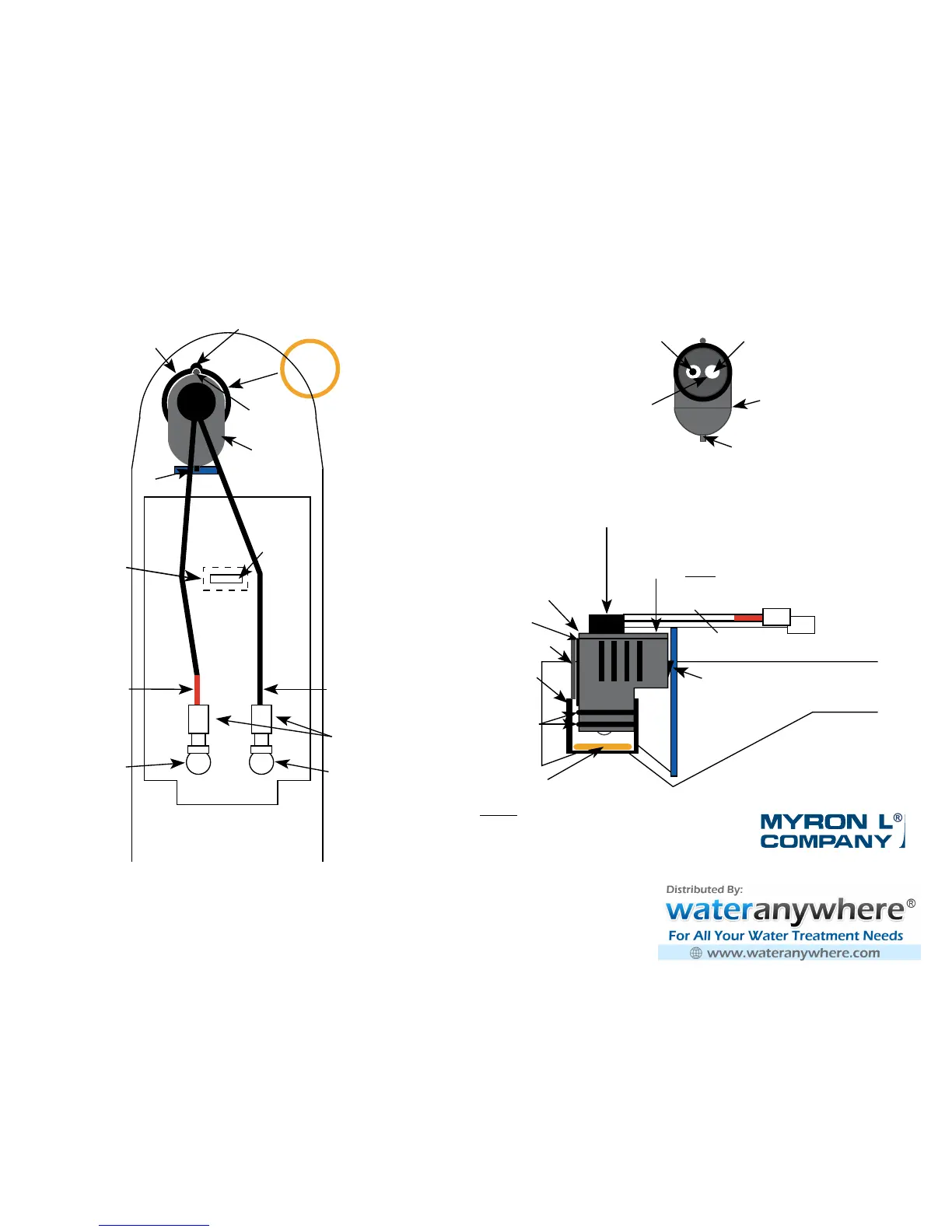

TOP VIEW
ORP
Electrode
pH Glass
Electrode
Sensor
Body
Locking Tab
Reference
Junction
under
Glass Bulb
A
Alignment Guide
pH
ORP
Red
Cable
Locking Tab
pH/ORP Sensor Body
Black
Cable
UM:
Center
Connector
(RS-232)
Connectors
B
Sensor Well
Install ORANGE
O-ring in Sensor
Well before
installing
sensor.
INTERIOR VIEW
C
Connectors
Sensor
Body
ORP
pH
ORANGE
Sensor Well
O-ring Seal is
installed below
the sensor
Locking Tab
Sensor Well
SIDE VIEW
Cut-Away
Alignment Guide
Circuit
Board
uDock
Capable
P
OOLPRO or
UMII:
IR
Transmitter
(do not
obstruct)
O-ring
Seals (2)
 Align sensor rib with alignment guide (notch) in case.
 Move cables aside and press
here to Snap in place.
pH/ORP SENSOR
Model RPR
Sensor Rib
Sensor Rib

W
ater Quality Instrumentatio
n
