Instruction for steel frame

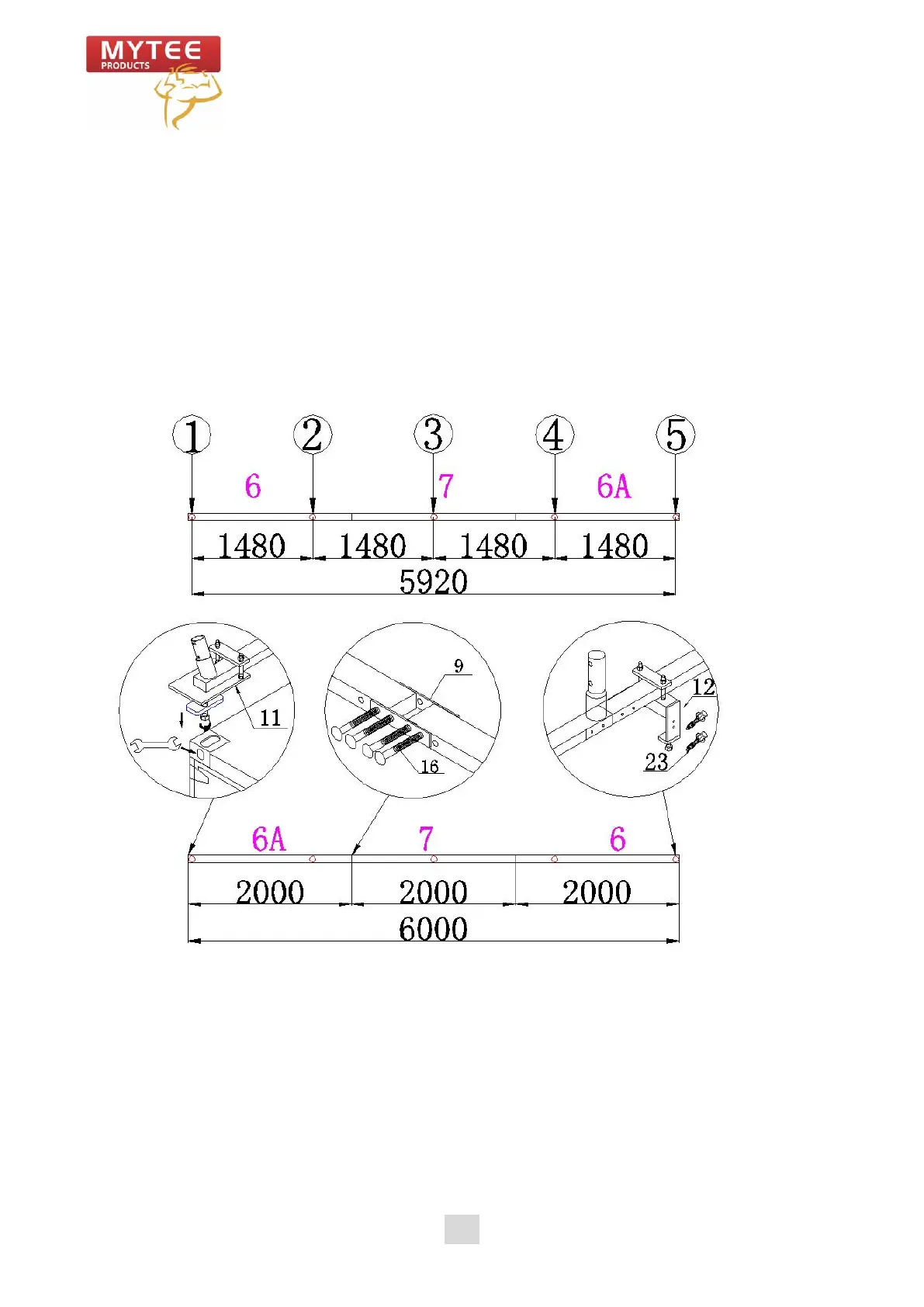

1. Connect the square steel tube base rails No.6, No.7, No.6A on left and right container roofs.
Using the connection plates #9 with bolt M12x100 with #16 with 2pcs WASHERS.
Two kinds of methods to fix base rails as the below drawings for option:
Option A: Using base rail clamps No.12 with tech screws No.23 to fix the square tube rails to the
top of container without any welding works as the below figure, the two ends of base rails is fixed
to the casting corners of container with No.11 corner clamps.
Option B: The two ends of base rails is fixed to the casting corners of container with No.11
corner clamps.Welding angle seat No.10 to fix the square tube rails on the top of container.
