Instructions for troubleshooting:

Problem

Possible cause

Solution

Engine fails to start

---

Consult the operation

manual of engine

Machine runs unstably

---

Consult the operation

manual of engine

Abnormal vibration

Screw loose

Turn oﬀ the engine and

screw down the bolts

Damaged

Turn oﬀ the engine and

replace the impeller

Blade can not rotate and

work

Pull wire loose

Screw down the pull wire

Pull wire damaged

Replace the pull wire

Friction lining of clutch

damaged

Replace the friction lining of

clutch

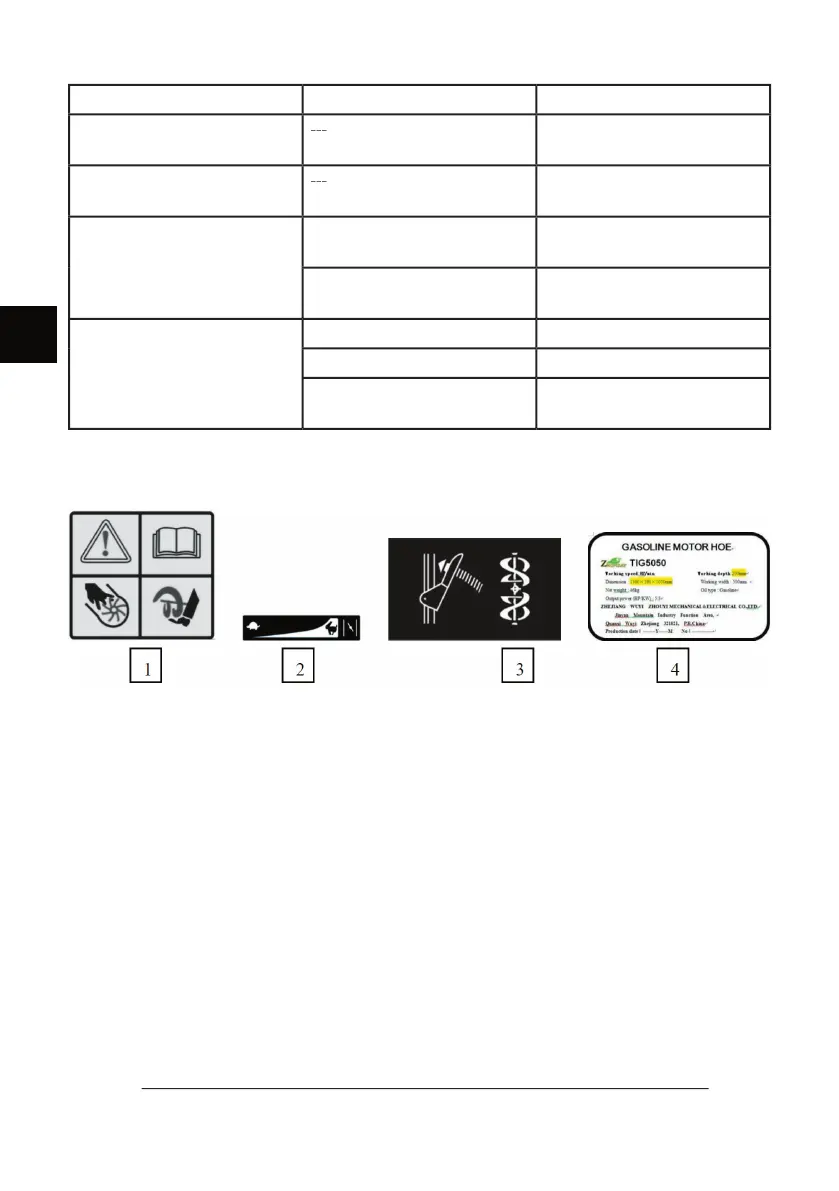

7. Label

1: Safety signs 2: Switch signs 3: Clutch handle sign 4. Nameplate

8. Key Parameters

Model: TIG5050

Engine: 5.0HP/3600rpm perpendicular shaft

Working width: 500 MM

Working depth: 200MM

Cutter head diameter: 350 MM

Cutter head rotating speed: 82 rpm

Dimensions: 1300X590 X 1050
