Compatibility
(1) The E3000 CONTROLLER is compatible with the following overseas safety standard.
・
Safety standard in North America (UL,CSA)
UL508C CSA C22.2 No.14 -05
・
EC Directive
Low Voltage Directive IEC / EN61800-5-1 : 2007
EMC Directive EMS : EN61000-6-2
EMI : EN61000-6-4
(2) The E3000 CONTROLLER is *RoHS Compliant.
*RoHS : Restriction of Hazardous Substances by the European Union (EU).
6 - 3 Outside View
*Below is an outside view with Brackets (Standard Accessory) attached.
Fig. 1 Bottom Mounting Fig. 2 Rear Mounting
88
65
45
86.2
4.5
10
M4x0.7
Stepped Bracket
168
246
138
188
236
138
144
271
251
65
91
45
10
4.5
M4x0.7
Stepped Bracket

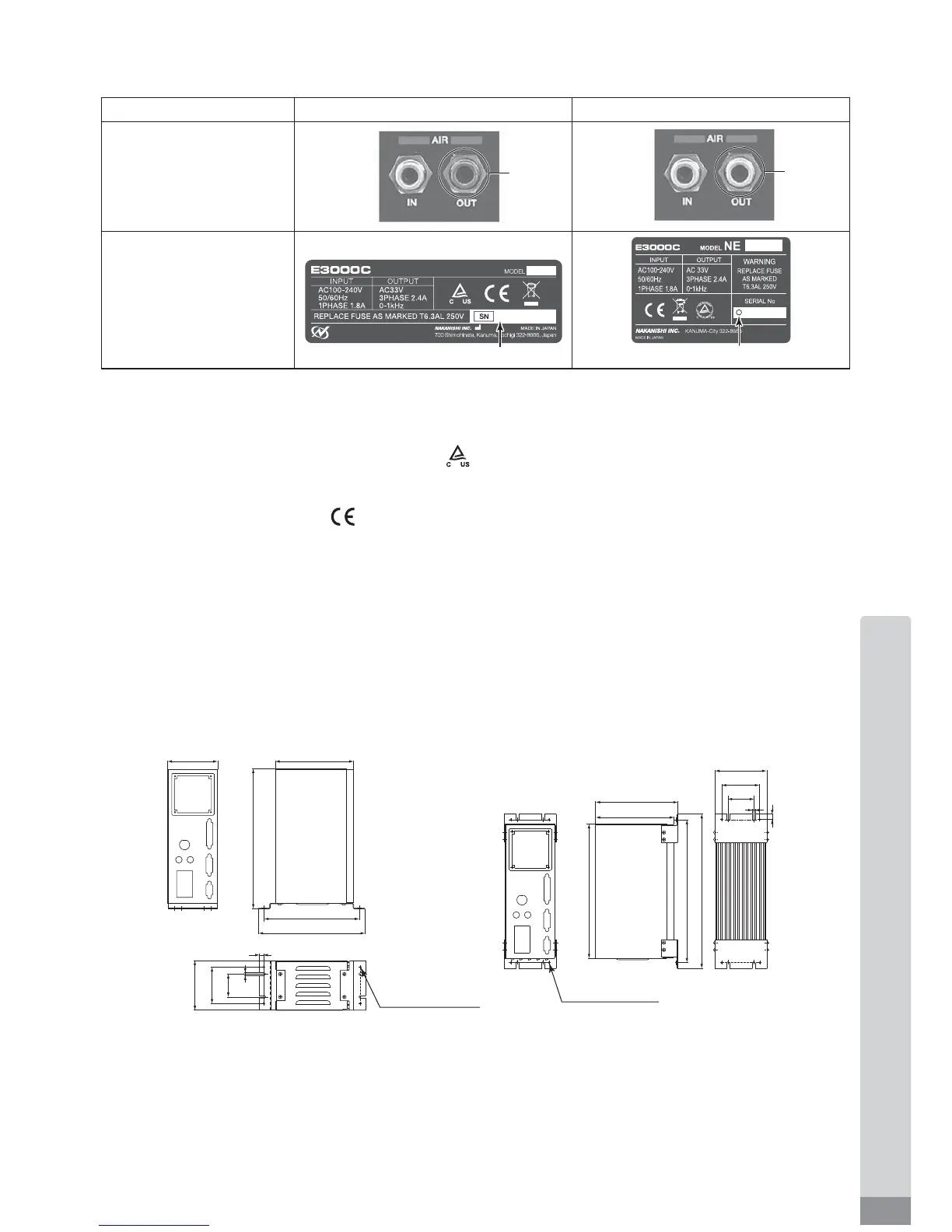

Table. 2 Identifying the Applicable CONTROLLER (EM-3030T-J / EM-3030T-J-2M)
Identifying Point Applicable CONTROLLER Non applicable CONTROLLER
Color of Air Output Joint
First letter of the Serial
No. on the Rating Plate
Blue
White
DXXXXXXX
First letter : " D "
First letter : Other than " D "
XXXXXXX
