Page 78
7-13 Removing the Monitor
Note: The Monitor is heavy, ensure that at least two (2) people are used to
remove the monitor

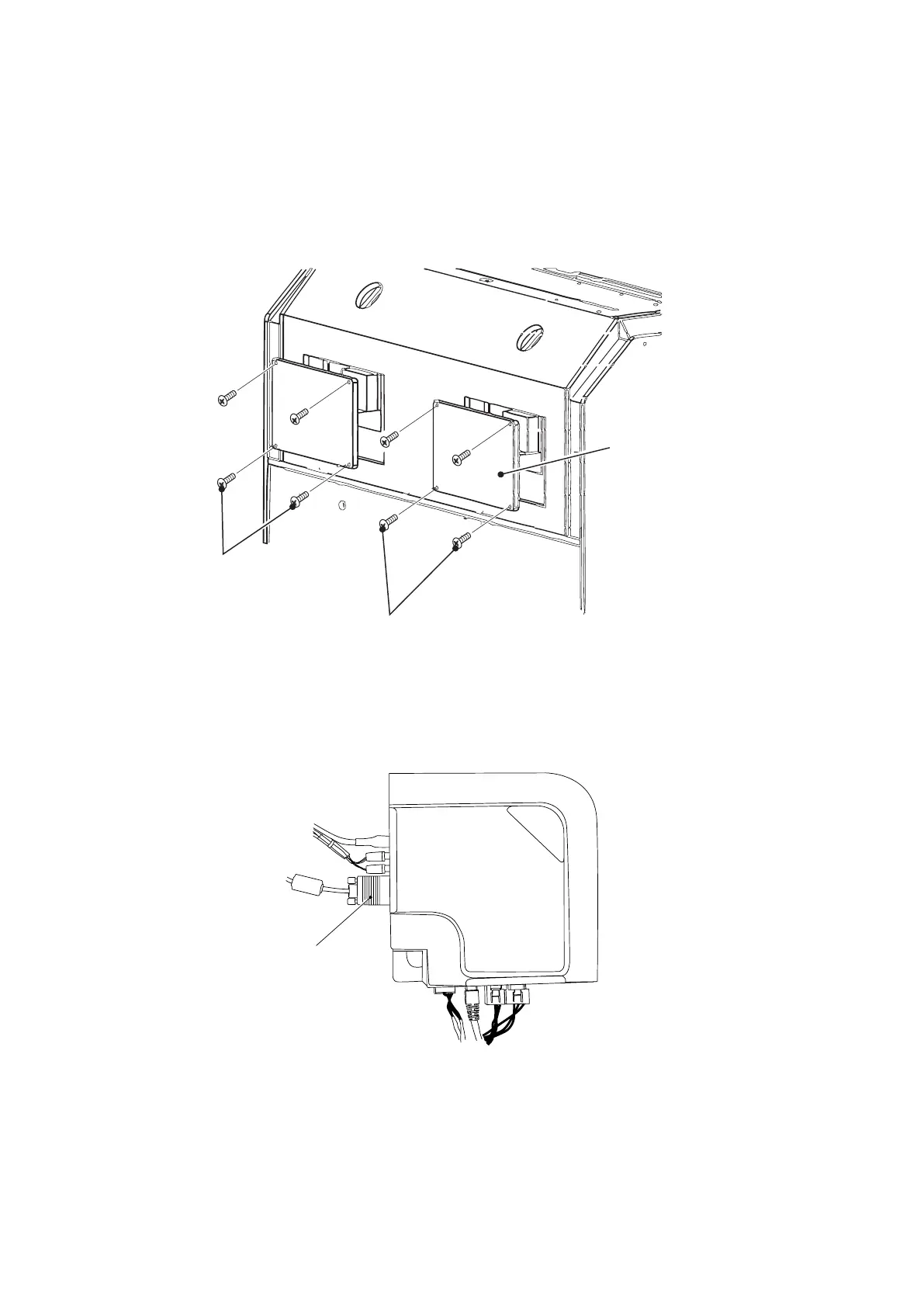

1. Remove 4off pozi head screw (M5x12), and remove the Monitor Rear Panel.
2. Disconnect the monitor connector from the TRIFORCE Game PC Board Assy,
and the monitor power cable located in the bottom of the Monitor Cabinet.
Monitor Rear Panel
Poxi head screw
(M5x25)
Poxi head screw
(M5x25)
Monitor Connector
To Next Page
