National Instruments NI ELVIS III User Manual

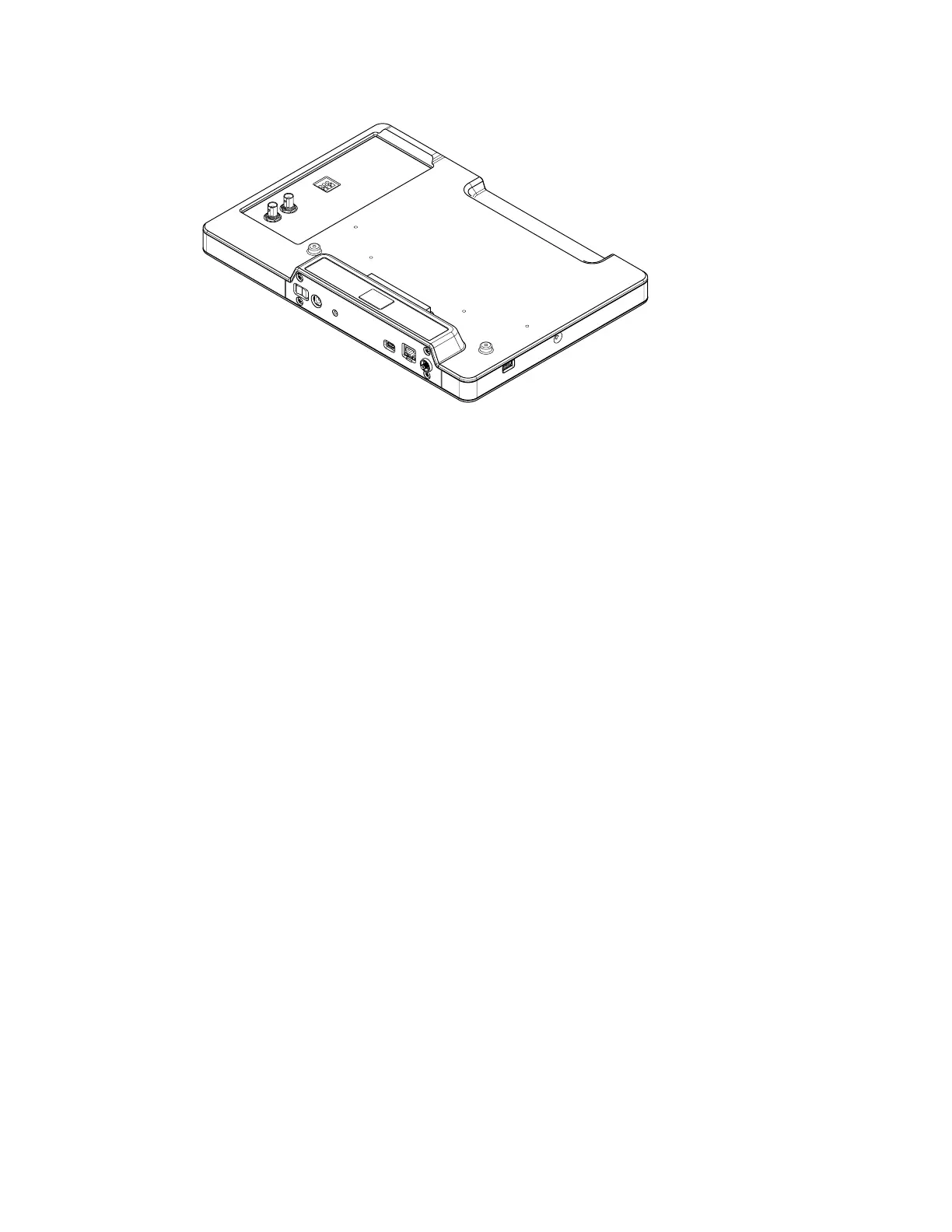

a.
Power supply cable
b.
Device USB cable (required for initial configuration)
c. Ethernet cable (optional connection)
d. Wi-Fi antenna (Wi-Fi models only)
4. Plug the power supply into a wall outlet and switch on the power switch at the
back of the NI ELVIS III workstation.
5.
Ensure that the application board power button on the workstation is turned
o. The integrated LED in the power button should not be lit.
6. Install the NI ELVIS III prototyping board (or compatible application boards) as
shown in the following figure:
ni.com
6
NI ELVIS III Getting Started

National Instruments NI ELVIS III Specifications

General

Brand	National Instruments
Model	NI ELVIS III
Category	Network Hardware
Language	English
