National Instruments RMC-8357

© National Instruments | 2-43
RMC-8357 User Manual
Installing the Chassis into the Rack
Push the inner slides, attached to the chassis, into the grooves of the outer slides in the rack and
slide the RMC-8357 into the rack, as shown in Figure 2-4.
Note The following figure shows an example controller that may differ from
your product.

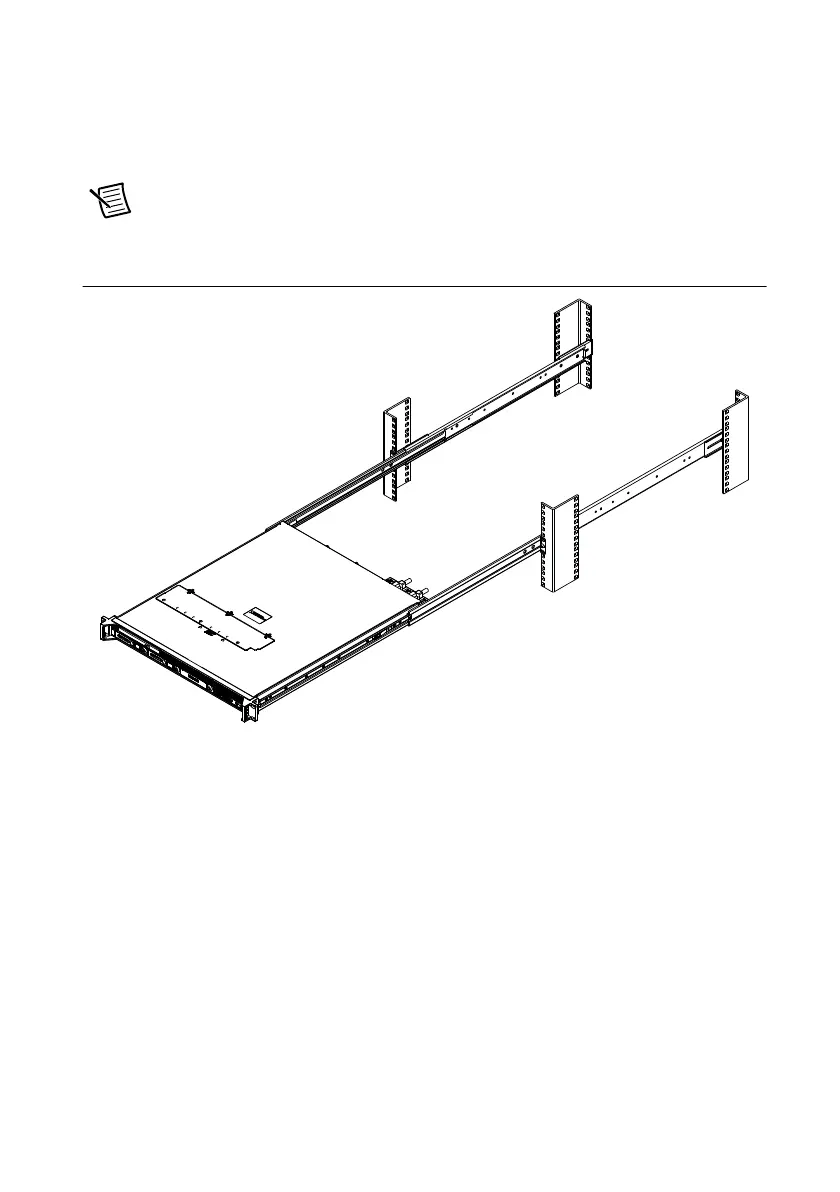

Figure 2-4. Installing RMC-8357 in Rack
