National Instruments RMC-8357 User Manual

3-2 | ni.com
Chapter 3 I/O Information

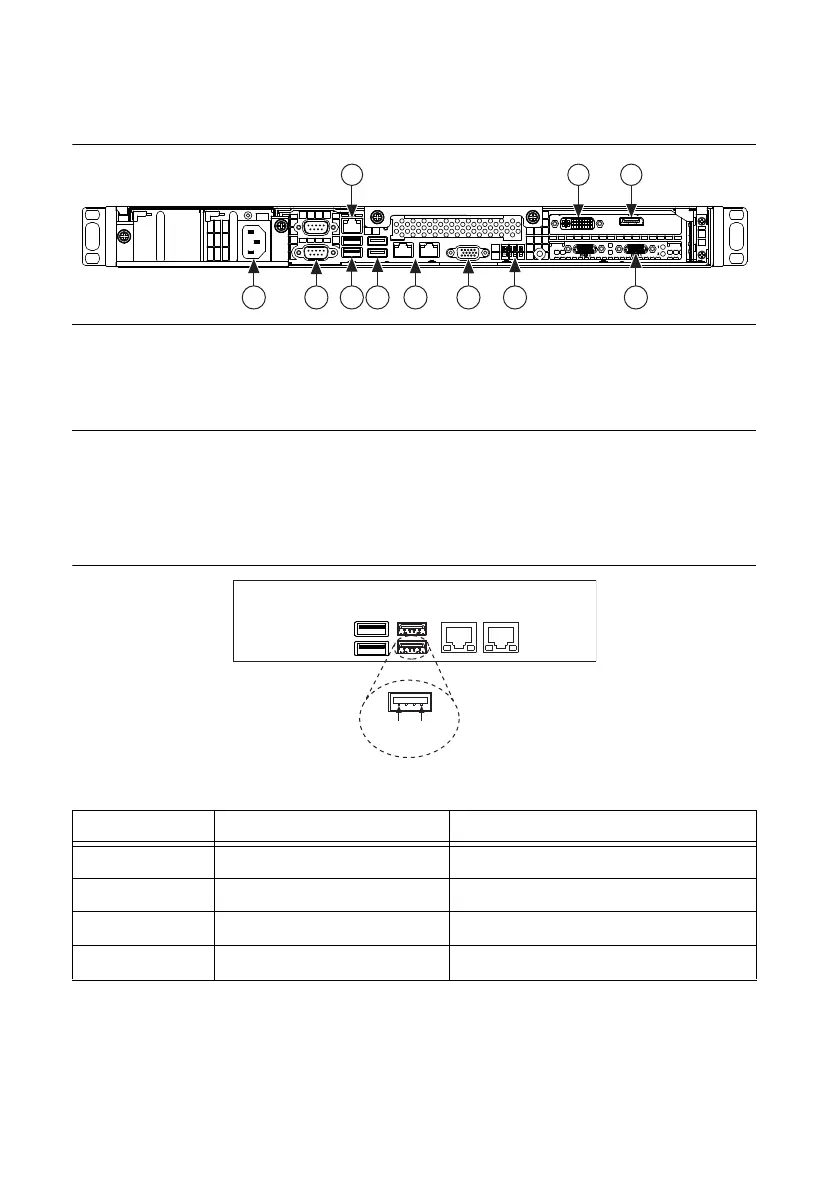

Figure 3-1 shows the rear panel layout of the RMC-8357.
Figure 3-1. Rear Panel of the RMC-8357
Universal Serial Bus
Figure 3-2 shows the location and pinouts for the Universal Serial Bus (USB) connectors on the
RMC-8357. Table 3-3 lists and describes the USB connector signals.
Figure 3-2. USB Connector Location and Pinout
1 IPMI Management Port
2DVI Port
3DisplayPort
4 MXI x1 Ports
5 UID Switch
6 VGA Port (Disabled By Default)
7 LAN Ports
8 USB 3.0 Ports
9 USB 2.0 Ports
10 Serial Ports
11 Power Connector
Table 3-3. USB Connector Signals
Pin Signal Name Signal Description
1 VCC Cable Power (+5 V)
2 -Data USB Data-
3 +Data USB Data+
4 GND Ground
1 2 3
11 10 9 8 7 6 5 4
USB
4
1
