Service Procedures
Bottom Loading Gas Spring Replacement
These procedures apply to the following units:
• Nautilus ONE™ Mid Row (S6MR)
• Nautilus ONE™ Lat Pull (S6LATP)
• Nautilus ONE™ Chest Press (S6CP)
• Nautilus ONE™ Shoulder Press (S6SP)
• Nautilus ONE™ Bicep Curl (S6BC)
• Nautilus ONE™ Tricep Extension (S6TE)
Tools Required:
• 9/16" Socket and Ratchet
• 7/32" Hex Wrench
• 1/4" Hex Wrench
1-1 Remove (2) 3/8" upholstery bolts with a 9/16" Socket and
Ratchet.

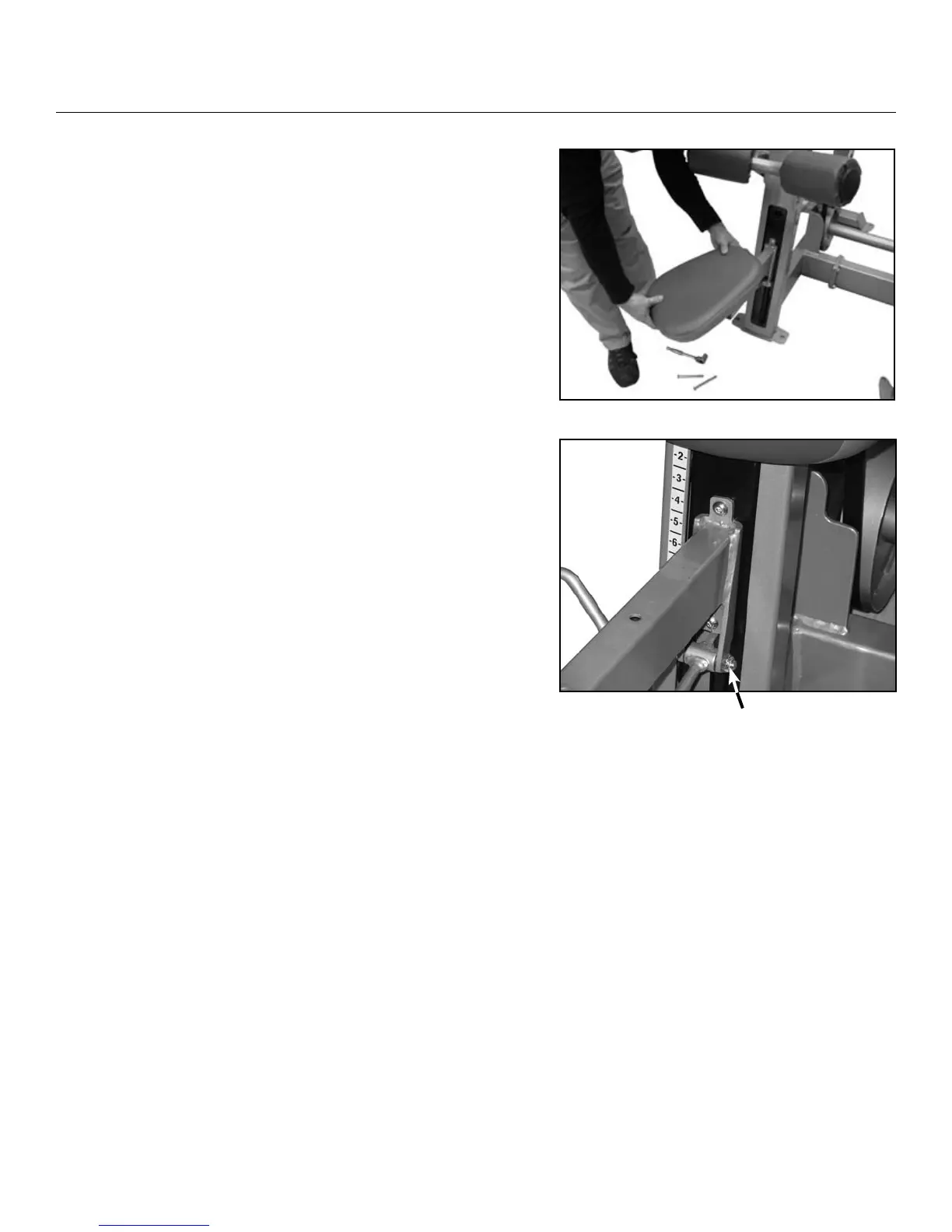

1-2 Remove the seat pad by pulling it upwards (Figure 1).
1-3 Remove the release handle shoulder bolt with a 1/4" Hex
wrench and a 9/16" Socket and ratchet (Figure 2).
1-4 Remove the handle.
Figure 1
Figure 2
Remove using a 1/4"
Hex head wrench and
9/16" socket and ratchet
Service Manual
12
