Antenna manual 3039 v1.06 07.02.01 page 4/4 © Copyright 2002 Naval Electronics AB
SILICON
Colour mark
Red: Mark 20CA
Yellow: Mark 22CA
*
*
*
Product Order No. Weight Standard Volume
package
Mark 20CA 201.001 5.5 kg 1 59 cdm
Mark 22CA 201.040 5.5 kg 1 59 cdm
Mounting bracket 201.351 1.5 kg 1 4.4 cdm
(see leaflet 3012)
All measures in mm
.
Replaceable
amplifier
BNC-connectors
TV-antenna
Antennas are as standard
delivered with the amplifier
mounted and sealed with silicon
compound. The coaxial cable is
supplied with a female connector
which must be carefully
sealed after connecting the
replaceable amplifier. Compress
the rubber covers and secure with
vulcanizing silicon rubber tape.
(* local supply)

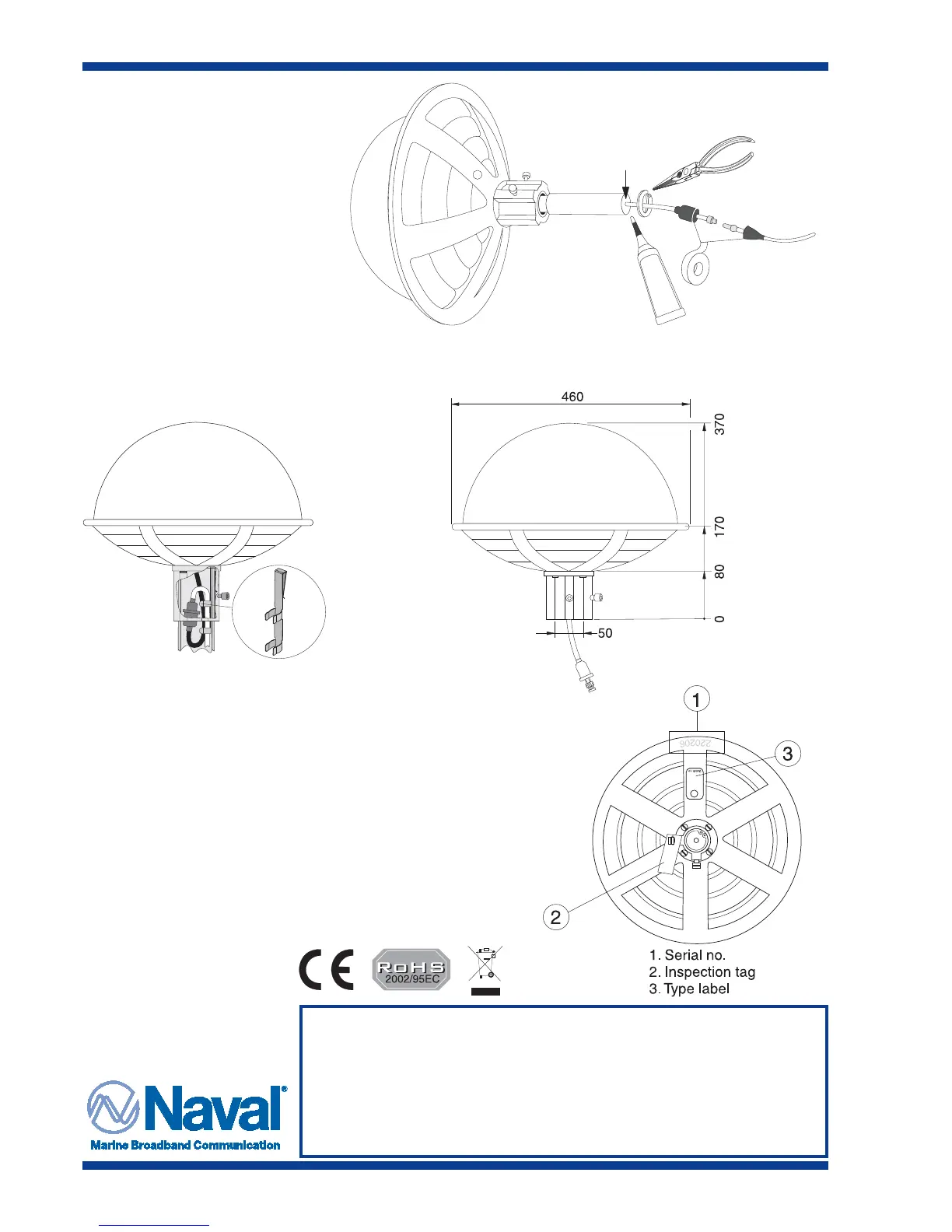

Changing the amplifier
Mounting of cable holder
Mechanical measurements
Trouble shooting
If the system is not working properly, please check the
following:
1. Proper supply voltage to powersupply
2. Connections
3. Output voltage from powersupply to antenna
(should be +15 V DC)
4. Antenna current (approx. 130-150 mA)
Antenna identification
(to be stated when claim is made)
