Navien NPE-210A2 Installation Manual

22 Installing the Water Heater
Gas Regulator
12 in. W.C.
Gas Tank
Full size
Gas Pipe
Full Size
Gas Pipe
Pipe
[Single Regulator System]
Note
If installation requires the use of
gas pressure regulators, follow all
regulator manufacturers requirements
and recommendations for sizing and
proper installation.

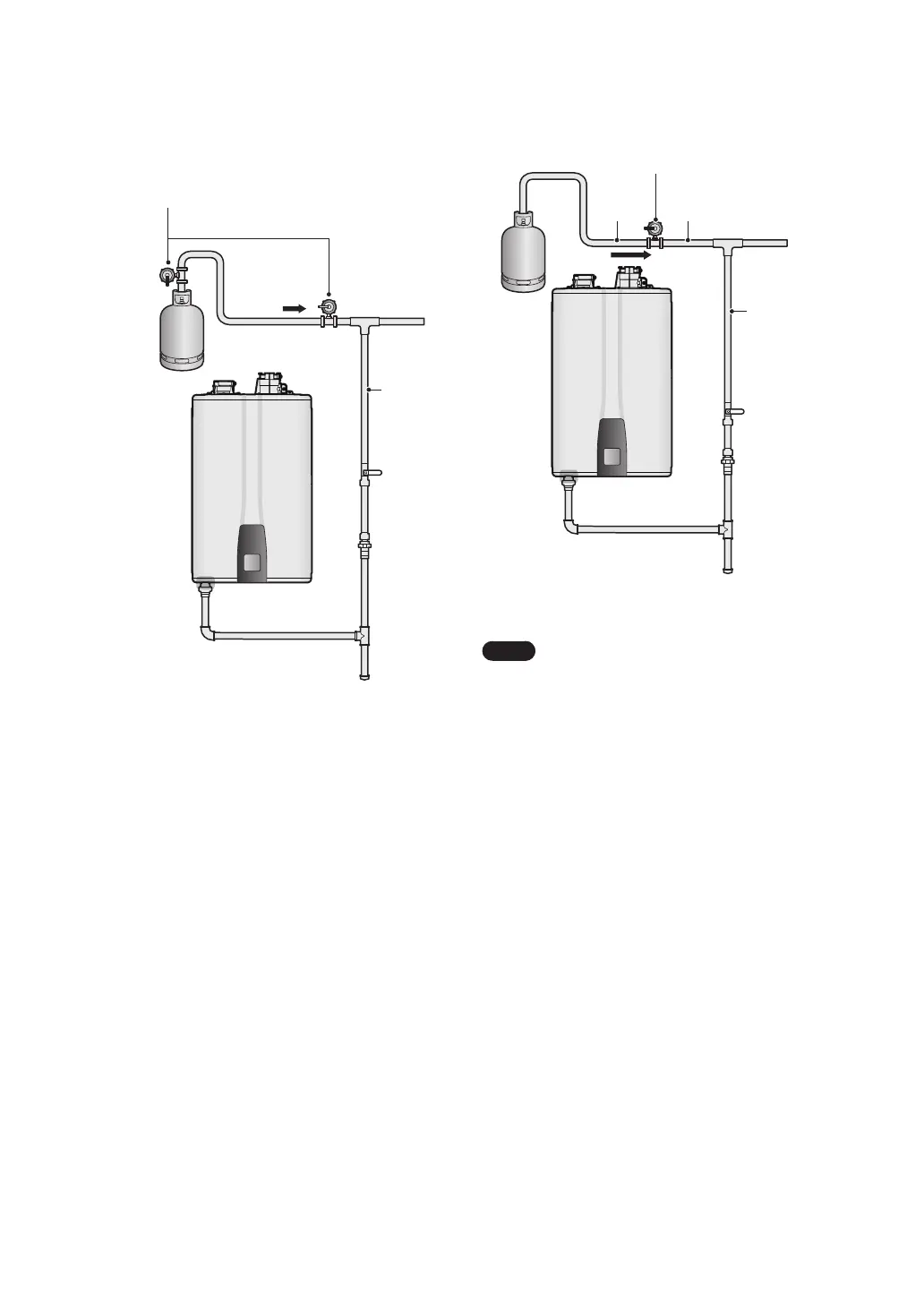

Typical Propane Gas piping examples:
Gas Regulators
(2 Stage)
Low Pressure
Regulator
(before entering
home or
building)
Gas Tank
High
Pressure
Regulator
Full Size
Gas Pipe
[2 Stage System with Multiple Regulators
(Recommended)]
