Receiver Compact-V 9600 Baud
Commissioning
The receiver is connected by a connection cable or plug to the system to be controlled. Please observe
the instructions of the system manufacturer when installing.
We strongly recommend establishing this connection via a central, easily accessible plug
connection (e. g. Tyco type (HTS) plug connection, series HE/HB/HN/HA, or a comparable one from
a different manufacturer) to enable a fast and precise error diagnosis for servicing and to be able
to remove the receiver without installation work.
The power for the receiver is supplied by the connection cable in most cases.
In general a ground cable (neutral conductor) must be installed for systems that have never been
operated with a radio control system. Otherwise the power for the receiver electronics cannot be supplied!
Please make sure that the operating voltage of the receiver corresponds with the connection plans of the
system to be controlled. The valid operating voltage is noted in the technical documentation.

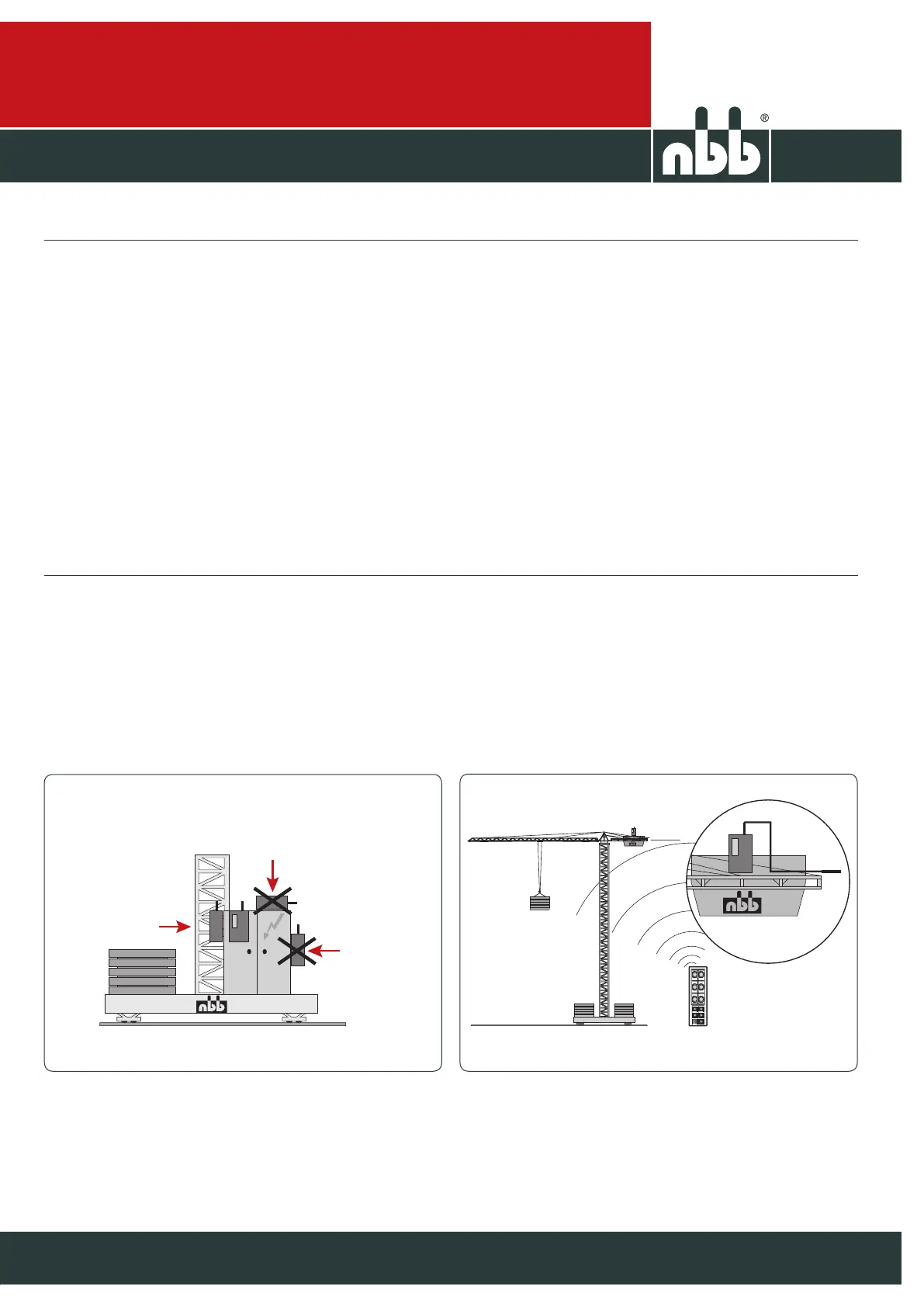

Mounting instruction
– Mount the receiver only vertically to the external wall of the switch cabinet and make sure that the
antenna protrudes above the wall.
– Make sure that the antenna is not partially or completely shielded by metal parts.
– For installation in the cabin or switch cabinet, the antenna is installed on the outside using the
extension cable and attached with the mounting bracket as horizontal as possible at a distance to
the metal parts to be shielded.
– The antenna should always be mounted in a position so that it remains visible every time the location
of the transmitter is changed.
.
Right
Wrong
Right
Wrong
Installation for rotating tower crane Mount antenna with extension cable horizontally for rotating tower crane
