Installation information

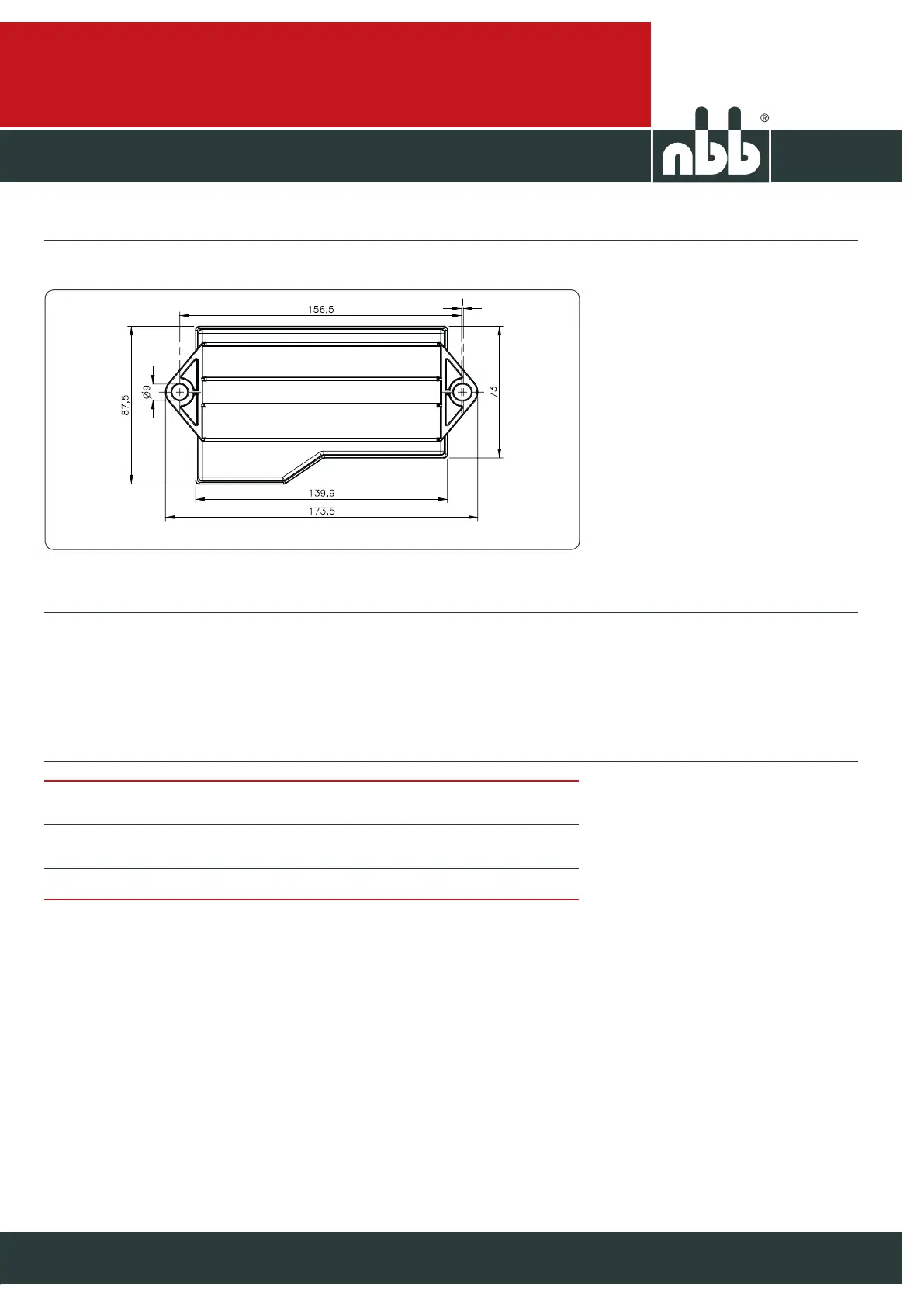

Please refer to the drawing for the measurements for attachment.
Optional integrated charger (in receiver)
Integrated charger (in receiver) for charging NiCd and NiMH rechargeable batteries (7.2 V).
Alternatively the receiver (DC supply) can be equipped with an integrated charger.
Quick charging (approx. 1 h): R16, R-CAN, Compact-M, Compact-V
Normal charging (approx. 3 h): PNN-BUS-3
Technical data
Power supply
9 V – 32 V DC (e. g. by 12 V/24 V on-board electrical system)
(Note: the charging procedure is lengthened below 10 V)
Supply voltage
via coaxial power connector (ø external = 5.5 mm, ø internal = 2.1 mm)
or via cigarette lighter plug
Measurements (L x W x H) 173,5 x 73 x 43,7 mm
Configurable specific to battery (Delta Peak, dT/dt, charging current, timeout)
Measurements in mm
