4 7761-K170 (P1535 POS Stand)
Installing the Power Supply
The P1535 terminal receives power from an external 19 V or 24 V power supply.
Caution: The P1535 terminal requires the NCR 19 V or 24 V power supply that is
shipped with the terminal. Use of other power supply may cause damage to the unit. Do
not connect or disconnect the 19 V or 24 V Power Cable from the terminal with the
ACPower Cord still connected to an ACoutlet.

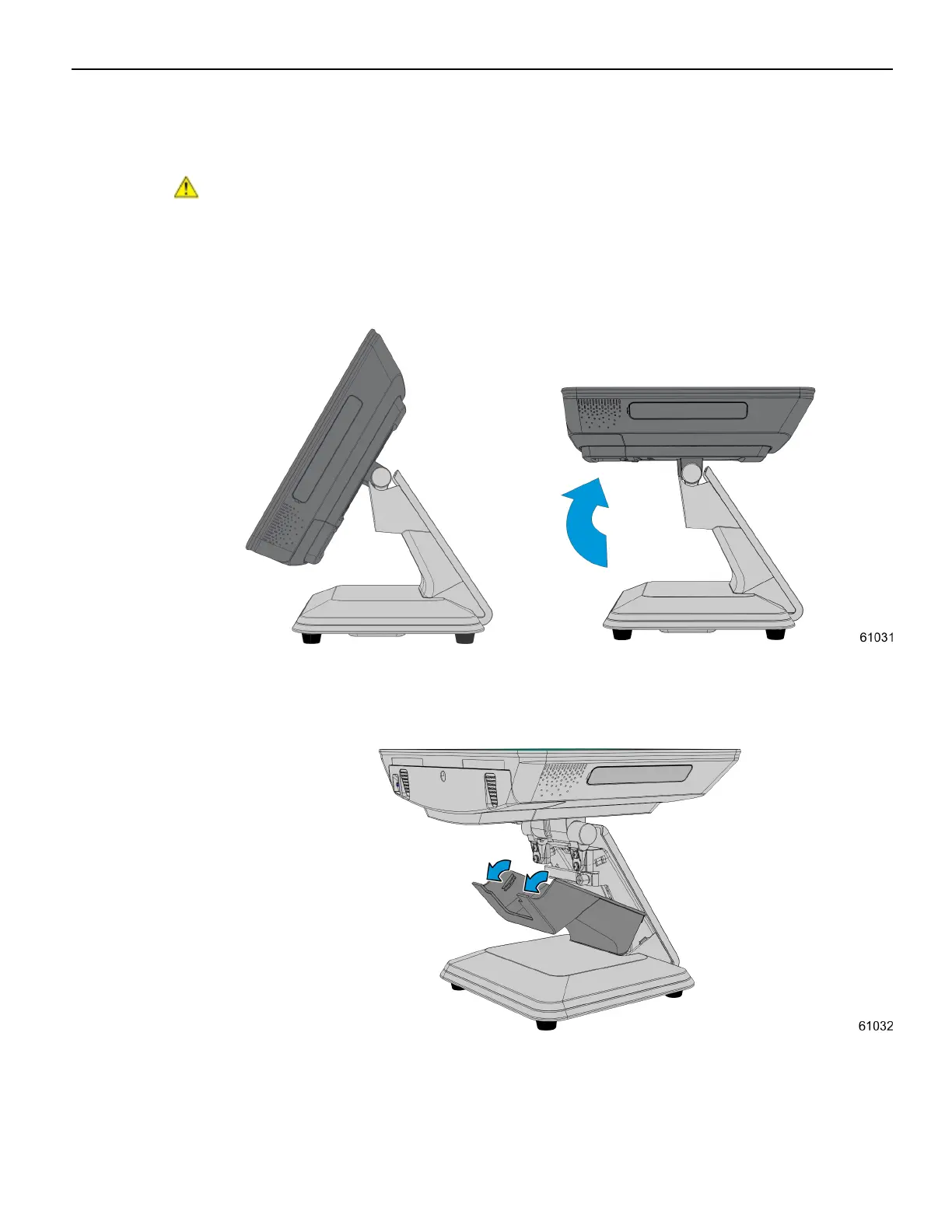

1. Pivot the display toward the back.
2. Remove the Upper Stand Cover by pivoting it away from the stand. The cover has a
simple snap fit connection at the top.
