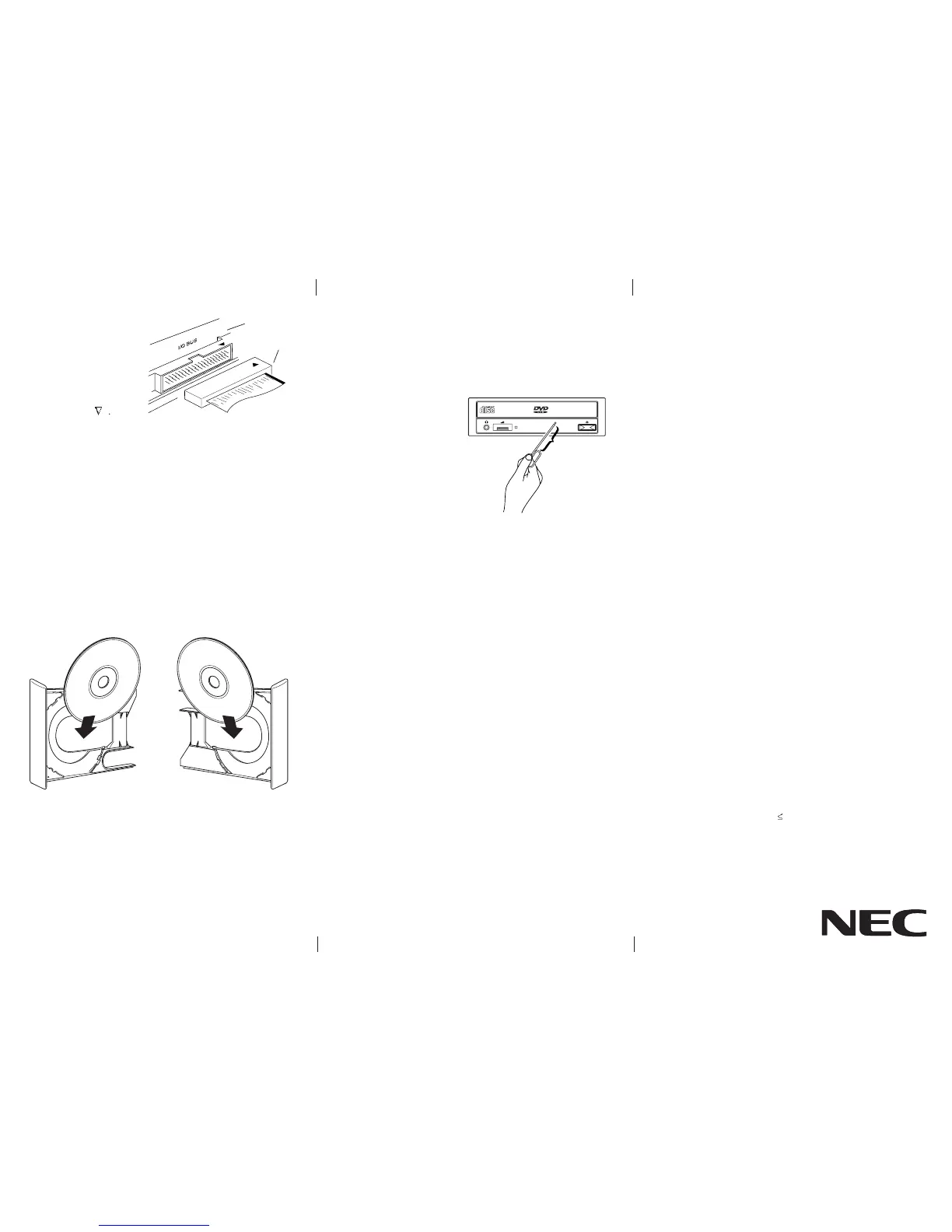

Vertical use
The DVD-ROM reader can be used in the vertical position.
When using the DVD-ROM Reader, in the vertical posi-
tion, load and unload discs as shown on the diagram below.
NOTE: Only 12cm discs can be used when the DVD-ROM
reader is installed vertically. Do not place 8cm discs
in the tray when using the DVD-ROM reader
installed in this way.
Emergency Eject
The procedure described below can be used to open the
tray of the DVD-ROM reader if the EJECT button is disa-
bled by software or a power failure occurs.
1. Turn off the power to the DVD-ROM reader.
2. Open the readers door.
3. Insert a steel rod (about
1.3mm in diameter)
into the emergency
eject hole and push
firmly until the
cartridge is ejected.
A stiff paper clip may
be used as steel rod.
Driver Installation
This DVD-ROM reader is designed to meet the DVD-ROM
specification of Microsofts PC-99. If you are using the
DVD-ROM reader with Windows 95 (or later version),
WindowsNT or IBM OS/2 Warp, all necessary drivers will
be loaded automatically by the operating system.
Note: Drivers mentioned above are part of the Operating
Systems and not available from NEC.
To use the IDE/ATAPI DVD-ROM reader with MS-DOS
and MS-Windows 3.xx, you have to install the attached
driver software before you can use the DVD-ROM reader
for the first time. Refer to the README.TXT file on the
driver disk for information about installing this driver.
Note: For Windows 3.xx dont use the 32 bit hard disk access,
be-
cause this mode is not supported for DVD-ROM readers.
Note: To play DVD Videos or DVD Audio on Your PC requires
MPEG2 and sound decoding. Additional hardware or soft-
ware may be required - please contact Your dealer or PC
vendor regarding configuration of your PC for this function.
Note: This drive supports RPC according to SFF8090v3 (RPC-2)
.
The final setting/definition of the video region code is deter-
mined by the fifth DVD video region code change..
Support
For local support like hotline, service or drivers see the
file README.TXT on the driver disk or NEC´s Internet
site at http://www.neceurope.com
Specifications
DVD-ROM Section
Data Transfer Rate.......... 16.2 M bytes/sec (max.)
Access Time ................... 120 msec (
1
/3 Stroke read, average)
Compatibility ..................
Single-
(4.7 GB)
and Dual layer
(8.54GB)
,
DVD-R (3.9GBytes)
CD-ROM Section
Data Transfer Rate.......... 2550- 6000KBytes/sec (17- 40x)
Access Time ................... 100 msec (
1
/3 Stroke read, average)
Hard Error Rate.............. Below 10
-12
(After error correction)
Compatibility ..................
High Sierra and
ISO9660
,
CD-ROM XA
CD-DA, CD-RW (read), CD-TEXT,
Enhanced Music CD (CD+),
CD- I (FMV), VideoCD (WhiteBook),
PhotoCD (SingleSession/MultiSession)
MPC-Level .................... MPC-3 compliant
Interface
Burst Transfer Rate
........ PIO Mode 4/ Ultra DMA33 mode 2 support
Memory Buffer............... 256 KBytes
Interface .......................... IDE/ ATAPI SFF-8090v3 rev. 0.40
Audio Section
Sampling Frequency....... 44.1kHz
Quantifying Bit Number ....
16-bit linear
Number of Channels ...... 2
Frequency Response ...... 20Hz - 20 kHz +1dB, -5dB
Dynamic Range ............. 80 dB
S/N Ratio ....................... >80 dB
Total Harmonic Distortion ...
0.09%
Wow & Flutter ................ Below measurable limits
(Quartz oscillator precision)
Output ........................... Headphone: 0.7 Volt
Line out: 0.75 Volt
General
Power Supply ................ 5 V max. 1.5A, 12 V max. 1.5A
Dimensions
( W x H x D)
... 14.9 x 4.2 x 20.8 cm
Weight ............................ 0.91 kg
Noise ..............................
£
45 dB(A)
Storage temperature ....... -20° to 60° C
Storage humidity ............ 30% to 90% RH, noncondensing
Operating temperature.... 5° to 45° C
Operating humidity......... 30% to 70% RH, noncondensing
Note: Above specifications are subject to change.
Photo CD is a trademark of Kodak
used under license.
Colored
Stripe
Arrow
Bus Cable
65mm
(at least 45mm
in lenght)
6. Connect the I/O BUS
connector on the DVD-
ROM reader and the
IDE controller.
Connect the colored
stripe side of the cable
to the side marked with
the arrow (
Ñ
).
7. Slide the DVD-ROM reader into the computer and fix it
in the computer cabinet with 4 screws.
NOTE: To avoid damage to the DVD-ROM reader take
care, that the screws do not reach more than
5 mm into the DVD-ROM readers cabinet.
8. Replace the mounting clips, keeper bracket, and compu-
ter cover. Refer to the Guide to Operations that came with
the computer for help with this step.
DVD-ROM reader installed
vertically (right side)
DVD-ROM reader installed
verticallly (left side)
