English-21
English
TILE COMP
Works in tandem with TILE MATRIX to compensate for the width of the tile bezels in order to accurately display the
image.

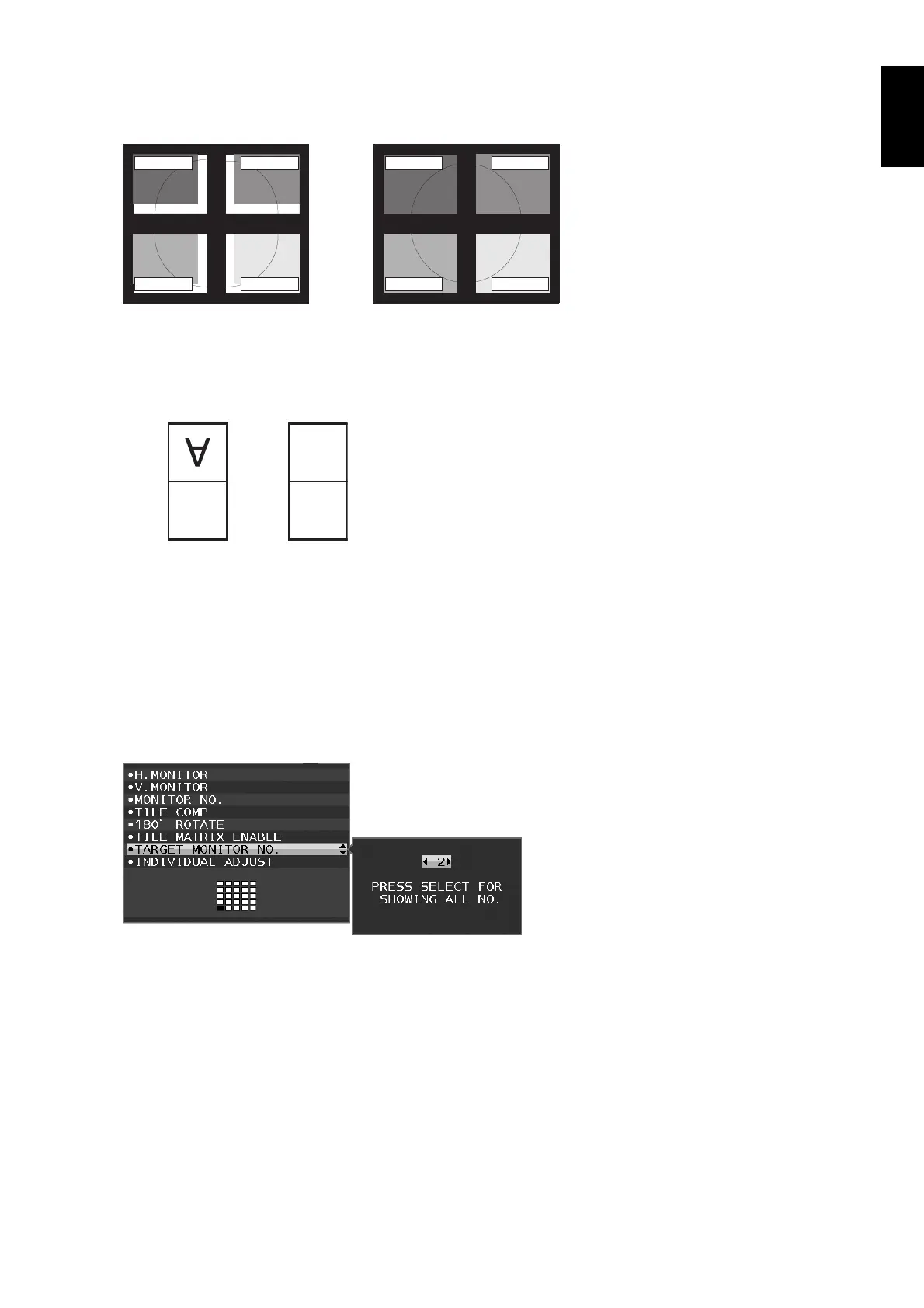

TILE COMP with 4 monitors (black area shows monitor frames):
TILE COMP ONTILE COMP OFF
Monitor 1 Monitor 2
Monitor 3 Monitor 4
Monitor 1 Monitor 2
Monitor 3 Monitor 4
180° ROTATE
The image rotates 180 degrees.
NOTE: When installing monitors in two stages, upper monitors can be installed upside down.
The installation method can minimize bezel distance between upper monitors and bottom monitors.
[OFF]
A
[ON]
A
A
TILE MATRIX ENABLE
Allows one image to be displayed over multiple screens. This feature can be used with up to 25 monitors (5 vertical
and 5 horizontal). Using TILE MATRIX ENABLE requires the PC output signal be sent through a distribution amplifi er
to each individual monitor.
TARGET MONITOR NO.
Controls sub monitor’s OSD by using master monitor’s control keys.
Sets the sub monitor number that is set at MONITOR NO. By pressing INPUT (SELECT) key, each sub monitor
displays its monitor number.
The sub monitor who is set as a target monitor is shown yellow in OSD. Please refer to ControlSync (see page 11)
about the relation of master monitor and sub monitors.
INDIVIDUAL ADJUST
ON: Controls sub monitor by master monitor.
Once ON is set, operation at master monitor refl ects to sub monitor OSD.
To disable INDIVIDUAL ADJUST, please press SELECT and EXIT keys simultaneously.
NOTE: Please connect monitors with ControlSync cable.
