Intuition Setup Page 3 - External Device
"Intuition setup page 3" linked from "Intuition setup page 2". At this screen External Device resources,
such as InMail or Music On Hold (MOH) can be configured. Settings are stored once "Next" is clicked.
"Back" will take you back to previous page but all the data set at page 3 will be lost .

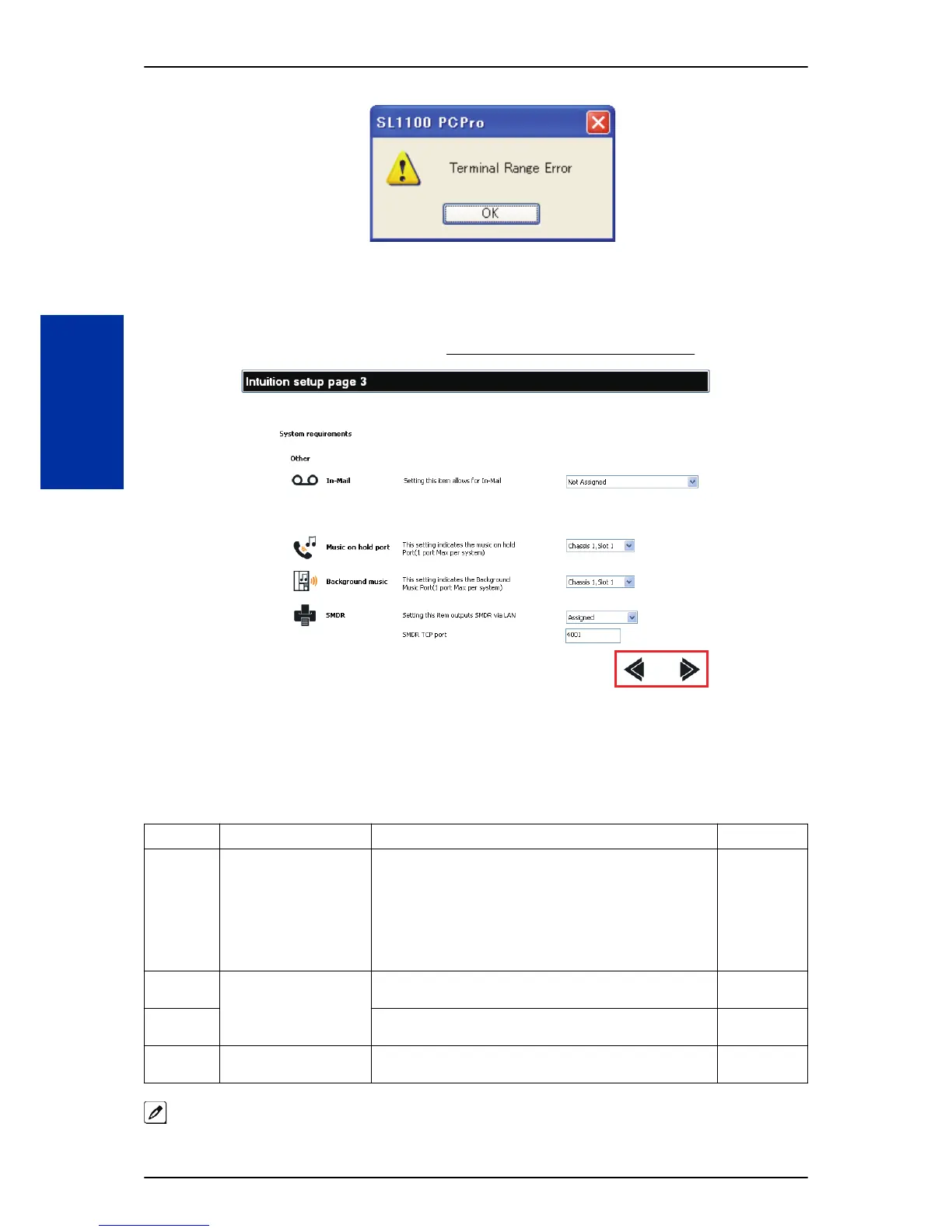

Figure 1-39 Intuition QA Page 3 - External Device
Table 1-59 External Device Type on page 1-590 shows the type of External Device supported at the
Setup Page 3.
Table 1-59 External Device Type
Type Input Range Required System Data Note
VRS/InMail 0: Not Assigned
1: Assigned
PRG 47-01-17: InMail Port
• When set 1, Port 69-76 are assigned as InMail automatically.
PRG 15-03-03: Terminal type
• Changed to: 1; Special
PRG 16-02-01: Department Group
• Changed to: 32
PRG 45-01-01: Voice Mail Department Group
• Changed to: 32
Music on
hold Port
0: Not Assigned
1: Chassis 1 Slot 1
2: Chassis 2 Slot 1
3: Chassis 3 Slot 1
PRG 10-60-01: Audio Port No.2 (External MOH)
• Select the KSU to use as external MOH input.
Background
music
PRG 10-60-01: Audio Port No.1 (BGM)
• Select the KSU to use as external BGM input.
SMDR 0: Not Assigned
1: Assigned
PRG 10-20-01: External Device 05 (SMDR Output)
• Changed 0 to 4001 (Able to set if set to 1: Assigned)
When you click "Next" and If you receive the similar message you received in page 1. Like in case of Page
1 please re-enter the number so that it won't exceed the MAX.
SL1100 ISSUE 2.0
1-590
PC Programming - Intuition Setup
