NEC SL1100 - Applying Power to the Charging Unit; Figure 2-126 Connecting the DTL-8 R-1 Cordless DECT to the Multiline Terminal; Figure 2-127 Applying Power to the Charging Unit

2. Connect a SL1100 digital multiline terminal to the DTL-8R-1 Cordless DECT.
Line "OUT"
To SL1100 Multiline Terminals

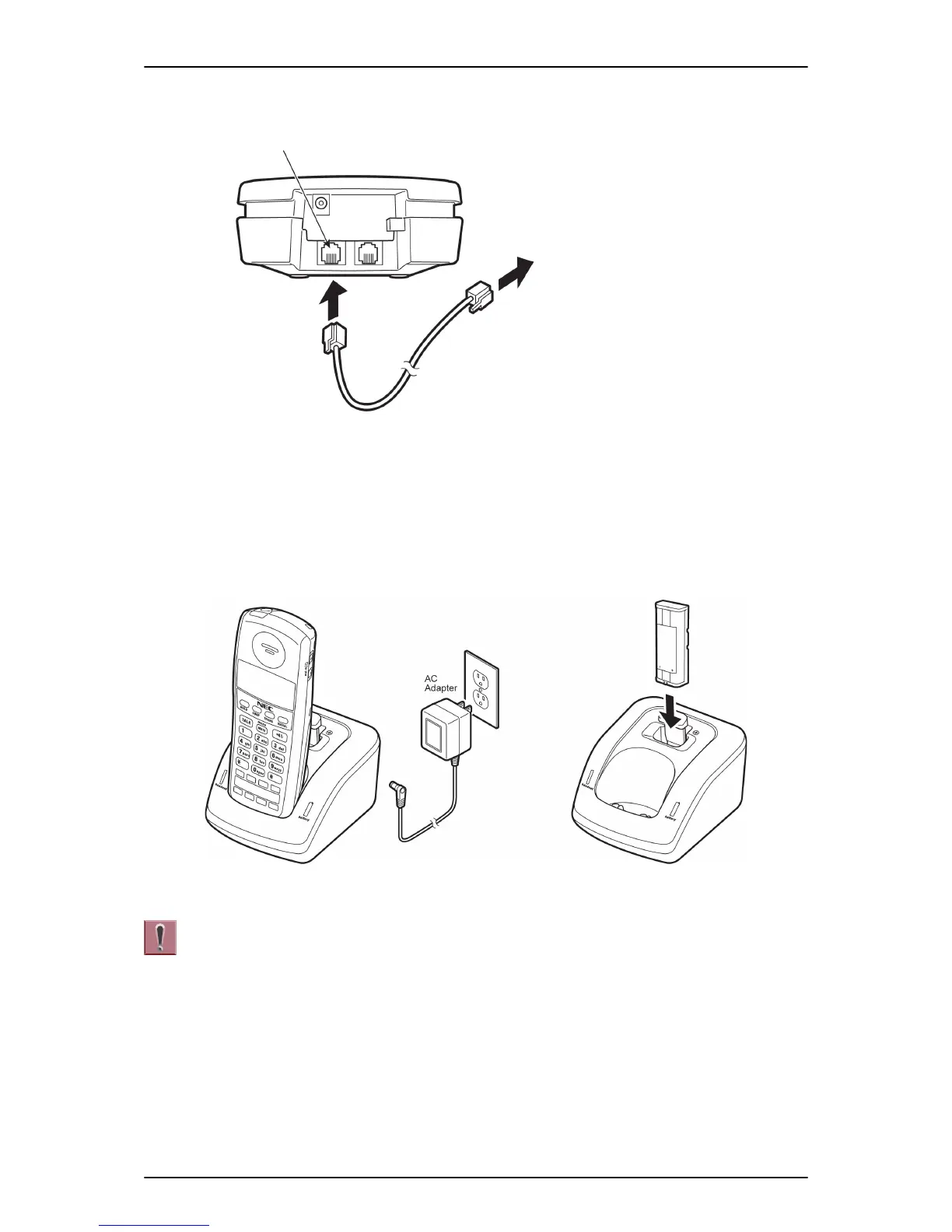

Figure 2-126 Connecting the DTL-8R-1 Cordless DECT to the Multiline Terminal
6.1.4 Applying Power to the Charging Unit
The unique design of the telephone allows the user to place the handset in the charging unit with or
without the belt clip attached. The charging unit can charge a second battery with or without the
handset being charged. The battery packs can be recharged automatically either in or out of the
handset.
Figure 2-127 Applying Power to the Charging Unit
Use only the supplied AC adapter for the charging unit.
The AC adapter furnished with this telephone usually has a polarized line plug with one blade wider
than the other. This plug fits in the power outlet only one way. If you cannot insert the plug fully in the
outlet, try reversing the plug.
Refer to Figure 2-128 Polarized Plug on page 2-90.
If you cannot plug the AC adapter in the outlet, you may need to replace it.
