NEC SL1100 Issue 6.0
Networking Manual 9 - 59
13.10 SIP MLT Quick Startup Guide
The following guides describe the setup for a SIP MLT from a default state for
these modes:
 Plug and Play
 Automatic Registration
 Manual Registration
13.10.1 Plug and Play
1. Program 10-12
Assign the VoIPDB registration/signaling IP address, subnet
mask, and default gateway. If no customer provided default
gateway is provided, leave Gateway IP address at 0.0.0.0.
2. Program 84-26
Assign the IP addresses that the DSP is going to use. The IP
address assigned must be in the same subnet as the address
in Program 10-12-09.
After these commands are uploaded to the CPU, a system
reset must be applied.

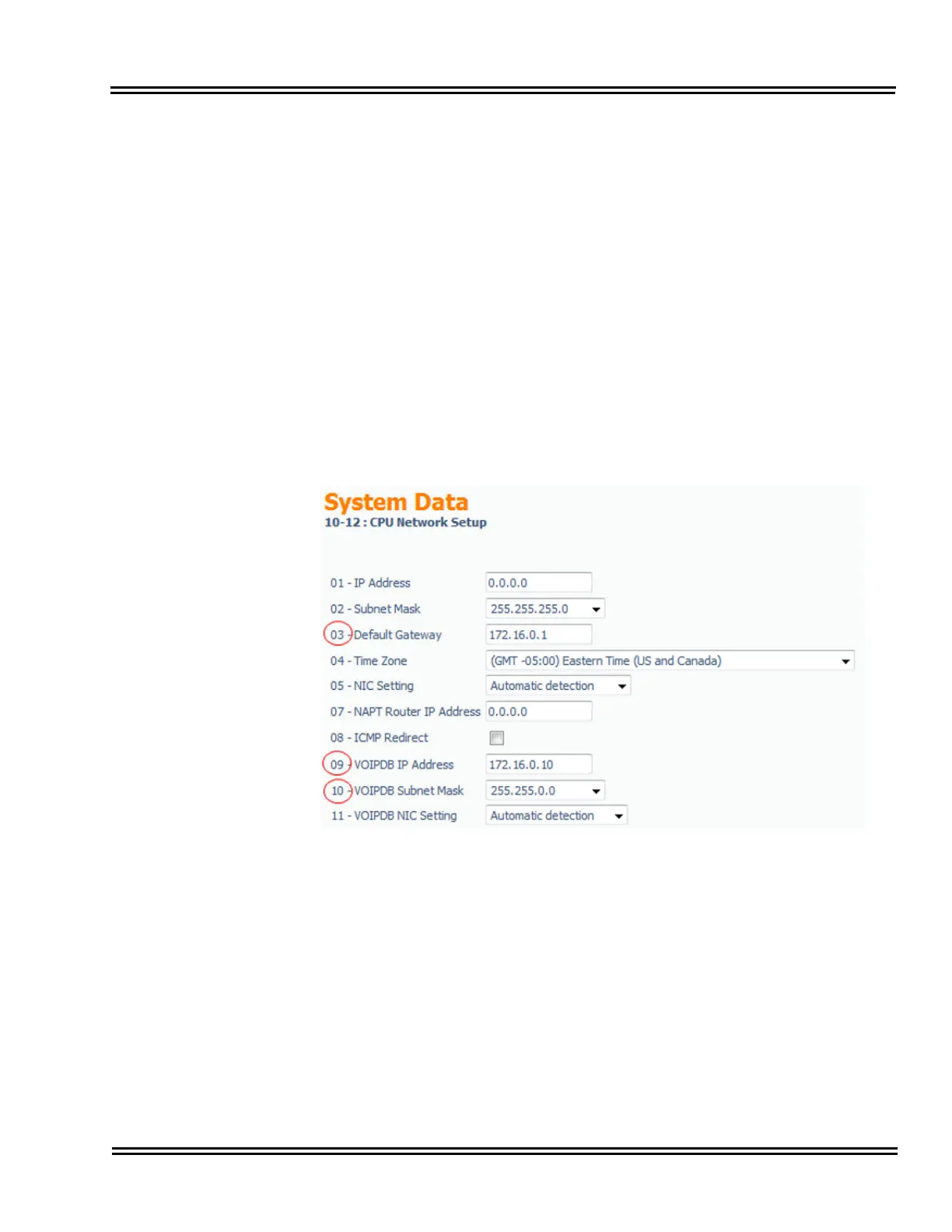

Figure 9-26 System Data 10-12: CD CP00 Network Setup
