UNIVERGE SV9100 Issue 1.2

System Hardware Manual 3 - 29

2.2.2.1 Wall Mounting the CHS2UG without the CHS2UG B Small

Batt Box

1. Align the bracket halves (refer to Figure 3-37 Wall

Mounting Brackets (Option 2)).

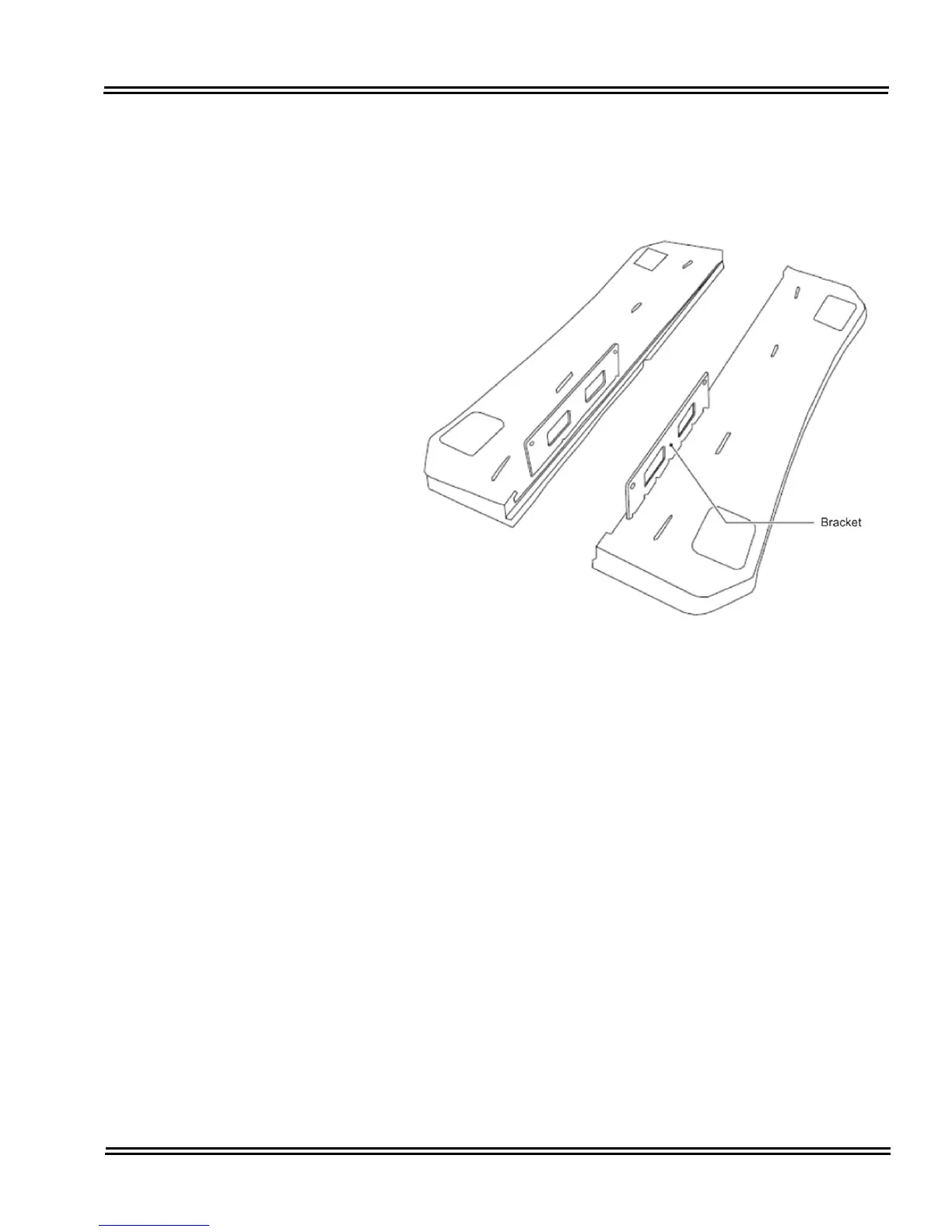

Figure 3-37 Wall Mounting Brackets (Option 2)
