10. Open the small door covering the side option
connectors by pulling the cover latch toward you
(refer to Figure 5-93 Serial Cable Installed, DT700/
DT800 only).
11. Connect the cable from the DCL-60-1/DCZ-60-2
CONSOLE to the Side Option Connector on the
multiline terminal and close the cover (DT700/
DT800 only).
12. Set the height of the tilt leg on the multiline terminal
to the desired height.
13. Set the height of the tilt leg on the DCL-60-1/DCZ-
60-2 CONSOLE to match the tilt leg on the multiline
terminal.
14. Attach the side panel to the side of the DCL-60-1/
DCZ-60-2 CONSOLE.
15. Return the multiline terminal and DCL-60-1/DCZ-
60-2 CONSOLE to the buttons side up position.
16. Connect the digital cable to the LINE jack (DT300/
DT400 Series).
17. Connect the AC Adapter cable (DT300/DT400/
DT700/DT800 Series) See Figure 5-94 Connect AC
Adapter Cable on page 5-91.

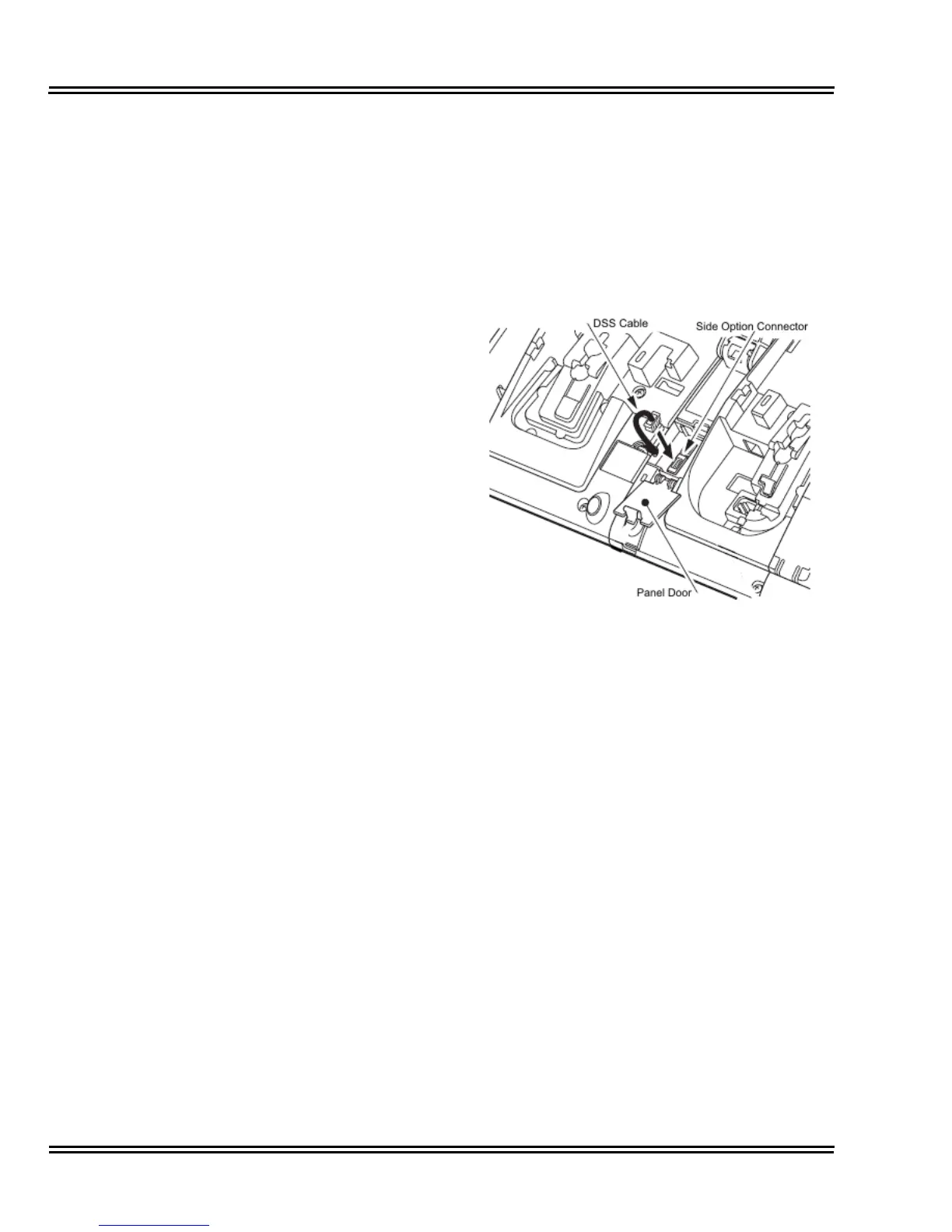

Figure 5-93 Serial Cable Installed
