PEDESTAL INSTALLATION CONTINUED
For pedestal models only

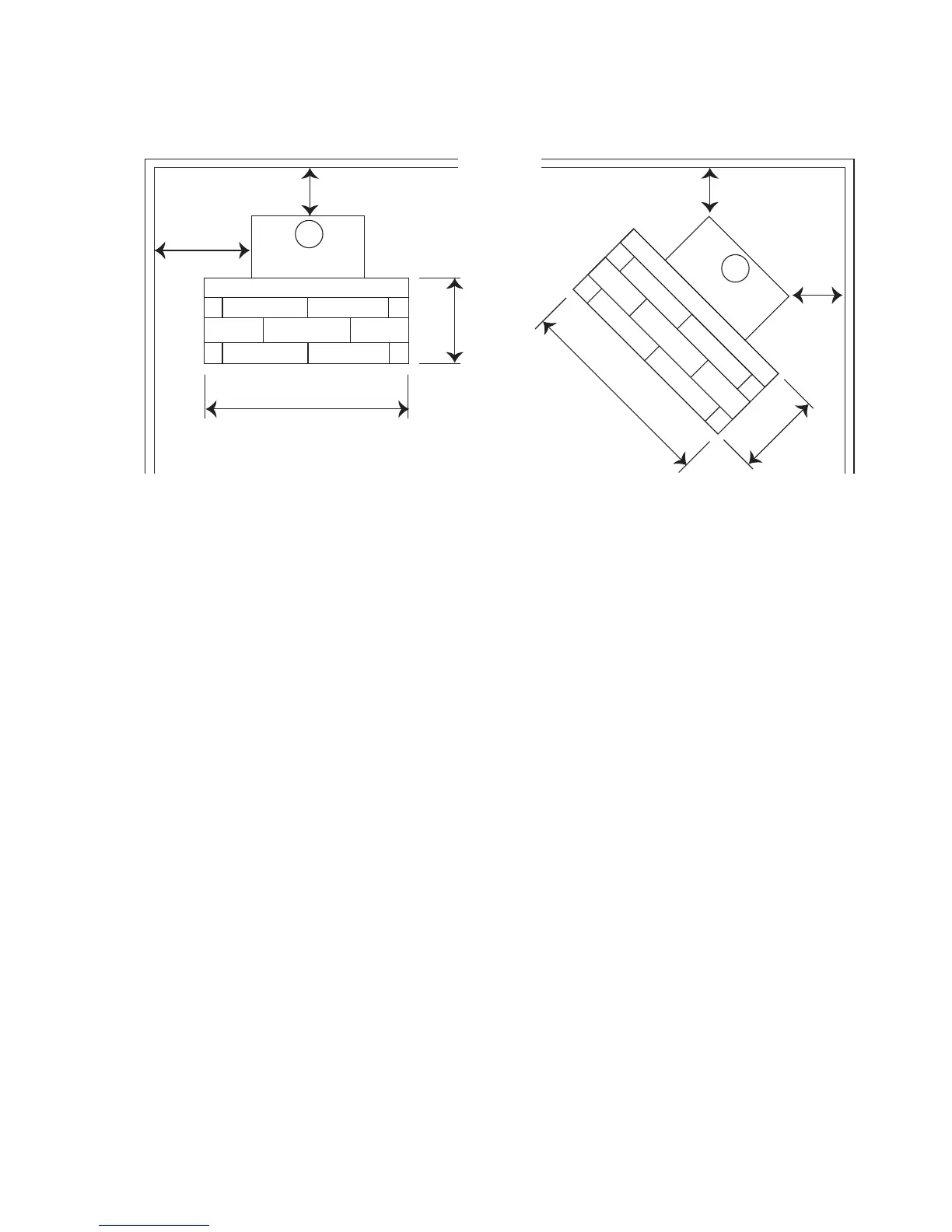

CLEARANCES FOR PEDESTAL MODELS
NOTE: Floor Protector requirements shown are a guide only, installation must
meet or exceed the recommended minimum requirements listed in the table
above.
DIMENSIONS FOR IN-BUILT MODELS
ALL INBUILT HEATERS MUST BE INSTALLED IN A FULL MASONRY CAVITY BY QUALIFIED INSTALLERS.
HEATING PERFORMANCE MAY REDUCE AS A RESULT OF VAULTED CEILINGS, DRAFTS, LARGE GLASSED
AREAS OR POOR INSULATION.
Y
X
Z
Z
B
B
A
A
MODEL X Y Z B
MODEL HEIGHT WIDTH DEPTH REAR OF HEATER
TO FLUE CENTRE
IS500
Fascia 760 940
Cabinet 626 600 400 215
IS800
Fascia 806 1040
Cabinet 675 660 430 255
A FLUE DIA.
FS 500 150 325 400 1020 150
FS 800 150 325 450
100
100 1140 150
12mm thick fibre cement sheet with thermal conductivity 0.41 W/m degree K
underneath heater extending 450mm (800 models) and 400 (500 models)
in front of the door opening and 200mm from the sides.
FLOOR PROTECTOR
INSTALLATION OF PEDESTAL MODELS
Your new wood heater installation must confirm to Australian Standards
AS/NZS 2918:2001, and be clear of combustibles as shown below. Currently for
installation with an Australian Standard Double Cased flue kit with a full-length
half radius perforated mesh flue shield.
OUTER CASING NO LESS
THAN 25MM CLEARANCE
TO COMBUSTIBLES
STAINLESS STEEL
COWL
FLASHING
SECURING ANGLES
CEILING RING
CEILING
DECROMESH WITH SOLID BACK
STAINLESS STEEL INNER
FLOOR PROTECTOR
