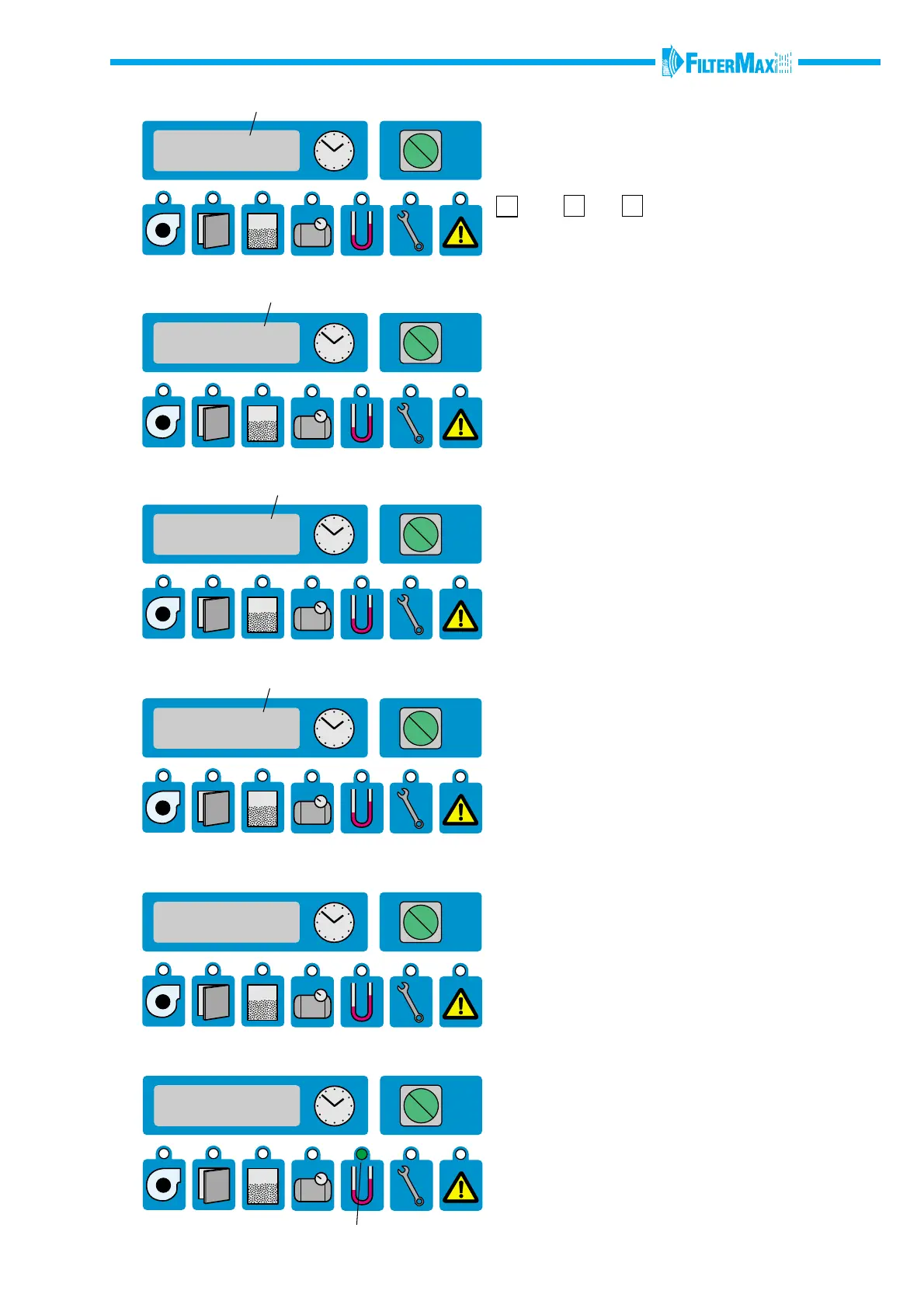

Down time damper
Push the button X.
Activated output: JP6: 2
24 V AC supply for opening a damper motor with
spring return or magnetic valve for compressed air.
Is used to reduce the starting current at fan start.
Delay time for opening the down time damper:
10 - 60 s after fan start. Set the required delay time
with the 0/1-button.
OFF NC NO
0
1
0
1
J
LINE 1
1. Switch off the main switch.
2. Connect a pressure switch (1 - 2 kPa) to JP 1,
inlet 4 plus 9 or 10.
3. Push the control box switch (0/1-button) and the
button X on the back side of the control box cover.
4. Switch on the main switch. NB! The 0/1-button and
the button X must be pushed at the same time while
the main switch is switched on.
5. Set the pressure at which the cleaning shall start
(normally 400 - 800 Pa).
EA OFF
dF ON
or NC or NO
Explosion / Fire alarm
Push the button X.
Activated input: JP1: 7
Set OFF, NC or NO with the 0/1-button
00 - 60 s
Dust feeder
Push the button X.
Activated output: JP6: 3
Direct controlled by contactor or other 24 V relay.
ON: The dust feeder is in operation
OFF: The dust feeder is not in operation
Int: Intermittent operation of the dust feeder
Set ON, OFF or Int with the 0/1-button.
or OFF
LINE-connection
Push the button X.
Connection to JP4, see page 15
Set LINE 1, LINE 2 or LINE 3 with the 0/1-button.
External START/STOP
Push the button X.
Activated input: JP1: 1
Inactivates the start/stop button on the control box.
Only remote start is possible.
Set ON or OFF with the 0/1-button.
Simple dP-controlling
Slow green blinking during operation.
Fast green blinking during cleaning.
