ENGLISH
Introduction
Wireless body pack with 16 channels. For use with wireless microphone systems MPWL611BK
and MPWL
621BK.
Note: When using with MPWL611BK, only channels 2 or 16 of the body pack are available.
MPWL611BK is only a 2 channel and not a 16 channel system.

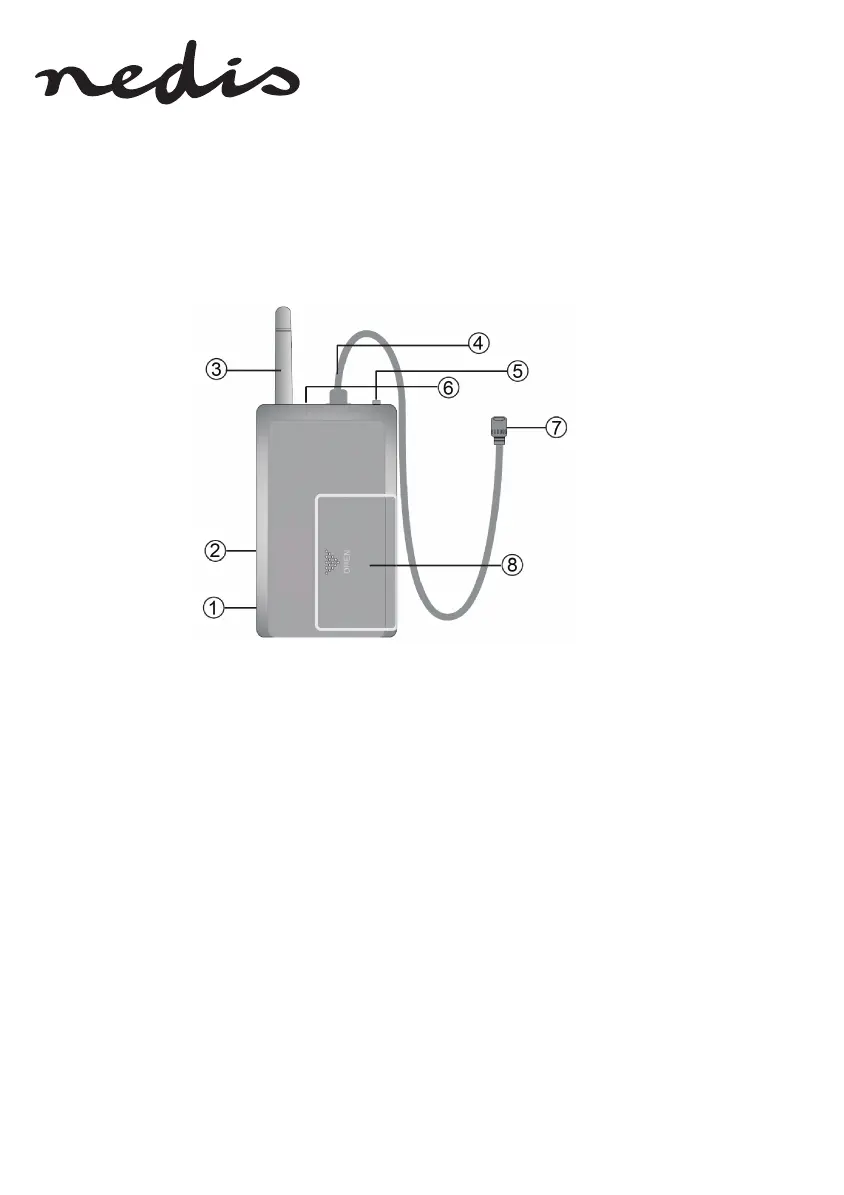

Description
1. Gain control
2. Channel selector; see other side of body pack for channel selection
3. Antenna
4. Input socket for microphone, 3.5mm mono
5. ON/OFF switch
6. Low battery indicator, lights up if battery capacity is low
7. Lavalier microphone or headset microphone
8. Battery compartment for 2x AA battery, 1.5V (also suitable for rechargeable batteries)
Specications
Frequency: 863~865 MHz
Channels: 16
Modulation: FM
RF output power: 10 mW
Battery life: 6 Hours
Battery type: 2x AA 1.5V (batteries not included)
Dimension: 95 x 24 x 64mm (without antenna)
Weight: 88 g (batteries not included)
