en Installation instructions
16

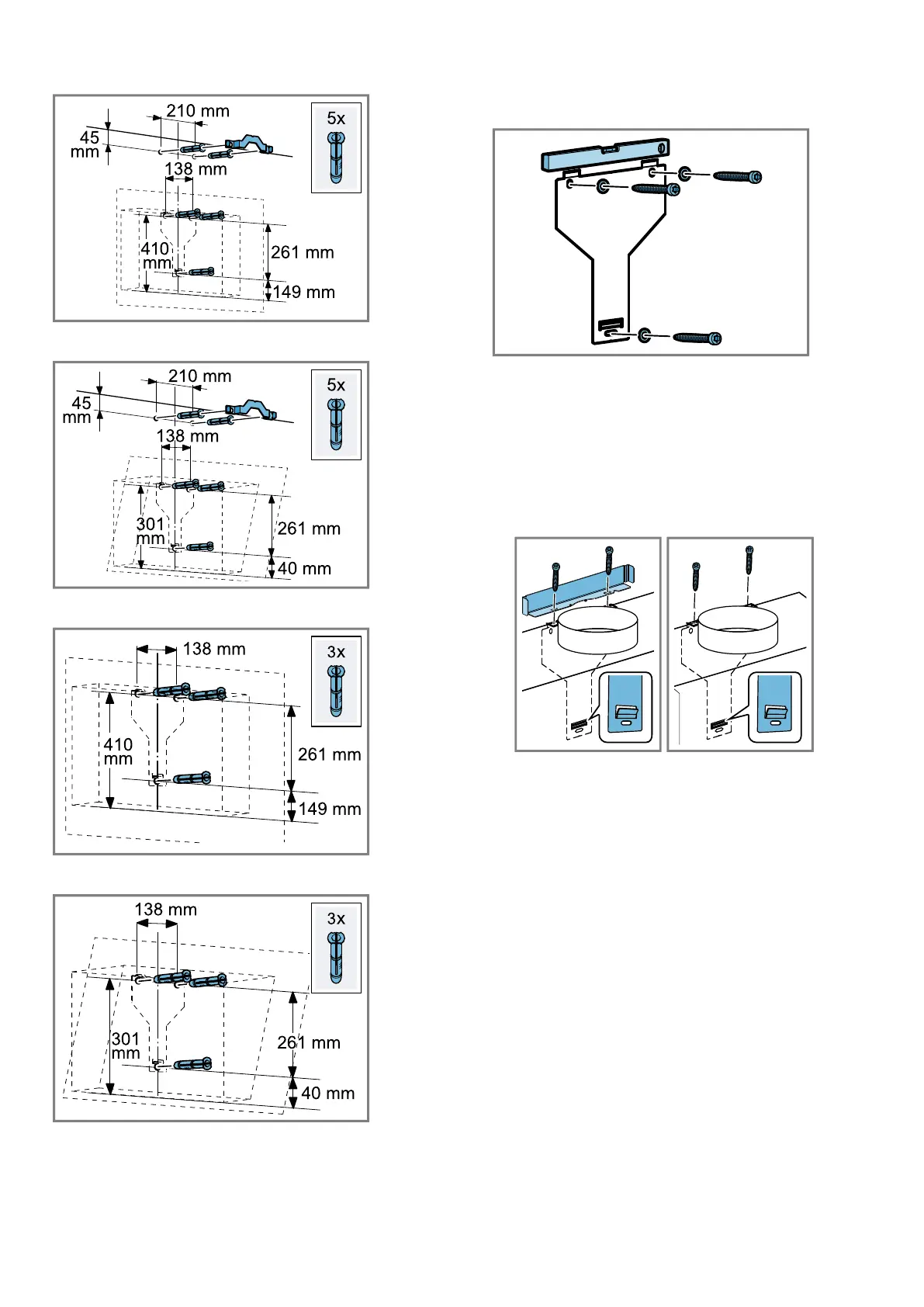

Variant A: Flat extractor hood with flue cover
Variant B: Sloped extractor hood with flue cover
Variant A: Flat extractor hood without flue cover
Variant B: Sloped extractor hood without flue cover
Installing the appliance bracket
1.
Screw on the appliance bracket for the extractor
hood hand-tight.
2.
Use a spirit level to align the appliance bracket hori-
zontally and screw it firmly in place.
Installing the appliance
1.
Remove the protective film from the rear.
‒ Once the appliance is installed, fully remove the
protective film.
2.
Hook the appliance into the appliance bracket in
such a way that it clicks firmly into place.
3.
To align the appliance, slide the appliance to the
right or to the left as required.
4.
Tighten the safety screws.
When you install a flue cover, install the bracket and
hold it in place while screwing it in tight.
Piping
Air extraction mode
¡ If you operate the appliance in air extraction mode,
a flue cover must be installed.
Circulating-air mode
¡ If you are operating the appliance in circulating-air
mode, an optional accessory must be fitted. To do
this, refer to the installation instructions provided.
¡ For operation in circulating-air mode, the installation
of the flue cover is optional.
Note:If you are using an aluminium pipe, smooth the
connection area beforehand.
We recommend the piping with an exhaust air pipe dia-
meter of 150mm.
Establishing the exhaust air connection (exhaust
pipe, 150mm diameter)
1.
Secure the exhaust pipe to the air pipe connector.
2.
Establish the connection to the exhaust air opening.
3.
Seal the joints.
