Installation instructions en
15
4.
Tighten the safety screws.
When you install a flue cover, install the bracket and
hold it in place while screwing it in tight.
Piping
Air extraction mode
¡ If you operate the appliance in air extraction mode,
a flue cover must be installed.
Circulating-air mode
¡ If you are operating the appliance in circulating-air
mode, an optional accessory must be fitted. To do
this, refer to the installation instructions provided.
¡ For operation in circulating-air mode, the installation
of the flue cover is optional.
Note:If you are using an aluminium pipe, smooth the
connection area beforehand.
We recommend the piping with an exhaust air pipe dia-
meter of 150mm.

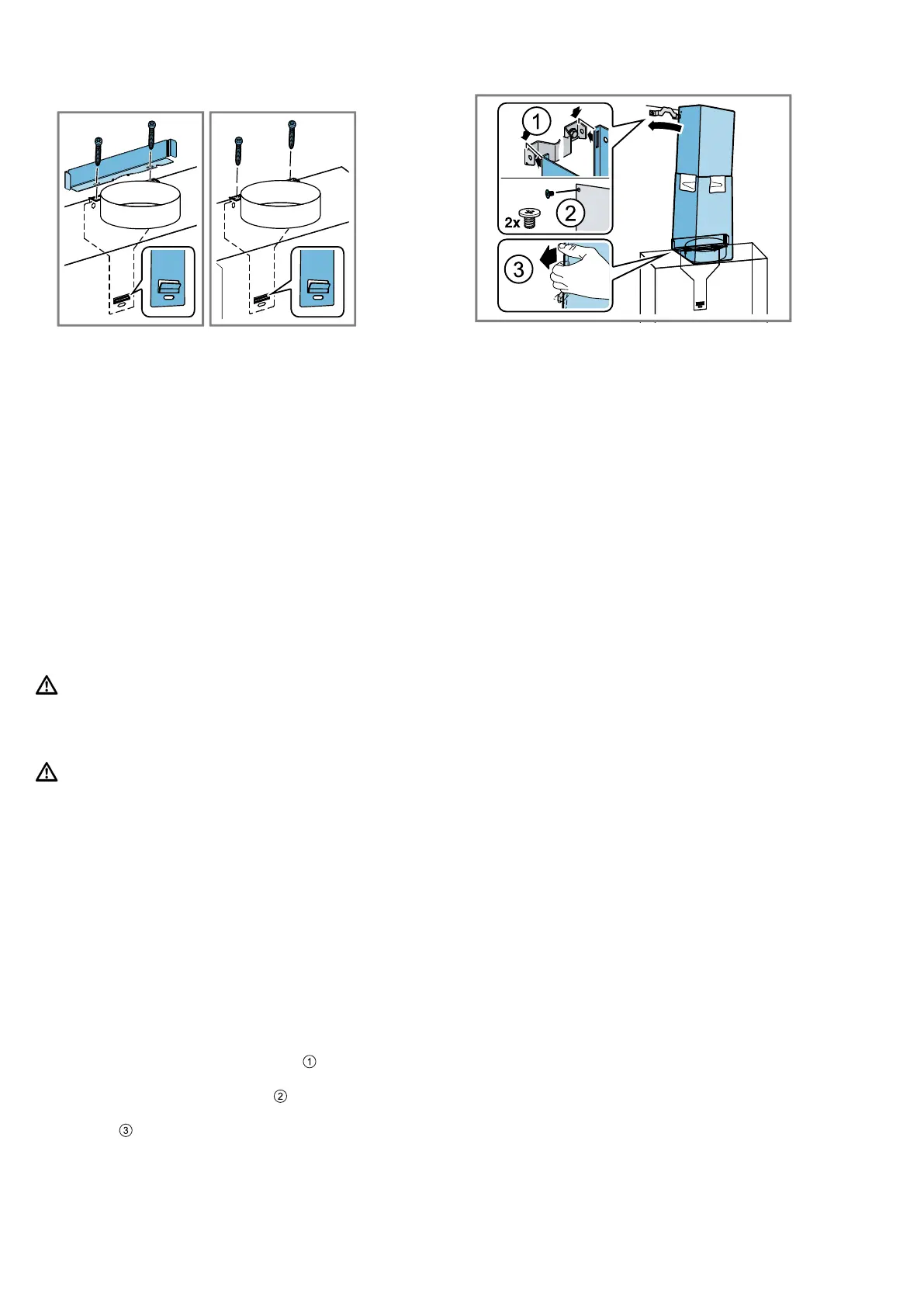

Fitting the flue duct
WARNING‒Risk of injury!
Components inside the appliance may have sharp
edges.
▶
Wear protective gloves.
WARNING‒Risk of electric shock!
Sharp-edged components inside the appliance may
damage the connecting cable.
▶
Do not kink or trap the connecting cable.
1.
Screw the retaining bracket for the flue cover to the
wall.
2.
Note:
¡ To prevent scratches, lay paper over the edges
of the outer flue duct section to protect the sur-
face.
¡ The slots on the inner flue duct section should
point downwards.
Push one flue duct section into the other.
3.
Place the flue cover on the appliance.
4.
Slide the inner flue cover upwards, attach it to the
left and right sides of the retaining bracket, and then
slide it down to engage it in place .
5.
Screw the upper flue cover to the sides of the retain-
ing bracket using twoscrews.
6.
Clip the lower flue cover onto the lower retaining
bracket.
Ensure that the connecting cable is not trapped.
