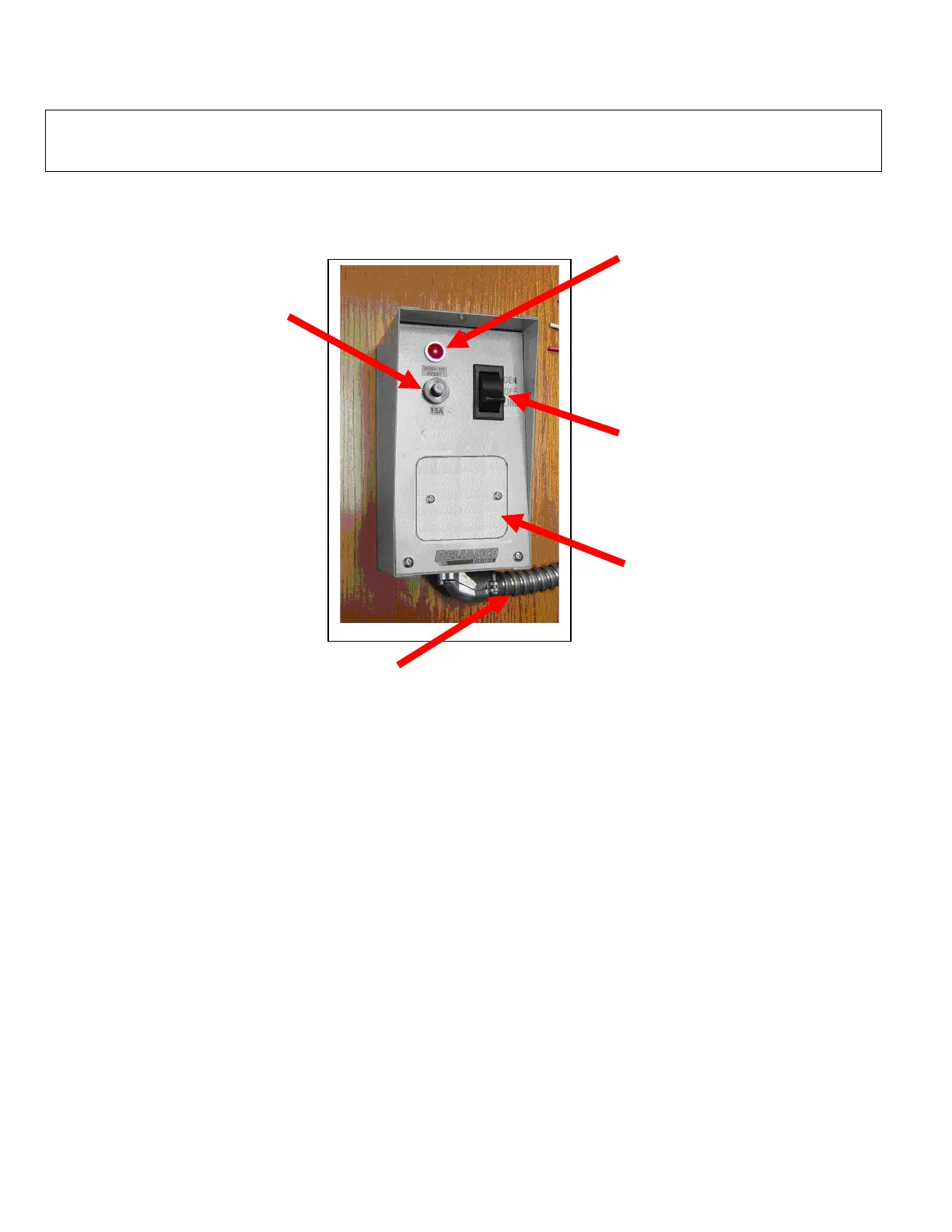

KEY COMPONENTS OF THE RELIANCE CONTROLS FURNACE TRANSFER
SWITCH FOR PORTABLE GENERATORS
.
The circuit breaker is either a 15 Amp
(TF151) or 20 Amp (TF201) push-to reset
branch-rated circuit breaker that protects
the branch circuit when the toggle switch
is in the GEN position. In the LINE
position, the branch circuit is protected by
the furnace breaker in the load center
This switch allows you to select either
GEN (generator) or LINE (utility) as the
power source for the furnace circuit
breaker that has been wired through the
transfer switch. The OFF position
generally is not used, as a switch in the
OFF position removes the furnace circuit
both from generator and utility power
Wired Flexible Conduit Whip
Contains two hot, one neutral and one ground wire
required to make connections between the furnace
transfer switch and the furnace circuit breaker in
your load center. Each wire is color-coded for easy
identification. Conduit and fittings not supplied on
This light is powered by the generator
only
