Element Manager User’s Manual Nimbra OneSerie Product Overview • 13
©2006 Net Insight AB, All rights reserved
Figure 2. Nimbra 340
About the Nimbra 600 series
Nimbra 600 series is a multi-service core switch for demanding video and data
applications. Currently, there is only one switch in this series, the Nimbra 680.
Nimbra 680 features 40 Gbps switching capacity, redundant switch planes and
control modules, and has 12 slots for plug-in units. The Nimbra 600 series
switches can be equipped with the following interface modules:
Trunk modules:
1 x OC-192/STM-64
4 x OC-48/ STM-16
4 x OC-12/ STM-4
4 x OC-3/ STM-1

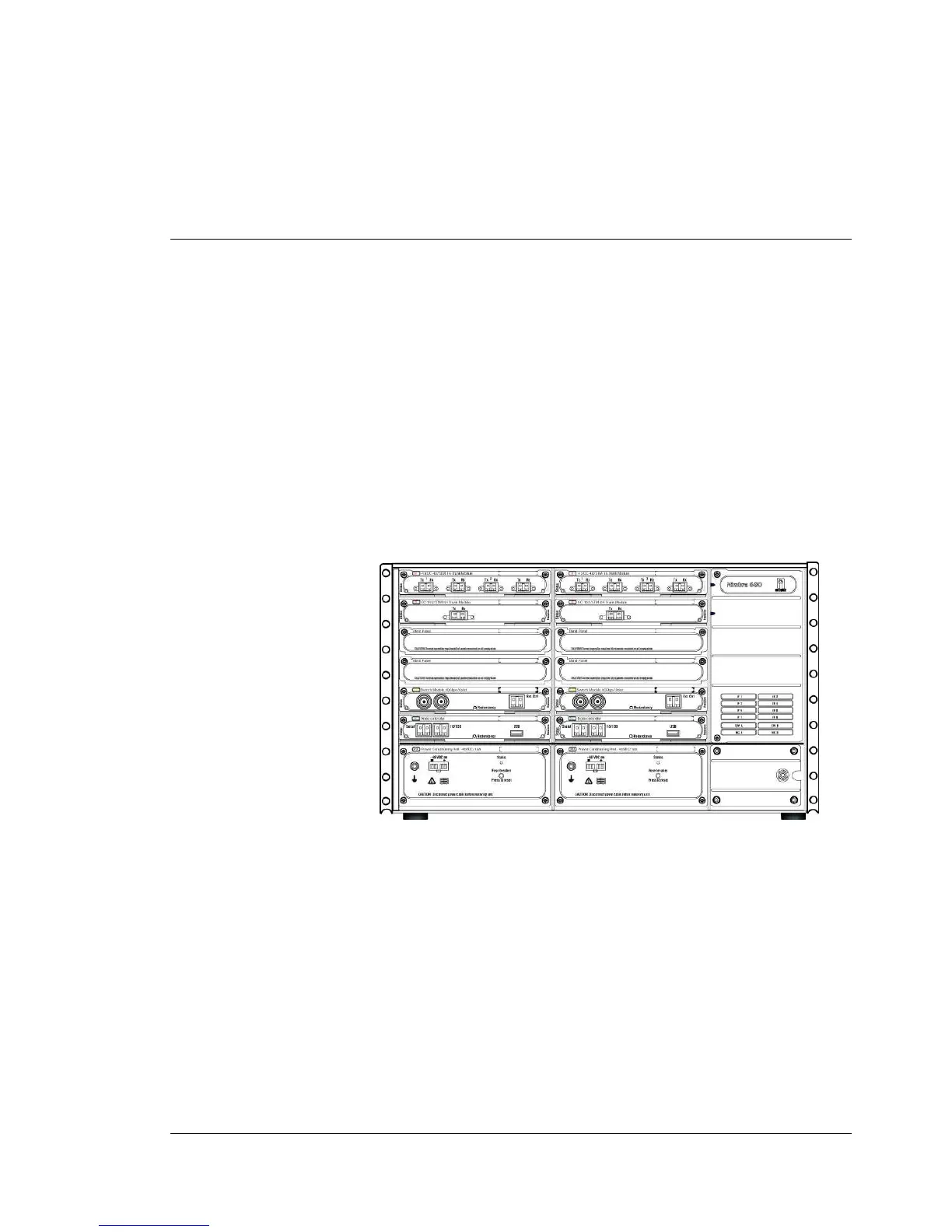

Figure 3. Nimbra 680 configuration example

Net Insight Nimbra One Specifications

General

Brand	Net Insight
Model	Nimbra One
Category	Switch
Language	English
