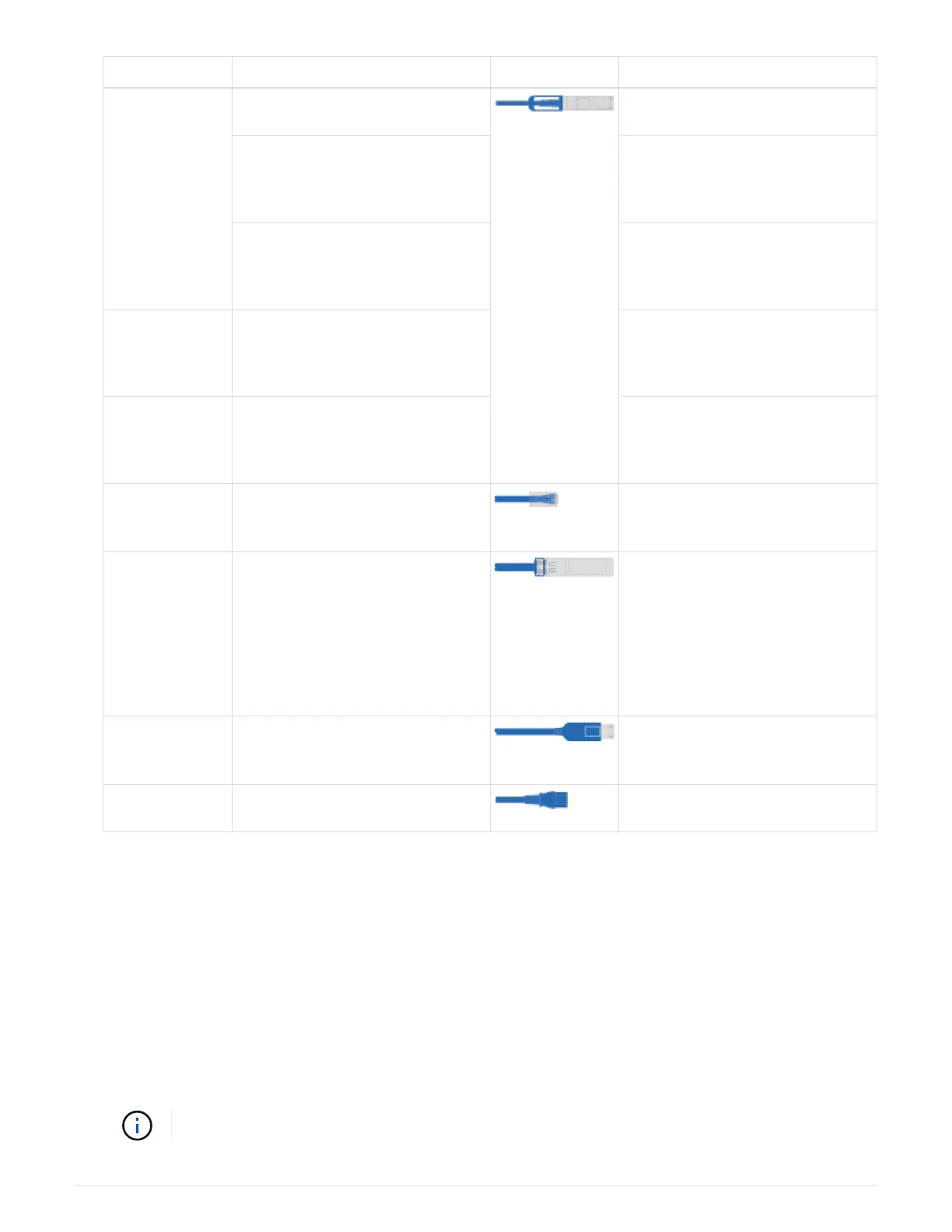

Connector type Part number and length Type of cable… For…
100 GbE cable X66211A-05 (112-00595), 0.5m HA interconnect
X66211A-05 (112-00595), 0.5m;
X66211-1 (112-00573), 1m
Cluster interconnect network
X66211-2 (112-00574), 2m;
X66211-5 (112-00576), 5m
Storage, Data
10 GbE cable X6566B-3-R6 (112-00300), 3m;
X6566B-5-R6 (112-00301), 5m
Data
25 GbE cable X66240A-2 (112-00598), 2m;
X66240A-5 (112-00600), 5m
Data
RJ-45 (order
dependent)
Not applicable Management
Fibre Channel X66250-2 (112-00342) 2m;
X66250-5 (112-00344) 5m;
X66250-15 (112-00346) 15m;
X66250-30 (112-00347) 30m
Micro-USB
console cable
Not applicable Console connection during
software setup
Power cables Not applicable Powering up the system
4. Download and complete the
Cluster Configuration Worksheet.
Step 2: Install the hardware
You need to install your system in a 4-post rack or NetApp system cabinet, as applicable.
Steps
1. Install the rail kits, as needed.
Installing SuperRail into a four-post rack
2. Install and secure your system using the instructions included with the rail kit.
You need to be aware of the safety concerns associated with the weight of the system.
