Step Perform on each controller module

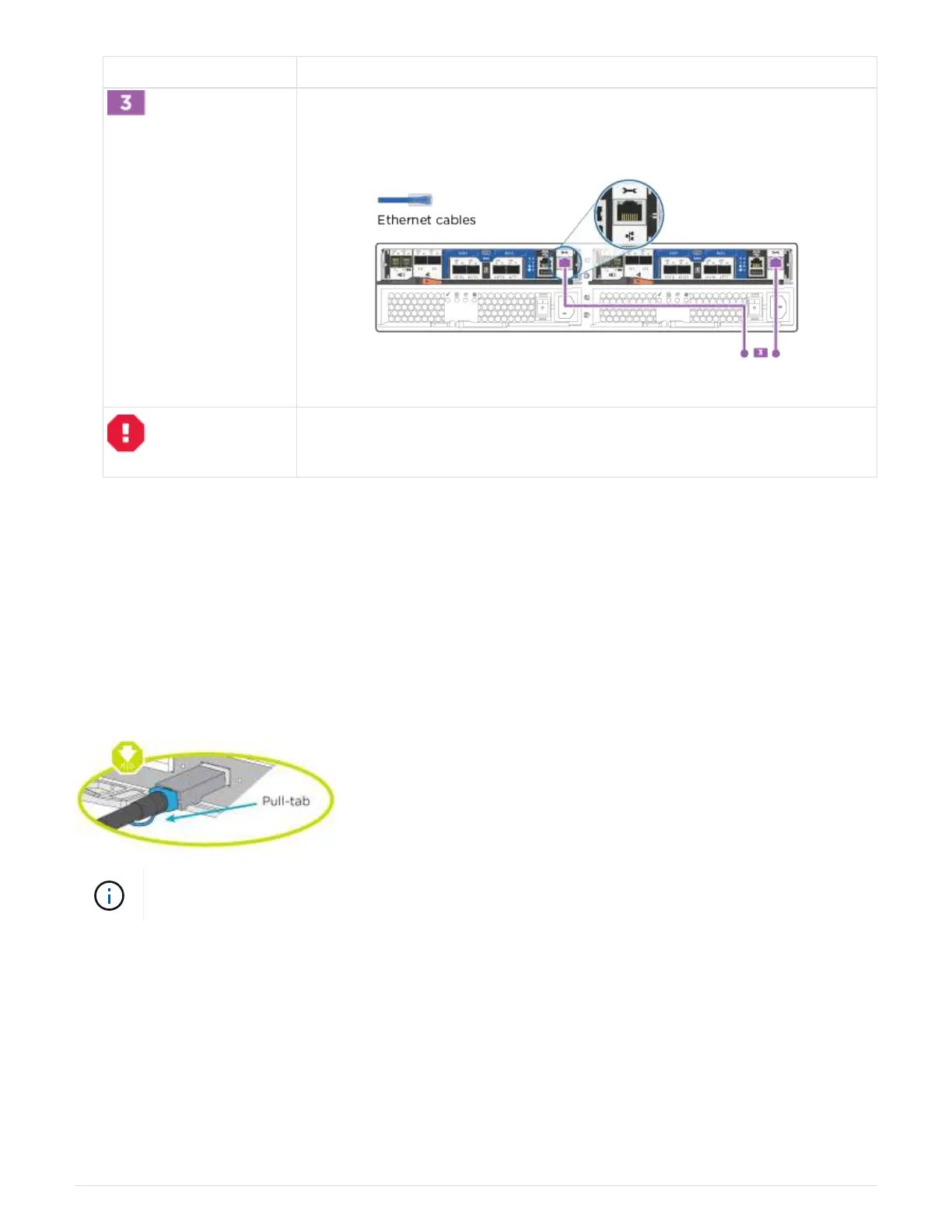

Cable the e0M ports to the management network switches with the RJ45

cables:

DO NOT plug in the power cords at this point.

2. To cable your storage, see

Cabling controllers to drive shelves

Option 3: Cable a two-node switchless cluster, Ethernet network configuration

Management network, Ethernet data network, and management ports on the controllers

are connected to switches. The cluster interconnect ports are cabled on both controllers.

You must have contacted your network administrator for information about connecting the system to the

switches.

Be sure to check the illustration arrow for the proper cable connector pull-tab orientation.

As you insert the connector, you should feel it click into place; if you do not feel it click, remove

it, turn it around and try again.

Steps

1. You can use the graphic or the step-by step instructions to complete the cabling between the controllers

and to the switches:
