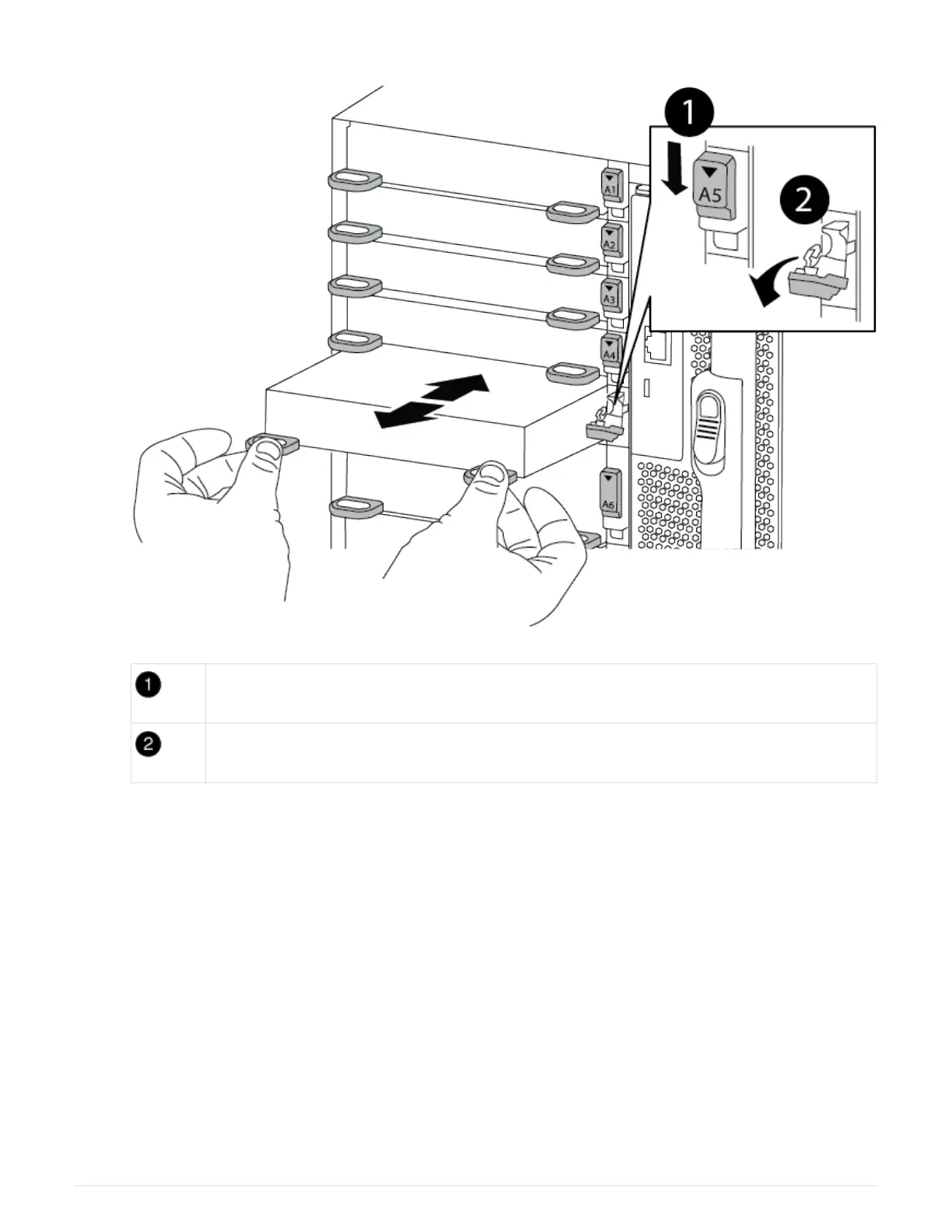

Lettered and numbered I/O cam latch
I/O cam latch completely unlocked
4. Set the I/O module aside.
5. Repeat the preceding step for the remaining I/O modules in the old chassis.
Step 5: Remove the De-stage Controller Power Module
You must remove the de-stage controller power modules from the old chassis in
preparation for installing the replacement chassis.
1. If you are not already grounded, properly ground yourself.
2. Press the terra cotta locking button on the module handle, and then slide the DCPM module out of the
chassis.
Animation — Remove/install DCPM
