Locking tabs
Slide air duct toward back of controller
Rotate air duct up
a. Press the locking tabs on the sides of the air duct in toward the middle of the controller module.
b. Slide the air duct toward the back of the controller module, and then rotate it upward to its completely
open position.

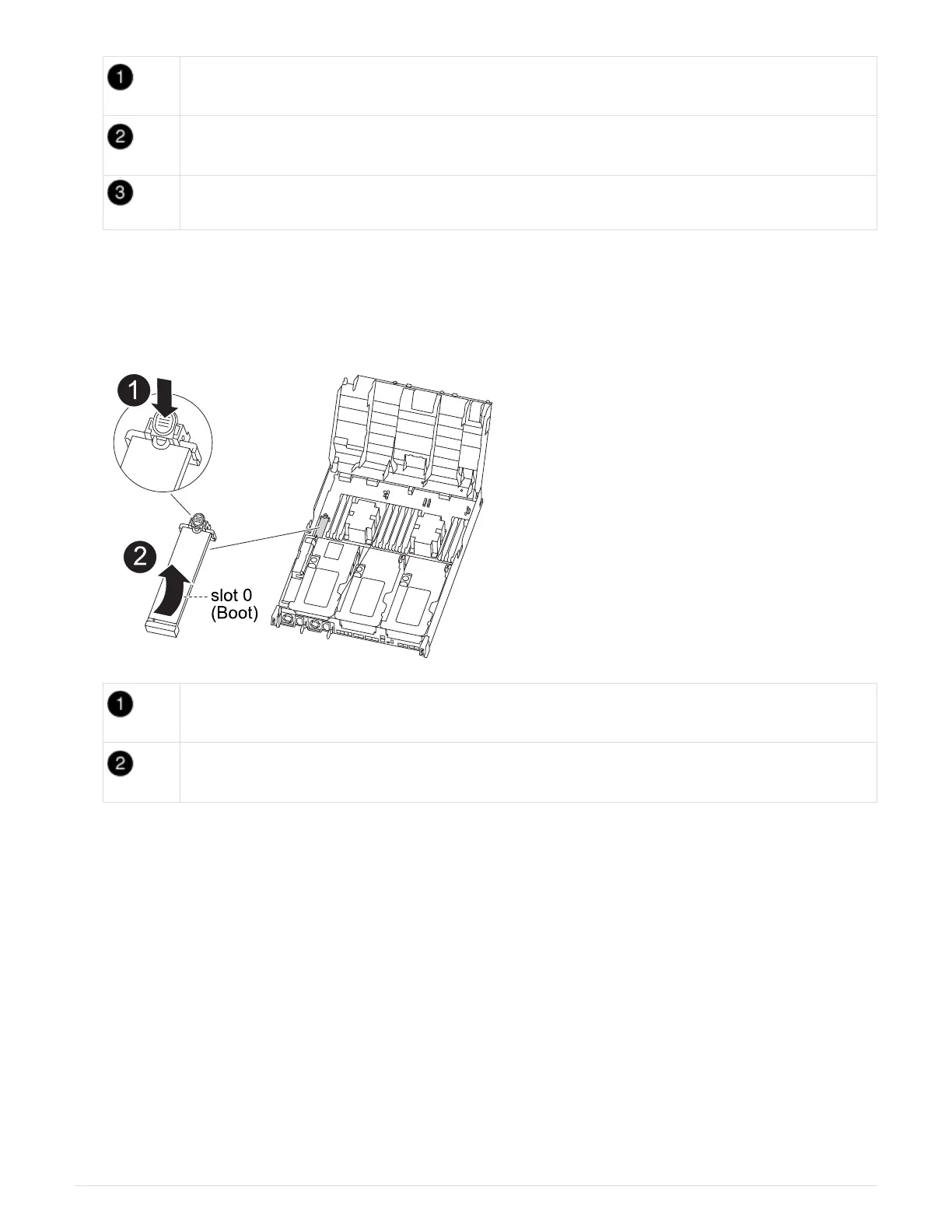

2. Locate and remove the boot media from the controller module:
Press blue button
Rotate boot media up and remove from socket
a. Press the blue button at the end of the boot media until the lip on the boot media clears the blue button.
b. Rotate the boot media up and gently pull the boot media out of the socket.
3. Align the edges of the replacement boot media with the boot media socket, and then gently push it into the
socket.
4. Check the boot media to make sure that it is seated squarely and completely in the socket.
If necessary, remove the boot media and reseat it into the socket.
5. Lock the boot media in place:
a. Rotate the boot media down toward the motherboard.
b. Placing a finger at the end of the boot media by the blue button, push down on the boot media end to
engage the blue locking button.
c. While pushing down on the boot media, lift the blue locking button to lock the boot media in place.
