Controller moves slightly out of chassis
6. Slide the controller module out of the chassis.
Make sure that you support the bottom of the controller module as you slide it out of the chassis.
7. Place the controller module on a stable, flat surface.
8. On the replacement controller module, open the air duct and remove the empty risers from the controller
module using the animation, illustration, or the written steps:
Animation - Remove the empty risers from the replacement controller module

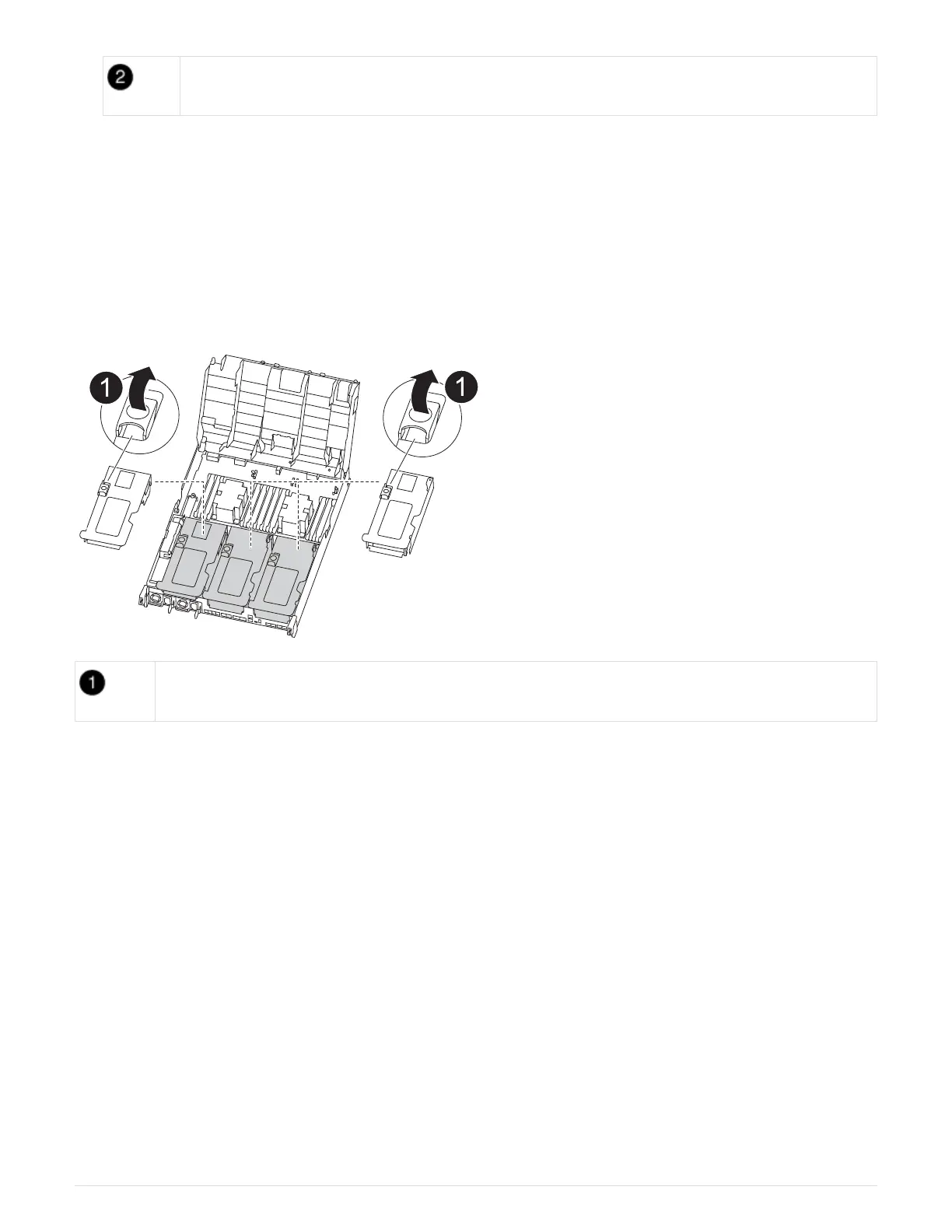

Riser release latches
a. Press the locking tabs on the sides of the air duct in toward the middle of the controller module.
b. Slide the air duct toward the back of the controller module, and then rotate it upward to its completely open
position.
c. Rotate the riser locking latch on the left side of riser 1 up and toward air duct, lift the riser up, and then set it
aside.
d. Repeat the previous step for the remaining risers.
Step 2: Move the power supplies
You must move the power supply from the impaired controller module to the replacement controller module
when you replace a controller module.
You can use the following animation, illustration, or the written steps to move the power supplies to the
replacement controller module.
Animation - Move the power supplies
1. Remove the power supply:
45
