Option 1: Cable a two-node switchless cluster
A controller module’s cluster interconnect and HA ports are cabled to its partner controller module. The
optional data ports, optional NIC cards, and management ports on the controller modules are connected
to switches.
Before you begin
You must have contacted your network administrator for information about connecting the system to the
switches.
About this task
Be sure to check the direction of the cable pull-tabs when inserting the cables in the ports. Cable pull-tabs
are up for all onboard ports and down for expansion (NIC) cards.
As you insert the connector, you should feel it click into place; if you do not feel it click,
remove it, turn it around and try again.
Steps

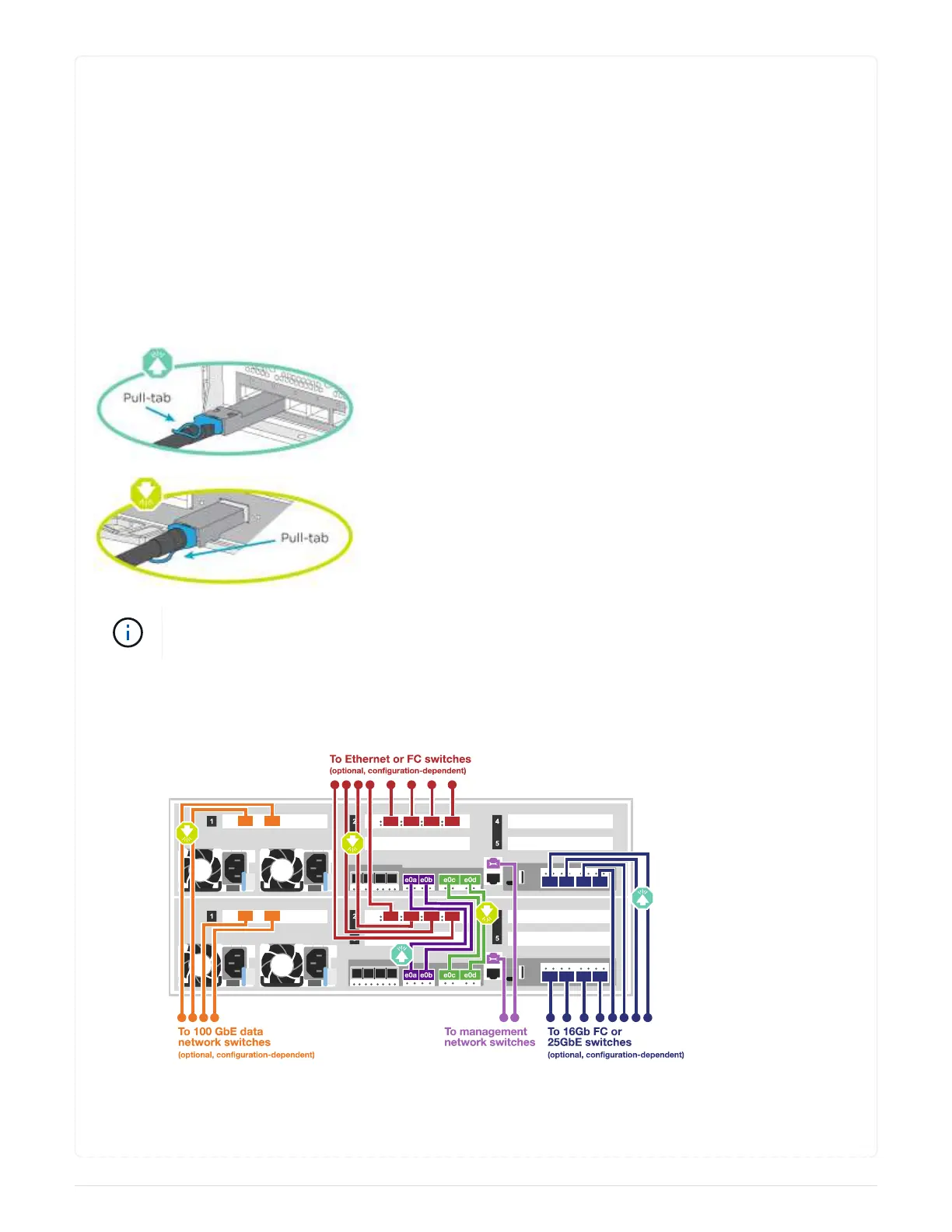

1. Use the illustration to complete the cabling between the controllers and the switches:
2. Go to Step 4: Cable controllers to drive shelves for drive shelf cabling instructions.
