Option 1: Cable a two-node switchless cluster
A controller module’s cluster interconnect and HA ports are cabled to its partner controller module.
The optional data ports, optional NIC cards, and management ports on the controller modules are
connected to switches.
Before you begin
You must have contacted your network administrator for information about connecting the system to
the switches.
About this task

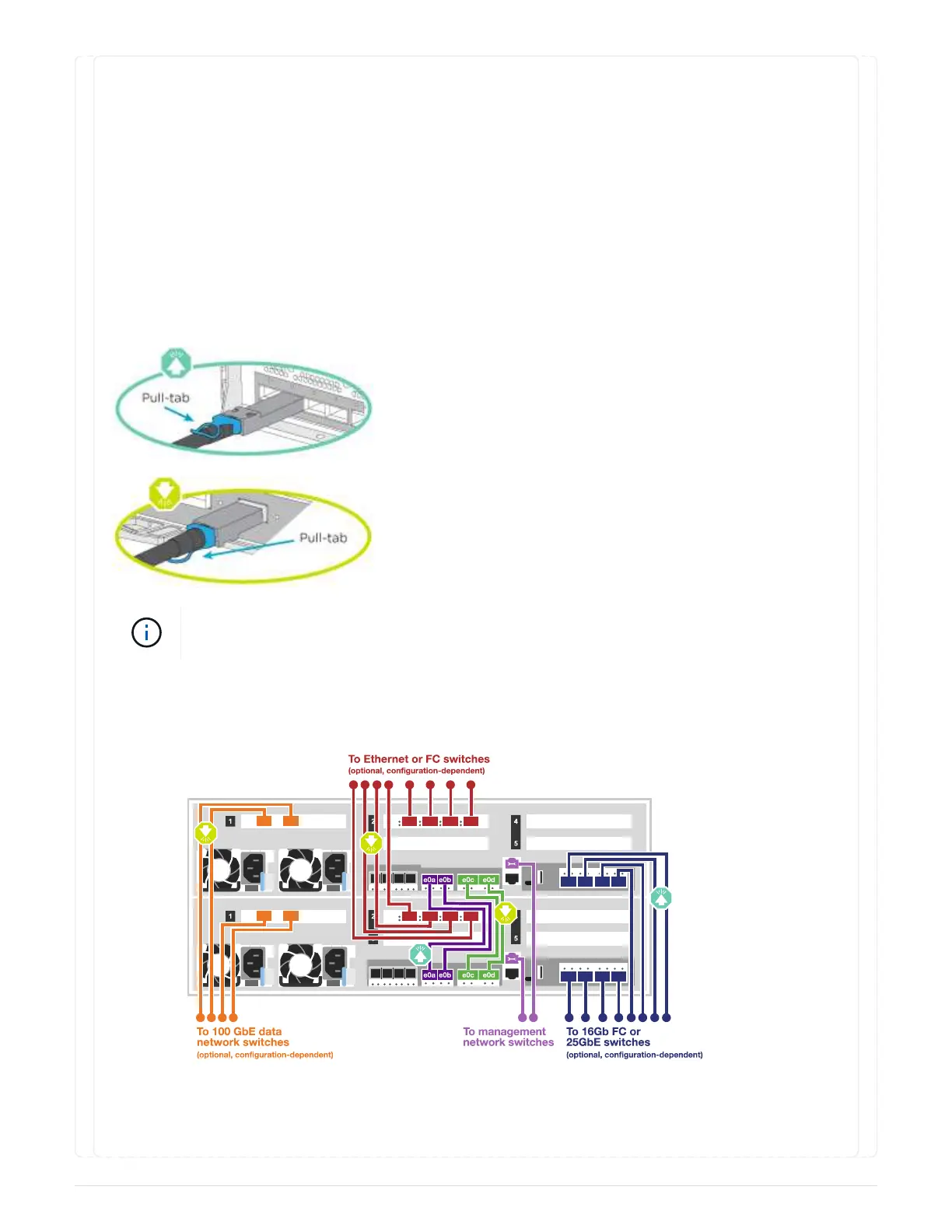

Be sure to check the direction of the cable pull-tabs when inserting the cables in the ports. Cable
pull-tabs are up for all onboard ports and down for expansion (NIC) cards.
As you insert the connector, you should feel it click into place; if you do not feel it click,
remove it, turn it around and try again.
Steps
1. Use the illustration to complete the cabling between the controllers and the switches:
2. Go to [Step 4: Cable controllers to drive shelves] for drive shelf cabling instructions.
Option 2: Cable a switched cluster
