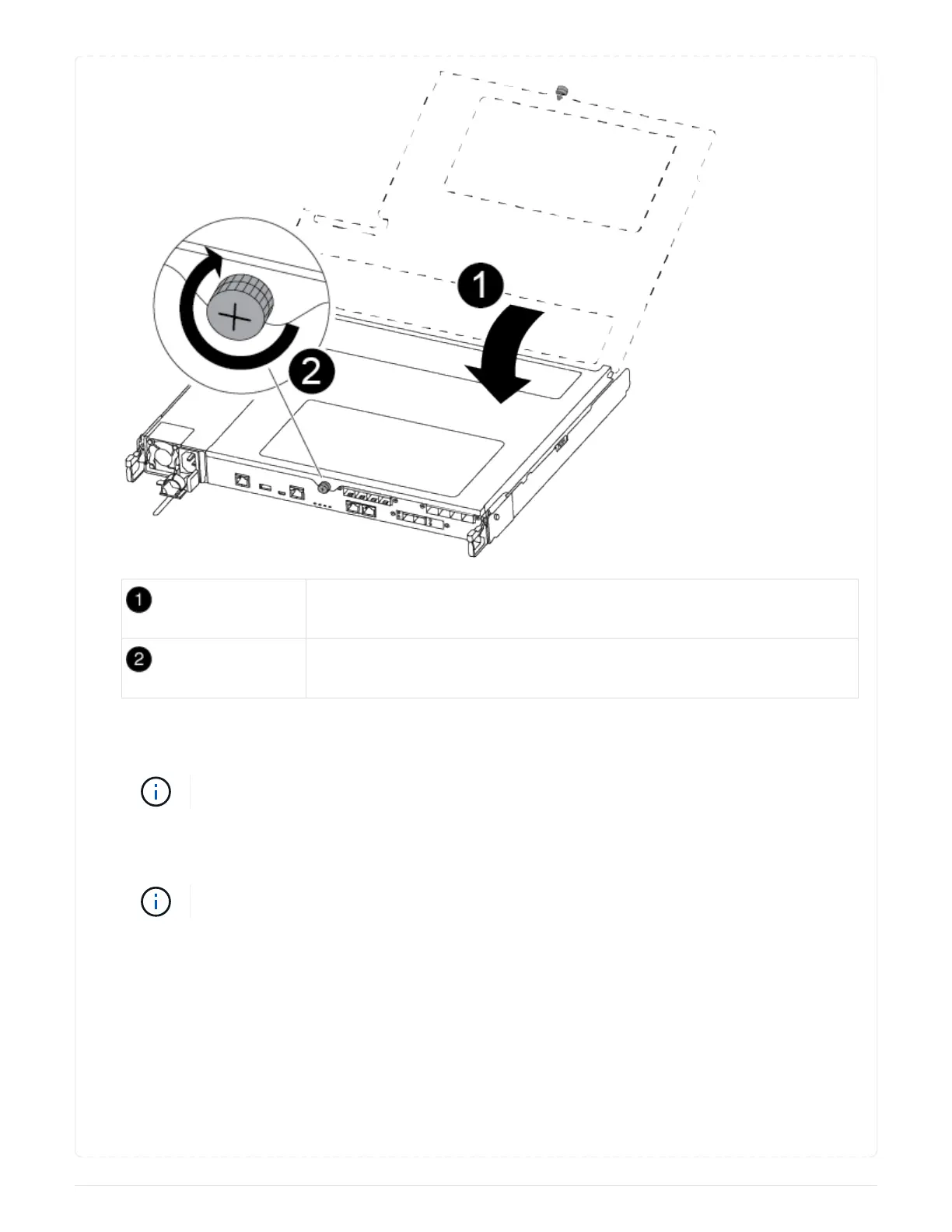

Controller module cover
Thumbscrew
3. Align the end of the controller module with the opening in the chassis, and then gently push the
controller module halfway into the system.
Do not completely insert the controller module in the chassis until instructed to do so.
4. Cable the management and console ports only, so that you can access the system to perform the
tasks in the following sections.
You will connect the rest of the cables to the controller module later in this procedure.
5. Insert the controller module into the chassis:
6. Ensure the latching mechanism arms are locked in the fully extended position.
7. Using both hands, align and gently slide the controller module into the latching mechanism arms until
it stops.
8. Place your index fingers through the finger holes from the inside of the latching mechanism.
9. Press your thumbs down on the orange tabs on top of the latching mechanism and gently push the
controller module over the stop.
10. Release your thumbs from the top of the latching mechanisms and continue pushing until the latching
