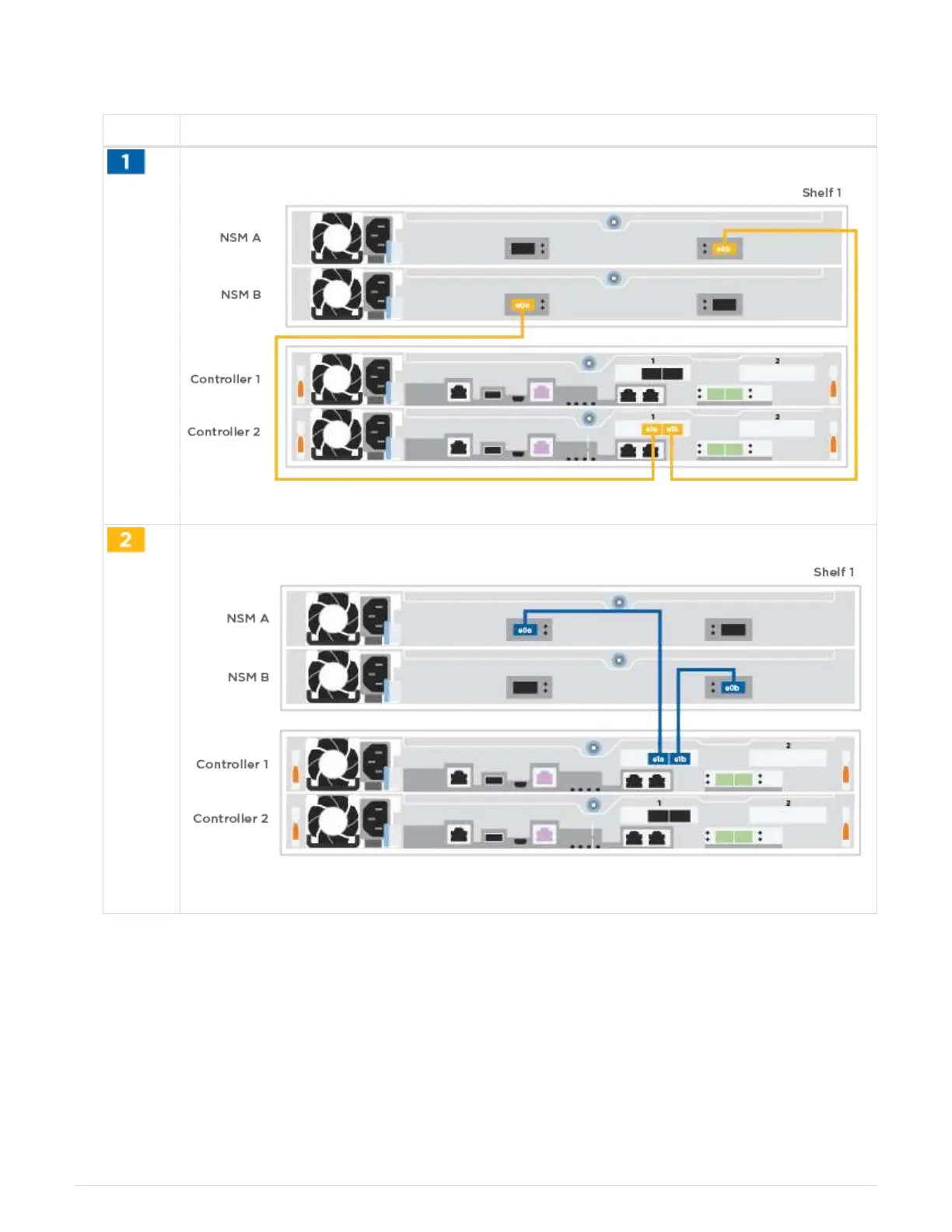

1. Use the animation (Cabling the controllers to a single NS224) or the step-by-step instructions to cable your
controller modules to a single shelf.
Step Perform on each controller module
Cable controller A to the shelf:
Cable controller B to the shelf:
2. To complete setting up your system, see Step 4: Complete system setup and configuration.
Step 4: Complete system setup and configuration
Complete the system setup and configuration using cluster discovery with only a connection to the switch and
laptop, or by connecting directly to a controller in the system and then connecting to the management switch.
Option 1: Complete system setup and configuration if network discovery is enabled
If you have network discovery enabled on your laptop, you can complete system setup and configuration using
automatic cluster discovery.
