NetApp FAS User Manual

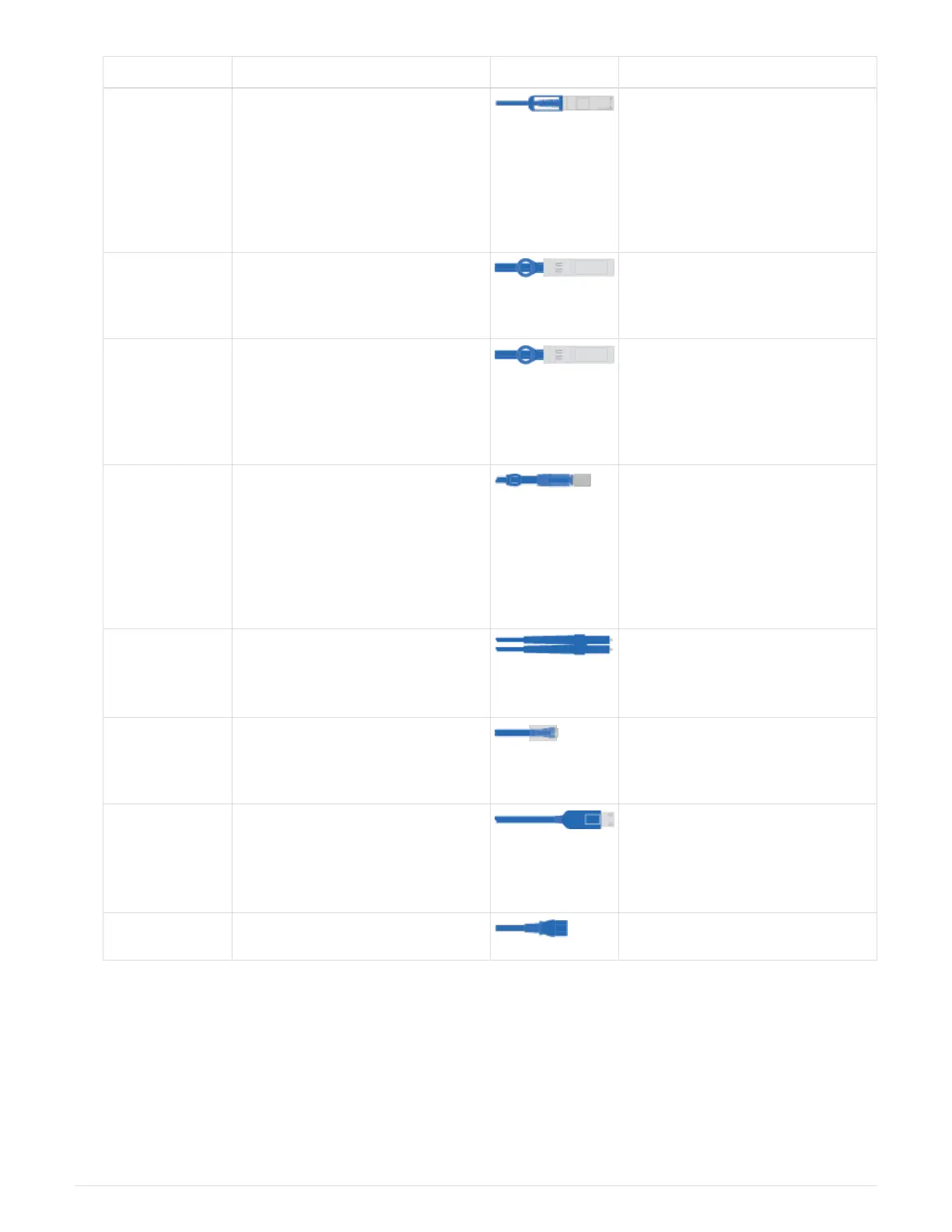

Type of cable… Part number and length Connector type For…
100 GbE cable
(QSF(28)
X66211A-05 (112-00595), 0.5m
X66211A-1 (112-00573), 1m
X66211A-2 (112-00574), 2m
X66211A-5 (112-00574), 5m
Storage, cluster interconnect/HA,
and Ethernet data (order-
dependent)
25 GbE cable
(SFP28s)
X66240-2 (112-00598), 2m
X66240-5 (112-00639), 5m
GbE network connection (order-
dependent)
32 Gb FC
(SFP+ Op)
X66250-2 (112-00342), 2m
X66250-5 (112-00344), 5m
X66250-15 (112-00346), 15m
FC network connection
Storage Cables X66030A (112-00435), .5m
X66031A (112-00436), 1m
X66032A (112-00437), 2m
X66033A (112-00438), 3m
mini-SAS HD to mini-SAS HD
cables (order-dependent)
Optical cables X66250-2-N-C (112-00342) 16 Gb FC or 25GbE cables for
mezzanine cards (order-
dependent)
RJ-45 (order
dependent)
X6585-R6 (112-00291), 3m
X6562-R6 (112-00196), 5m
Management network
Micro-USB
console cable
Not applicable Console connection used during
software setup if laptop or console
does not support network
discovery.
Power cables Not applicable Powering up the system
4. Review the NetApp ONTAP Confiuration Guide and collect the required information listed in that guide.
ONTAP Configuration Guide
Step 2: Install the hardware
You need to install your system in a 4-post rack or NetApp system cabinet, as applicable.
