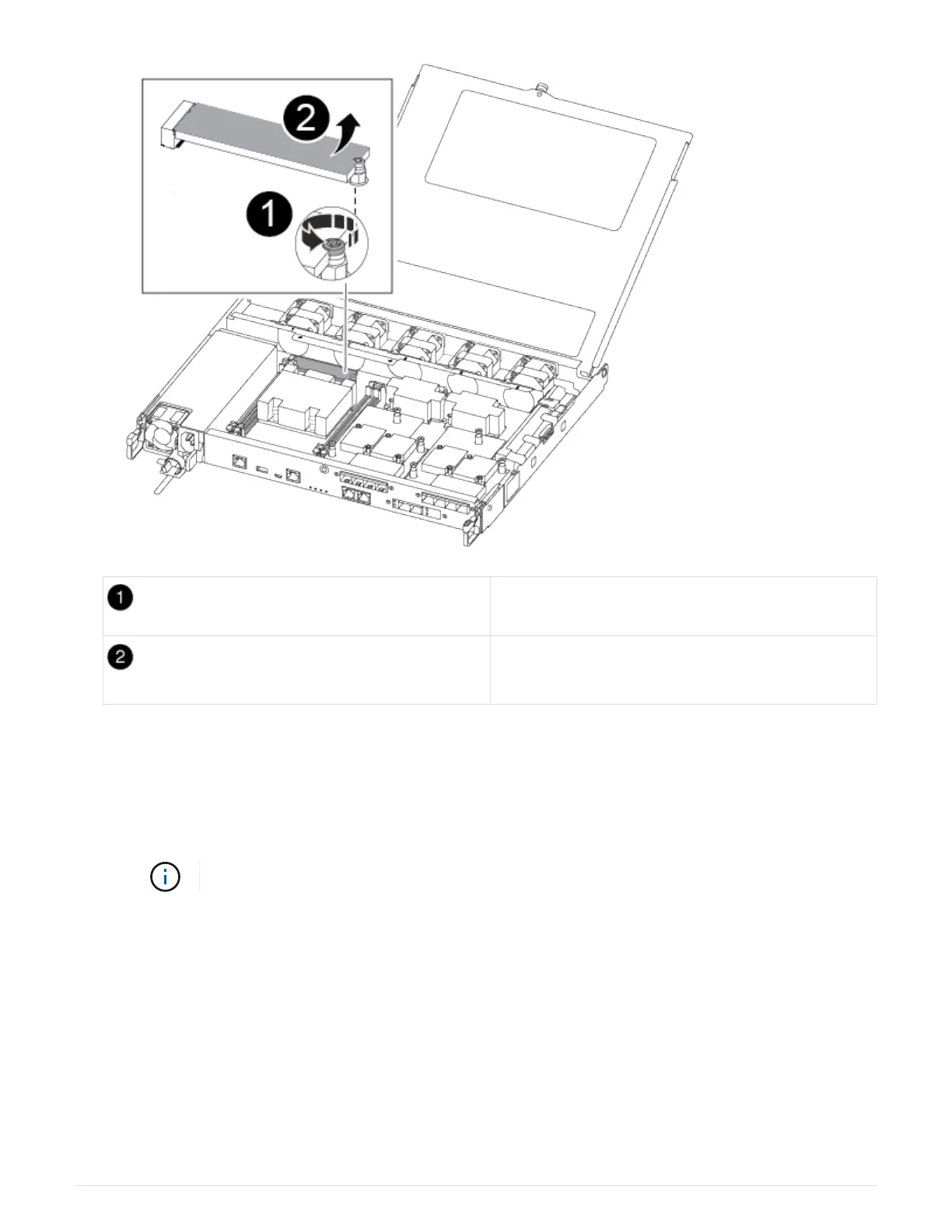

Remove the screw securing the boot media to the
motherboard in the impaired controller module.
Lift the boot media out of the impaired controller
module.
a. Using the #1 magnetic screwdriver, remove the screw from the boot media, and set it aside safely on
the magnet.
b. Gently lift the boot media directly out of the socket and align it into place in the replacement controller
module.
c. Using the #1 magnetic screwdriver, insert and tighten the screw on the boot media.
Do not apply force when tightening the screw on the boot media; you might crack it.
Step 5: Move the DIMMs
To move the DIMMs, locate and move them from the impaired controller into the
replacement controller and follow the specific sequence of steps.
+
image::../media/drw_a250_dimm_replace.png[]
+
IMPORTANT: Install each DIMM into the same slot it occupied in the impaired controller module.
