Step 8: Install the controller module
After all of the components have been moved from the impaired controller module to the
replacement controller module, you must install the replacement controller module into
the chassis, and then boot it to Maintenance mode.

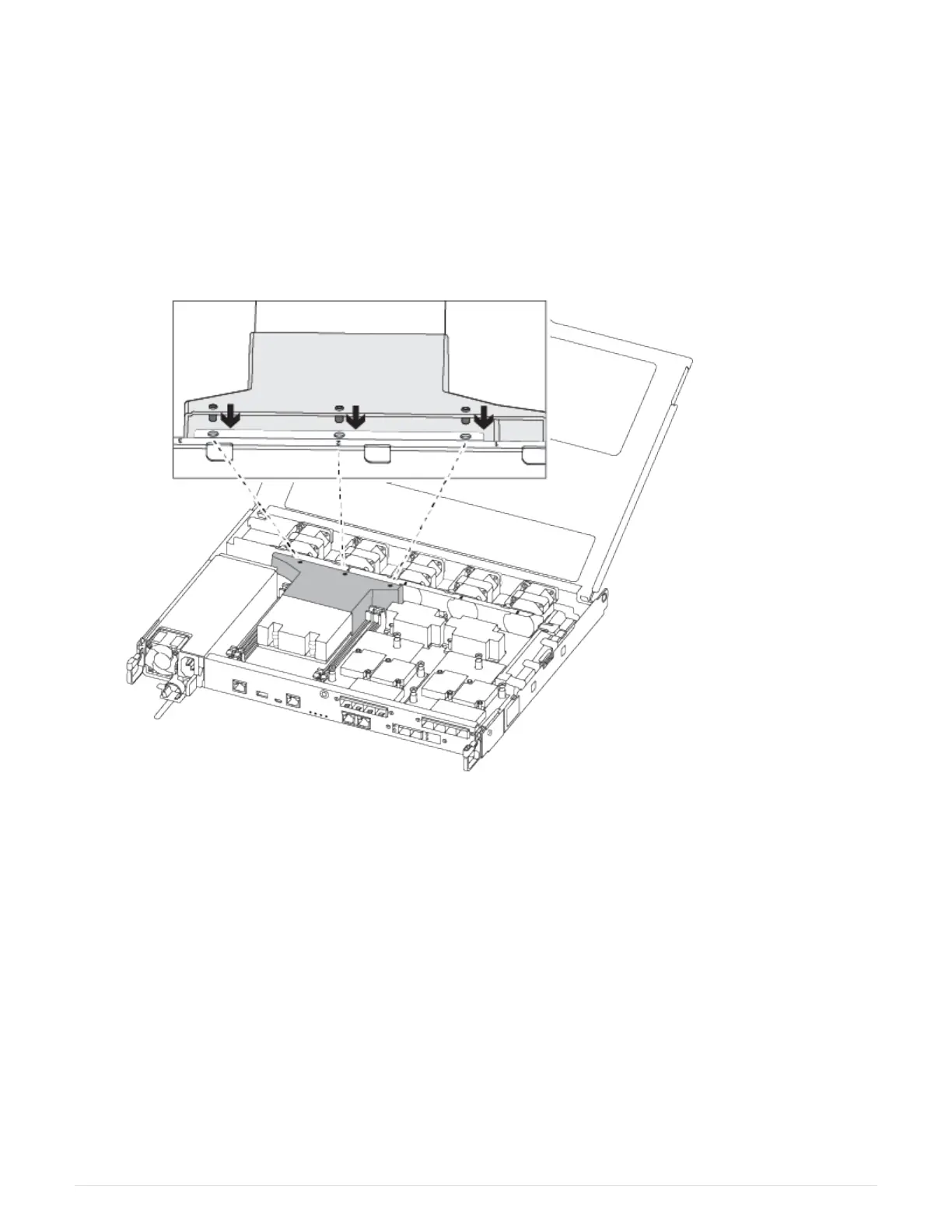

You can use the following illustration or the written steps to install the replacement controller module in the
chassis.
1. If you have not already done so, install the air duct.
2. Close the controller module cover and tighten the thumbscrew.
47
