Steps

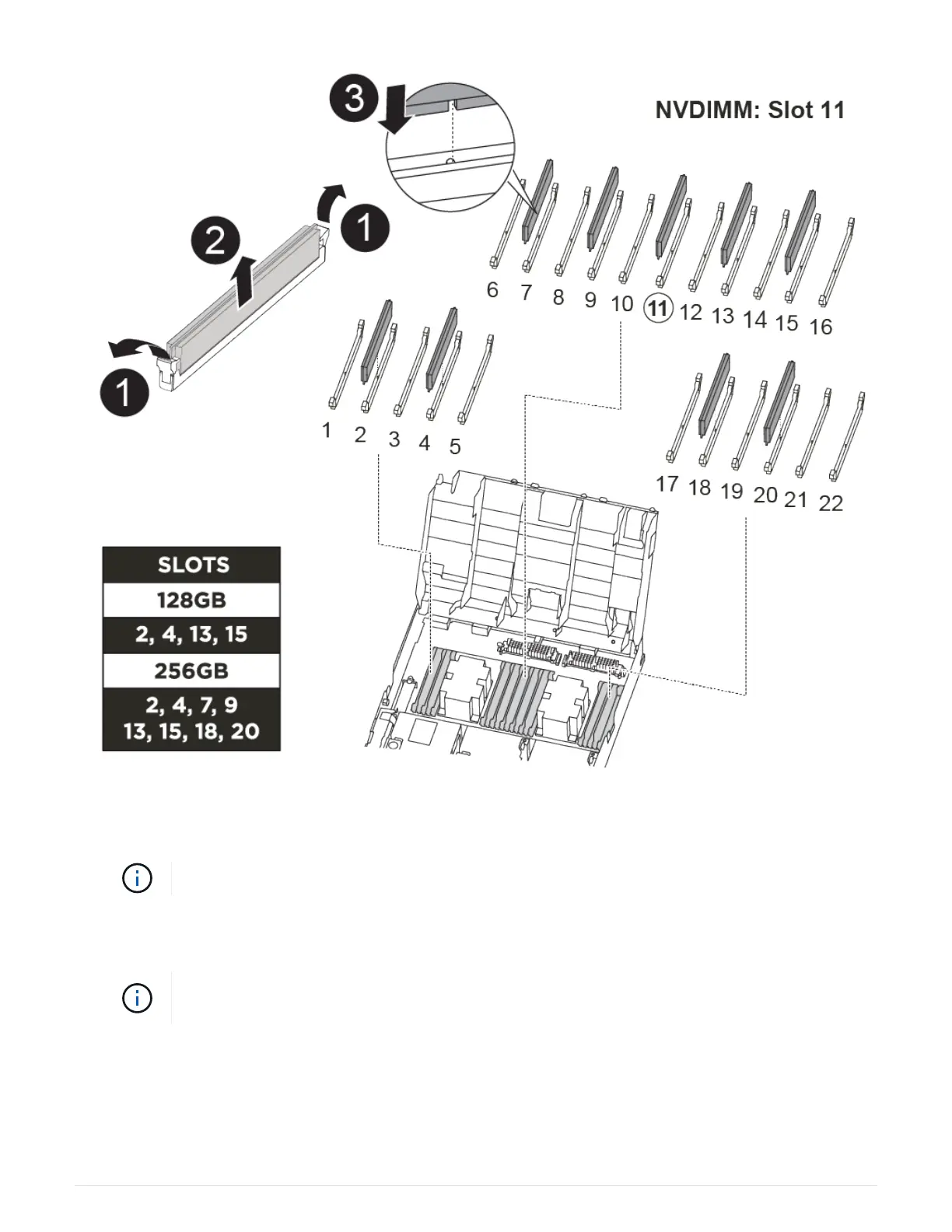

1. Open the air duct and then locate the NVDIMM in slot 11 on your controller module.
The NVDIMM looks significantly different than system DIMMs.
2. Eject the NVDIMM from its slot by slowly pushing apart the two NVDIMM ejector tabs on either side of the
NVDIMM, and then slide the NVDIMM out of the socket and set it aside.
Carefully hold the NVDIMM by the edges to avoid pressure on the components on the
NVDIMM circuit board.
3. Remove the replacement NVDIMM from the antistatic shipping bag, hold the NVDIMM by the corners, and
then align it to the slot.
The notch among the pins on the NVDIMM should line up with the tab in the socket.
518
