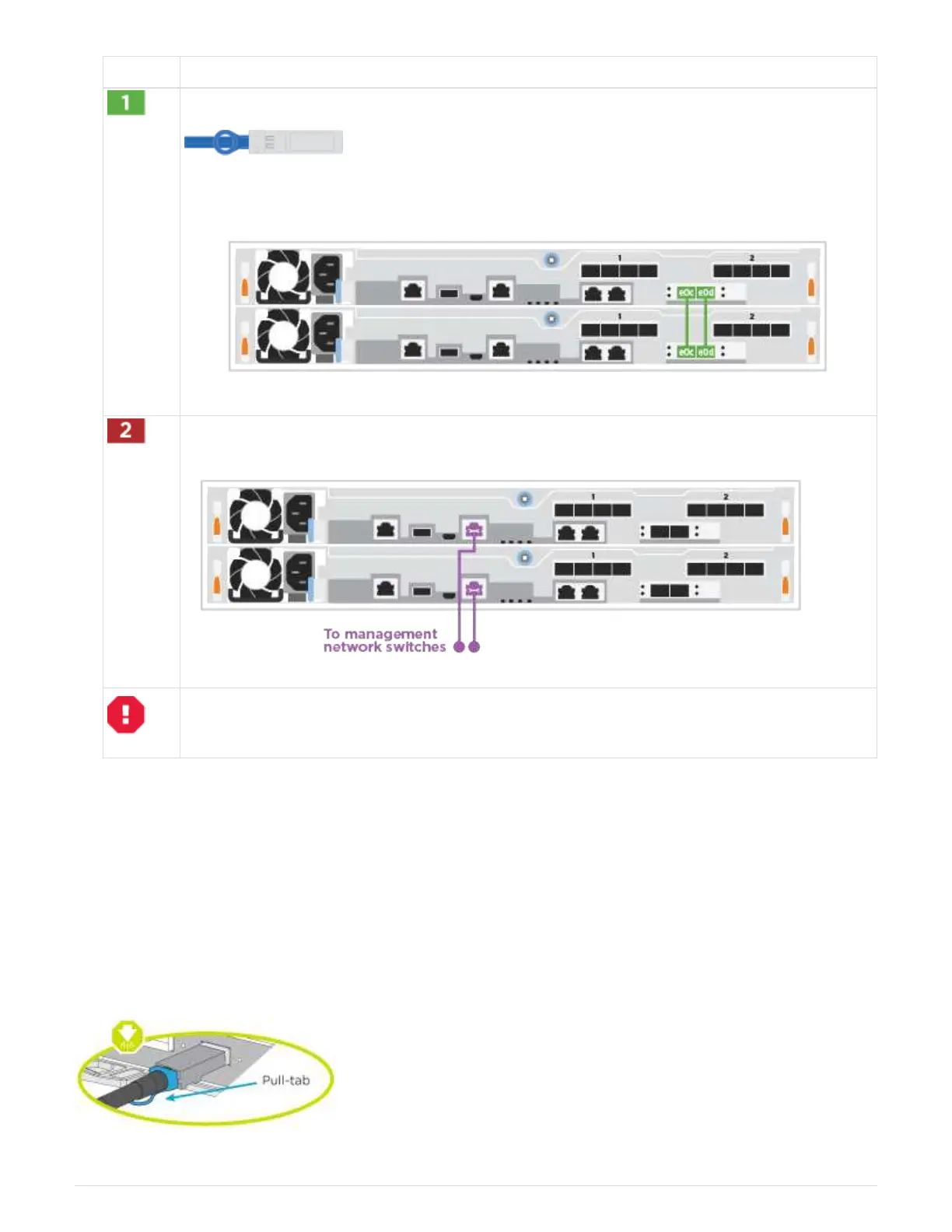

Step Perform on each controller
Cable the cluster interconnect ports to each other with the 25GbE cluster interconnect cable
:
• e0c to e0c
•
e0d to e0d
Cable the wrench ports to the management network switches with the RJ45 cables.
DO NOT plug in the power cords at this point.
2. To complete setting up your system, see
Step 4: Complete system setup and configuration.
Option 2: Cable a switched cluster
All ports on the controllers are connected to switches; cluster interconnect, management, Fibre Channel, and
data or host network switches.
Before you begin
Contact your network administrator for information about connecting the system to the switches.
Be sure to check the illustration arrow for the proper cable connector pull-tab orientation.
