Do not apply force when tightening the screw on the mezzanine card; you might crack it.
10. Insert any SFP or QSFP modules that were removed from the impaired mezzanine card to the replacement
mezzanine card.
Option 2: Install a mezzanine card:
You install a new mezzanine card if your system does not have one.
. Using the #1 magnetic screwdriver, remove the screws from the face of the controller module and the
faceplate covering the mezzanine card slot, and set them aside safely on the magnet.
. Remove the mezzanine card from the antistatic shipping bag and align it to the inside face of the controller
module.
. Gently align the mezzanine card into place.
. Using the #1 magnetic screwdriver, insert and tighten the screws on the face of the controller module and on
the mezzanine card.
+
NOTE: Do not apply force when tightening the screw on the mezzanine card; you might crack it.
Step 4: Reinstall the controller module
After you replace a component within the controller module, you must reinstall the controller module in the
system chassis and boot it.

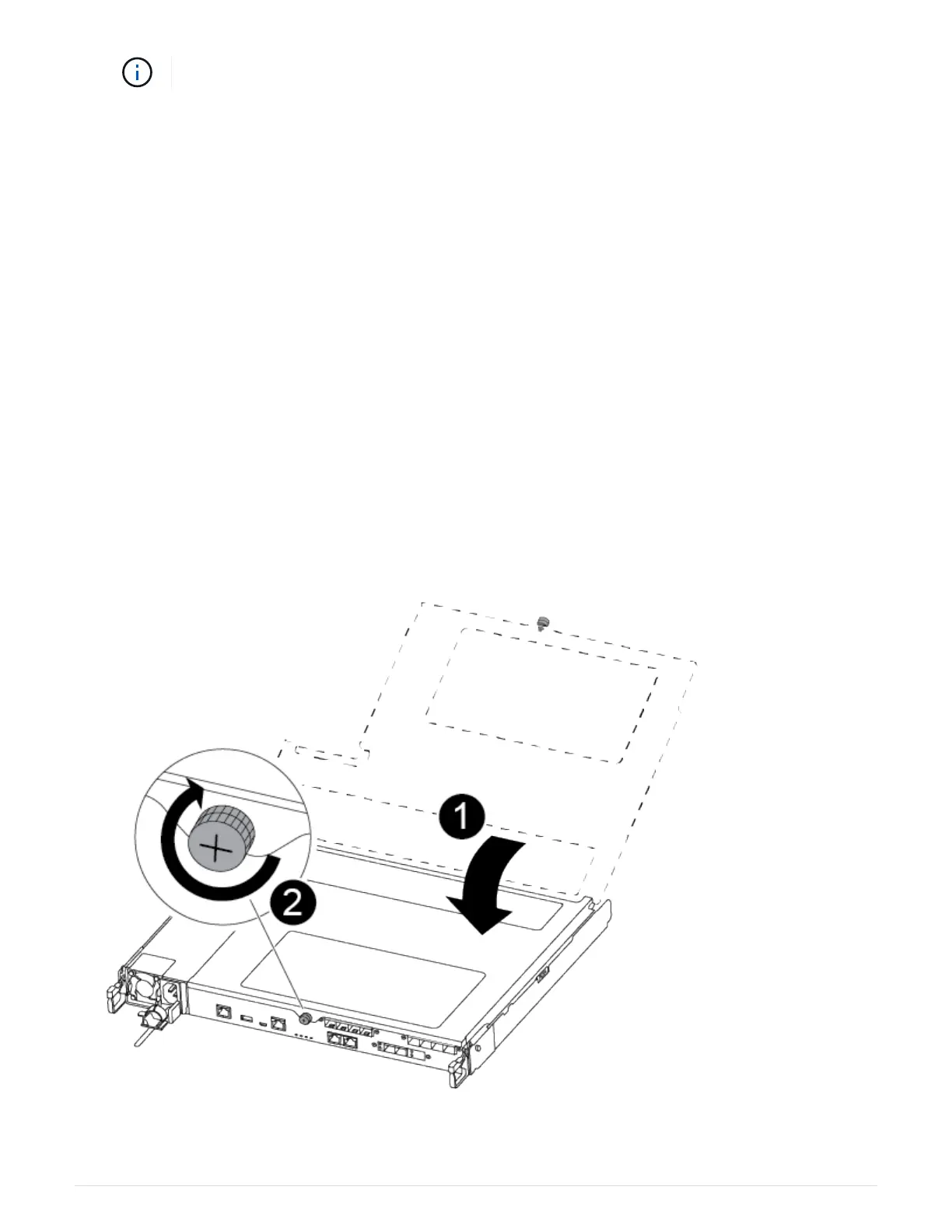

1. Close the controller module cover and tighten the thumbscrew.
