N300 Wireless Router with USB WNR2200 User Manual
Getting to Know Your Wireless Router 1-4
v1.0, May 2011
The WLAN and WPS switch buttons toggle the WLAN and WPS functions on and off.

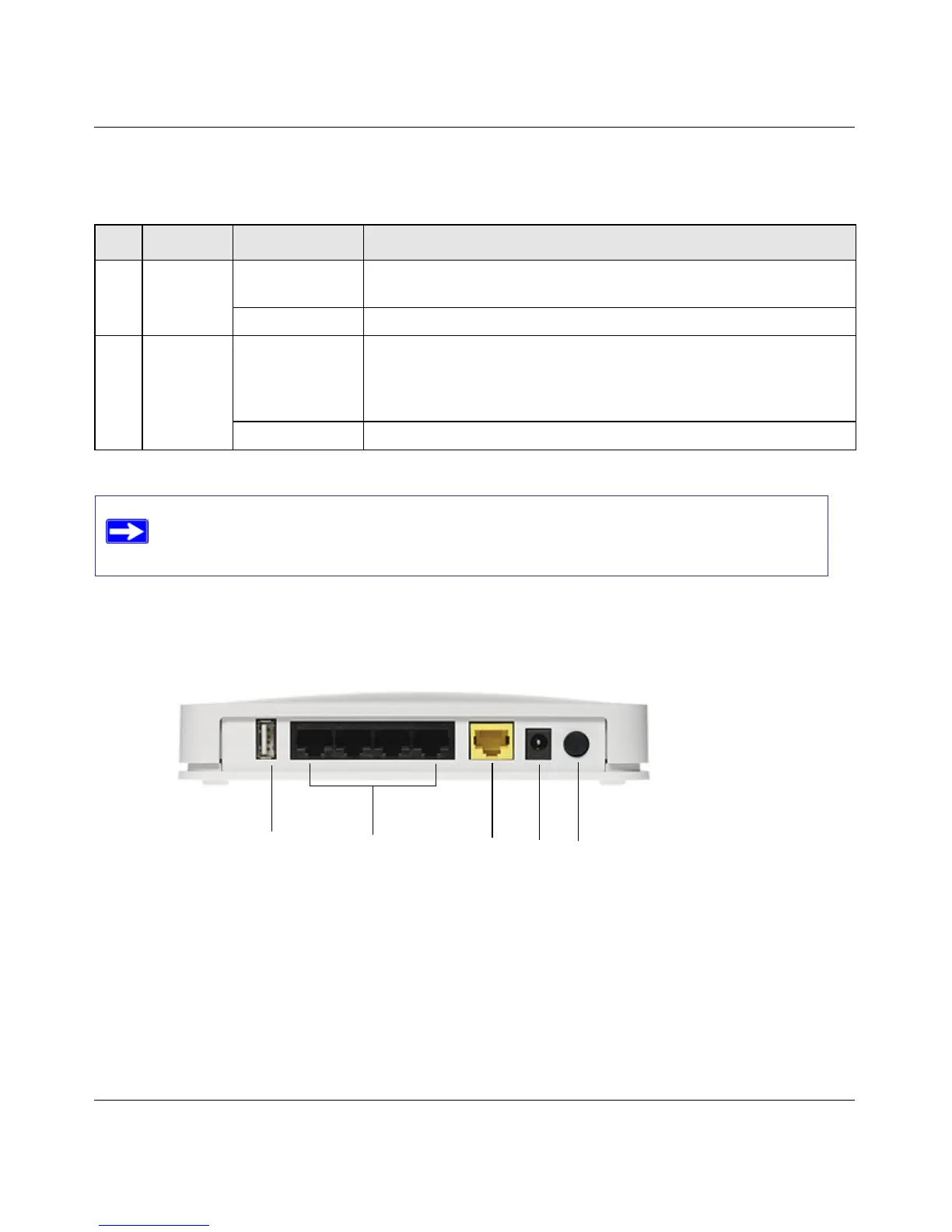

Back Panel
The rear panel of the WNR2200 router contains the items in the list that follows the figure.
The back of the wireless router includes:
1. A USB 2.0 port (backward compatible to USB 1.0/1.1) for attaching a USB storage device and
a USB 3G dongle.
2. Four local (LAN) 10/100 Mbps Ethernet ports for connecting the router to local computers.
Table 1-2. Switch Button Descriptions
Item Function Activity Description
5.
WLAN
On/Off
On Pressing the wireless LAN button turns on the 2.4 GHz wireless
radio, indicated by light below the wireless LAN being lit.
Off The 2.4 GHz wireless radio is off, and its LED is turned off.
6.
WPS
On/Off
On The WPS function is turned on, indicated by the light below the WPS
button being lit.
Before turning on the WPS button, be sure that the WLAN button is
on. If the wireless radio is off, the WPS will not work.
Off The WPS function is turned off.
Note: For more information on modes, see “Manually Configuring Your Wireless
Settings” on page 3-4.
Figure 1-3
1
2
3
4
5
