Neuson 12002 RD - Fuse box; Swinging and swiveling the excavator equipment

User manual

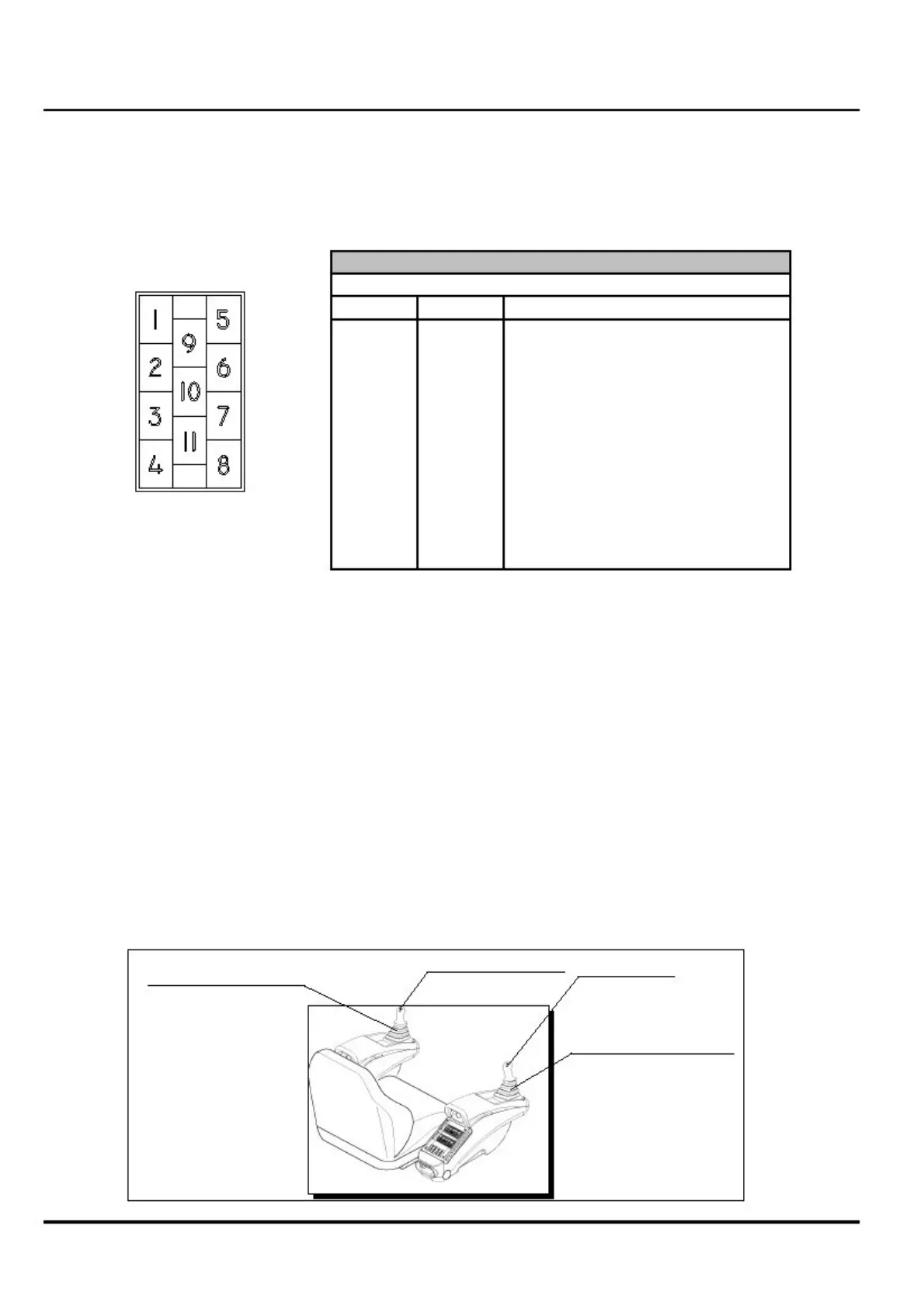

6.1 Fuse box
The fuses are integrated into the instrument
panel.
Order of fuses
Order of fuses 12002 RD
No.
1
2
3
4
5
6
7
8
9
10
11
Capacity (A)
7,5
10
25
20
10
15
30
15
10
20
15
Application
switch lights, controll lamps
anti thift device, engine relais
lights chassis, arm
heating van, clima, horn
armrest left, engine speed,
pumpregulation
windscreenwiper, cabin
stop solenoid, alternator
valves
option cabin
socket, refuelling pump
rotating light, cabin, anti thief device
The main fuse (50 amps) for the igniton and the glow plug is
located in
the relay box. Another main fuse (40 amps) is located in the right
control
console. This is the fuse for the light on the arm, the side work
lights and
the rear work lights (optional). The time relay fuses for the rear
work lights
(optional) and the main relays for the work lights are also located
in the
right control console.
7 Swinging and swiveling the excavator equipment
The excavating equipment is operated using the left and right
control
levers on the driver's seat console.
To operate the bucket stick and swivel the superstructure use the
left
control lever. The boom and bucket are operated using the right
control
lever.
Left control lever
Button for change-over
Speed control
Right control lever
9707672_user manual_en
- 36 -
